Preparation
• End fence (page 33)
• Drag roller unit (page 41)
Paper Height Sensor (TE)

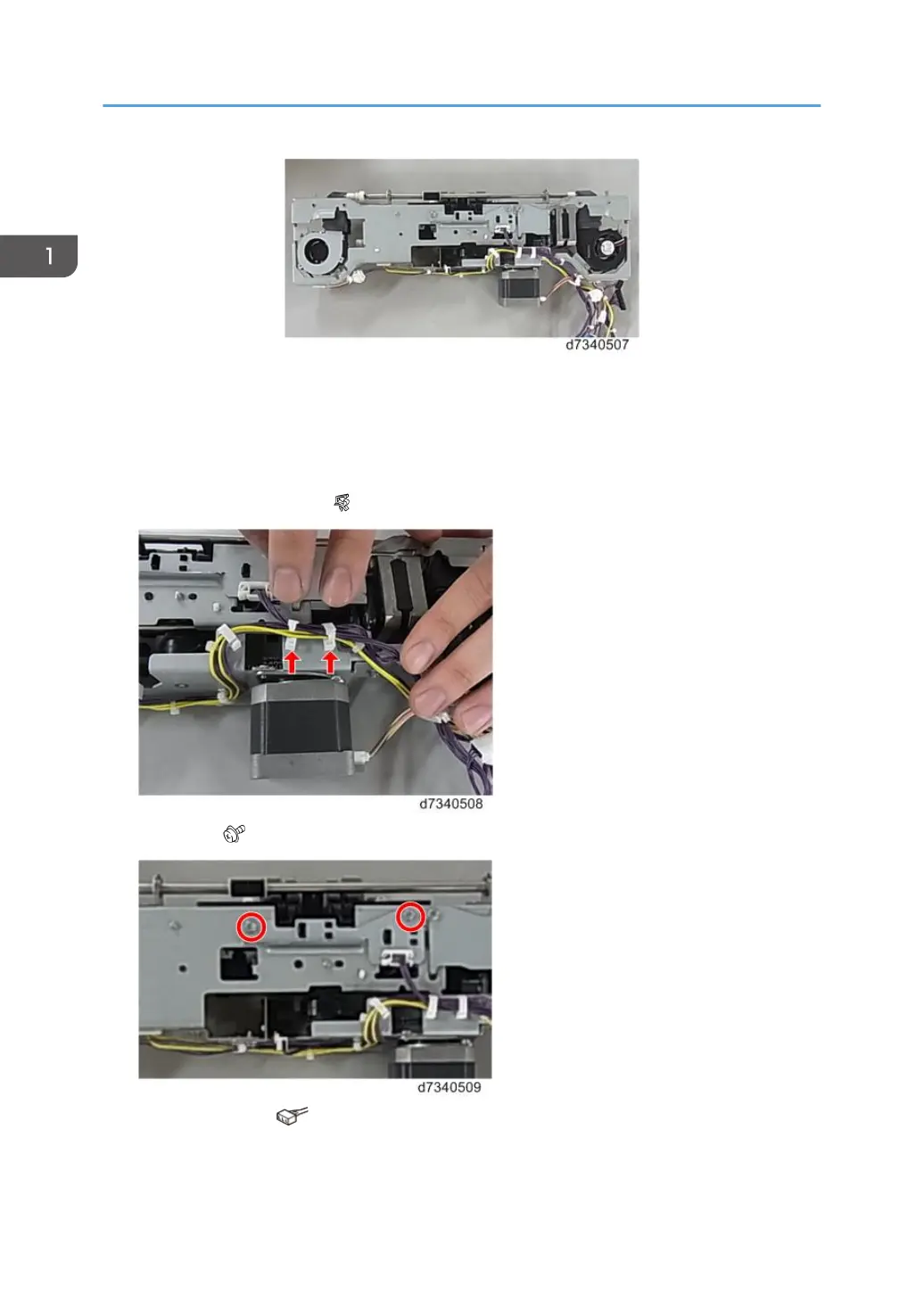

1. Open clamps above motor (
x2).
2. Disconnect ( x2).
3. Remove sensor [A] ( x1).
