Re-installation

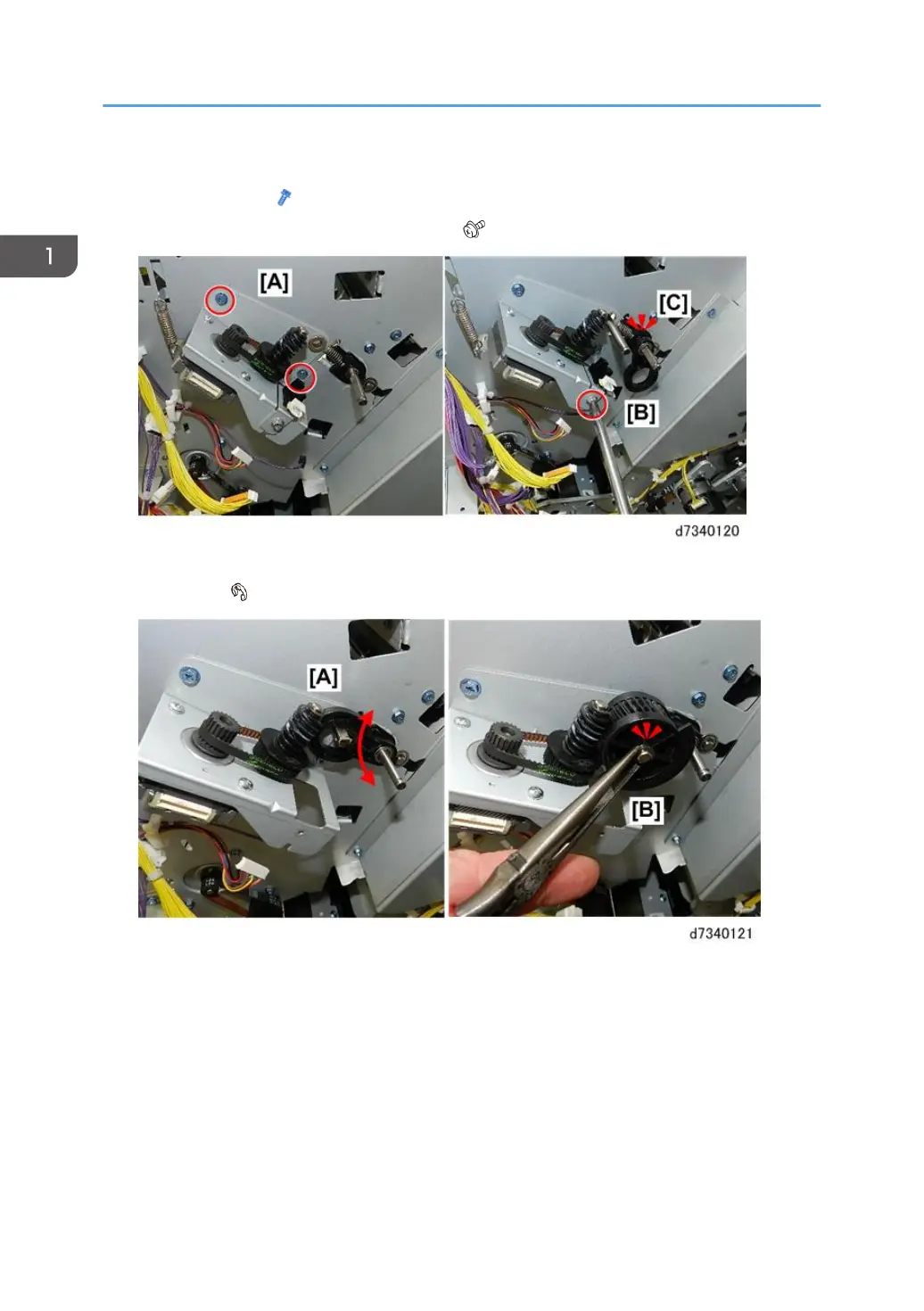

1. Attach bracket [A] ( x2).
2. Remove sensor bracket (with sensor attached) ( x1).
3. Set cam follower [A]. Make sure that it swings freely up and down.
4. Set the gear ( x1).
5. If the e-ring is difficult to set, check the cam follower at the front, and make sure that it and its
bushing are flat and snug against the front frame.
6. You may need to keep pressure on the shaft so it does not slip while attaching the e-ring at the rear.
