Time
Weight
RESET
Input
LEVEL
EDGE
PULSE
LATCH
Target
Hysteresis
On
Set
Flight
Off

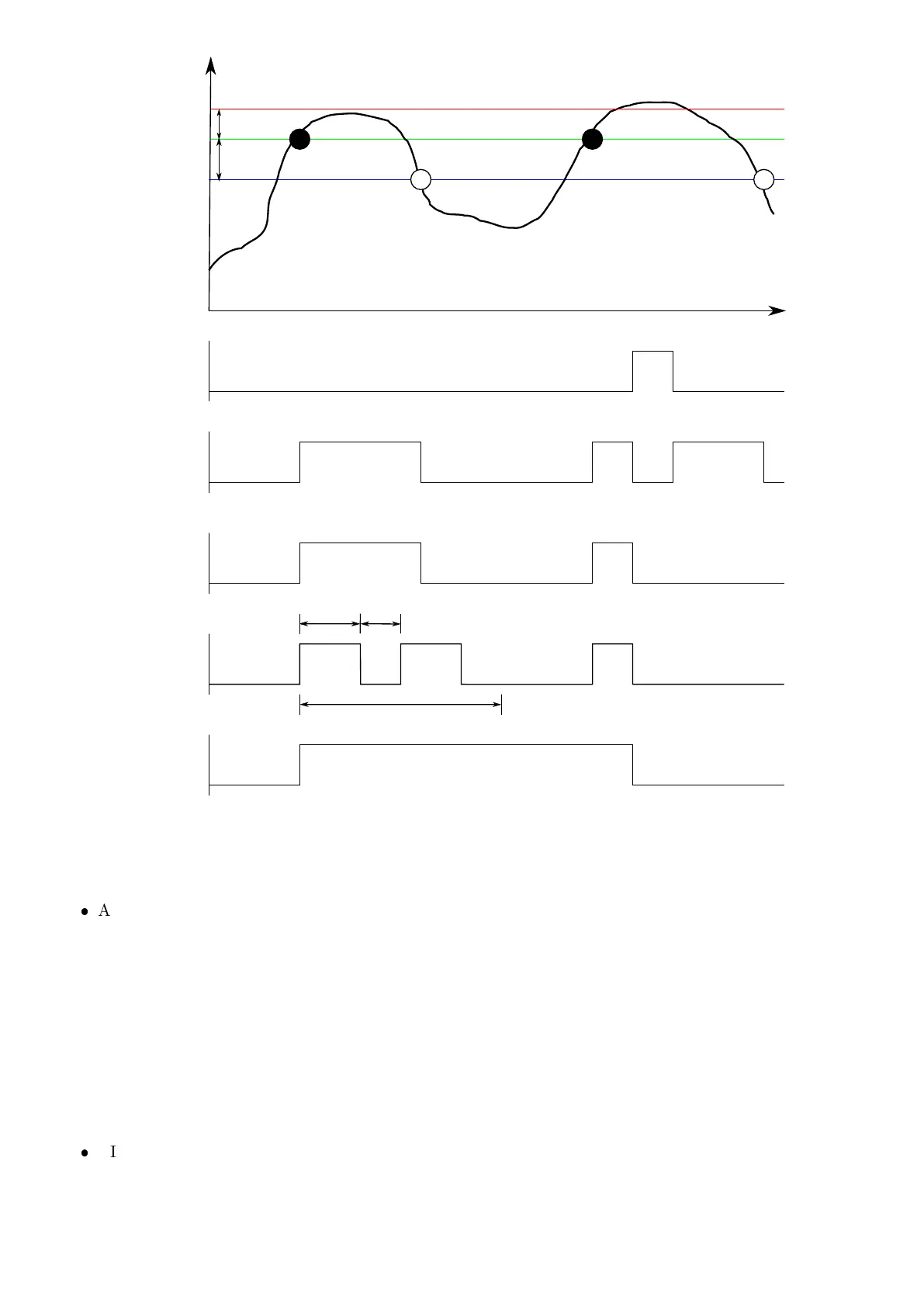

Figure 1: Comparison of output timing on Over setpoint
Note that the outputs revert to the off state when the instrument SETUP menus are active.
ALARM: Select what alarm response is triggered when the setpoint is active.
– SINGLE sounds a single beep every two seconds.
– DOUBLE sounds a double beep every two seconds.
– CONT beeps continually.
– FLASH flashes the display.
Note that the Alarm conditions are not influenced by the LOGIC setting, i.e. they follow the activity
of the setpoint regardless of the physical state of the output.
TIMING: Select the output timing of the setpoint. The following examples are explained in the context
of an OVER setpoint however the timing options are available for all setpoint types. See figure 1 on page
66 for further clarification. Options are:
– LEVEL: the setpoint is active whenever the weight has gone over the target, has not dropped below
66 C500-600-2.0.3
