51
Arming/Disarming Selected or All Partitions
1. Click the Partitions tab at the top of the screen; the following screen is
displayed.

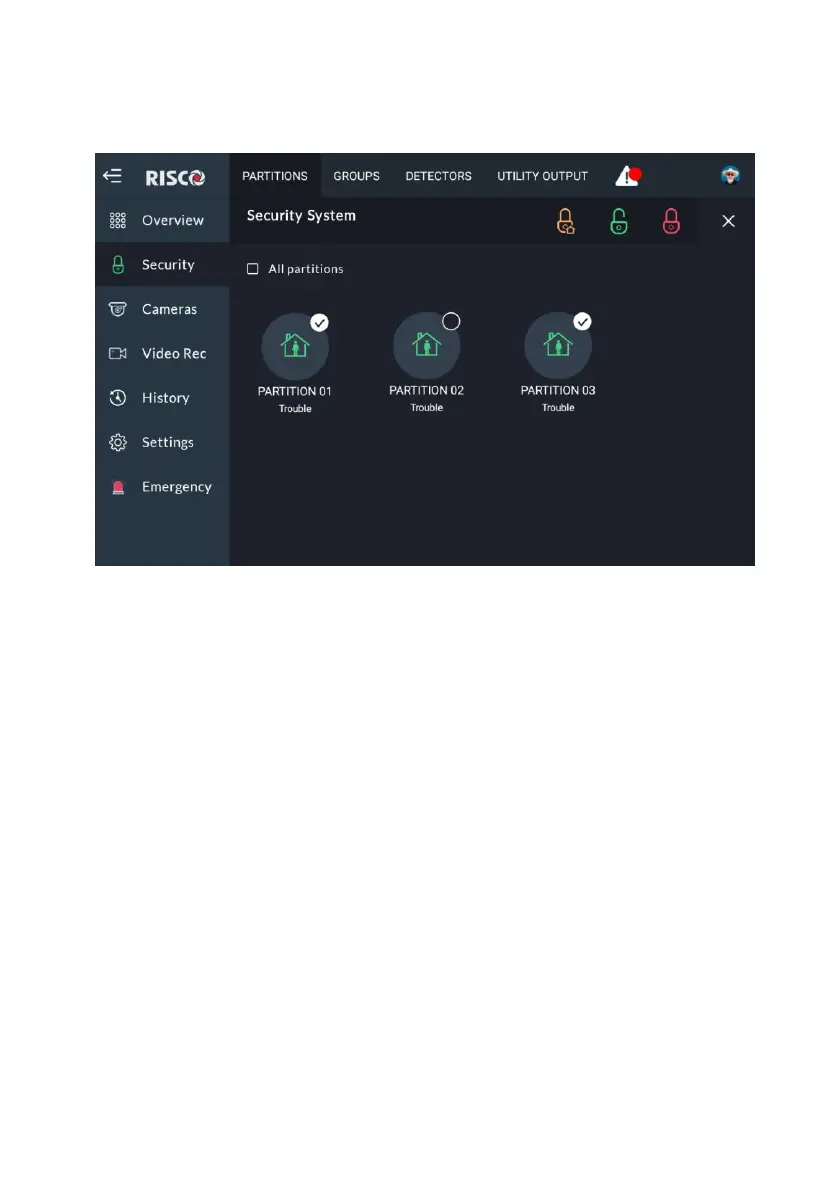

Figure 46: Selecting Multiple Partitions Screen
2. Click to select the partitions to be Armed or Disarmed; a “√” is added to the
partition icon
– or –
click the “All partitions” checkbox to select or unselect all the partitions.
3. Click the Full Arm/Stay Arm/Disarm Lock button, as required.
Groups
After selecting the relevant partitions to which a zone will belong (performed in
the previous section), you can now proceed to Groups. Groups are combined areas
(zones) that can be armed within a specific partition and that are used for partial
arming. There are up to 4 groups (A—D) maximum per partition. The user can arm
any of the four groups individually.
The Security →Groups screen displays the groups the user is associated with.
Note: If the user is not associated to any group, the screen will be blank.
There are four Group icon status indications, as follows:
• Green: Disarmed
• Orange: Part Arm
