6-64 Butt Line (BL) Station Locations

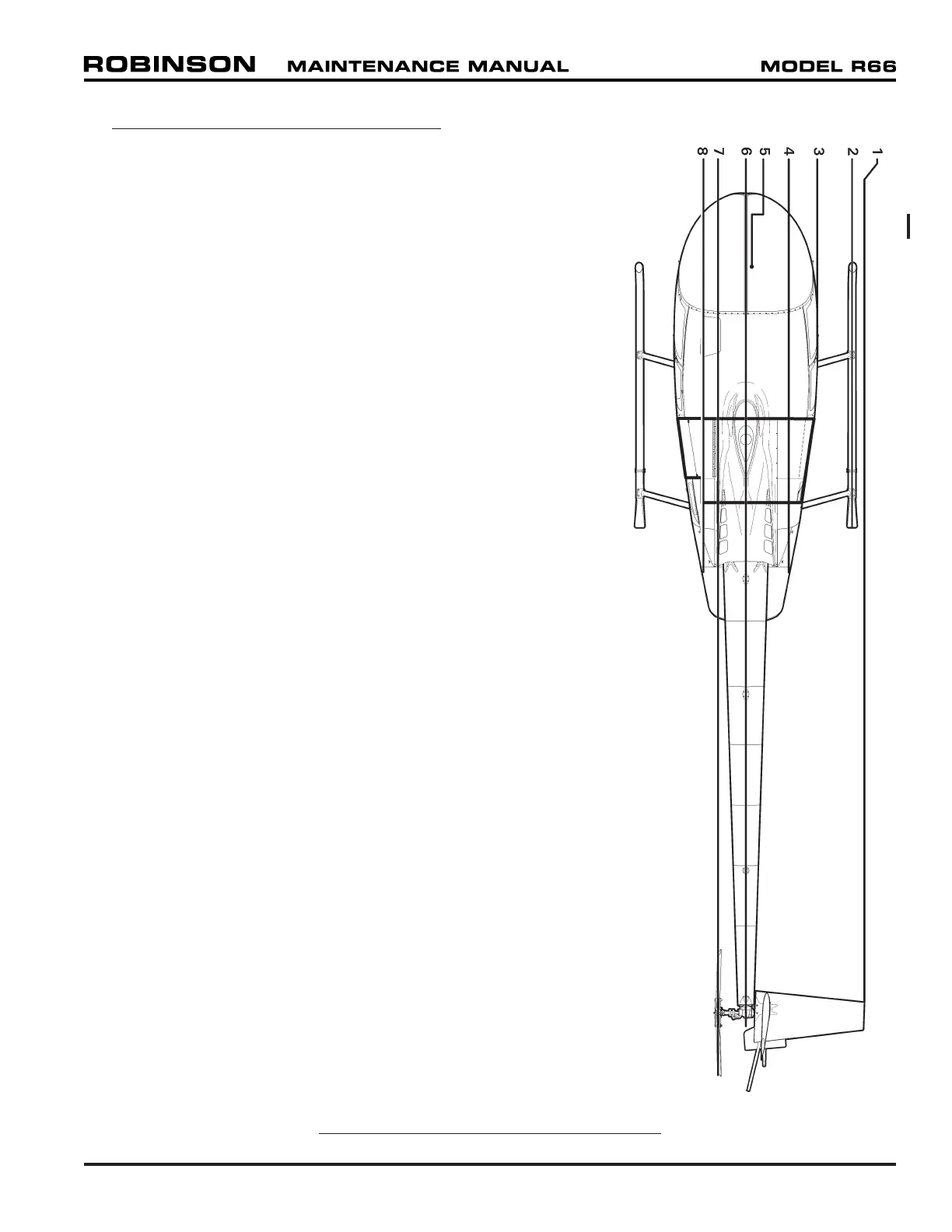

FIGURE 6-7 BUTT LINE STATION LOCATIONS
1 Horizontal Stabilizer (outboard point) . . . . . . . . . HS 43.00
2 Skid Tube (centerline) . . . . . . . . . . . . . . . . . . . . BL 42.00
3 Door Post (between forward & aft doors) . . . . . . BL 28.25
4 Jack Lug/Tab (aft strut assembly) . . . . . . . . . . . BL 16.73
5 Ground Handling Ball (jack point) . . . . . . . . . . . . BL 4.13
6 Origin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BL 0.00
7 Teeter Hinge Bolt (tail rotor) . . . . . . . . . . . . . . . LBL 11.01
8 Jack Tab (aft strut assembly) . . . . . . . . . . . . . . LBL 16.73
SEP 2012 R66 Maintenance Manual Chapter 6 Dimensions and Descriptions Page 6.9
