6-70 Access and Inspection Panels

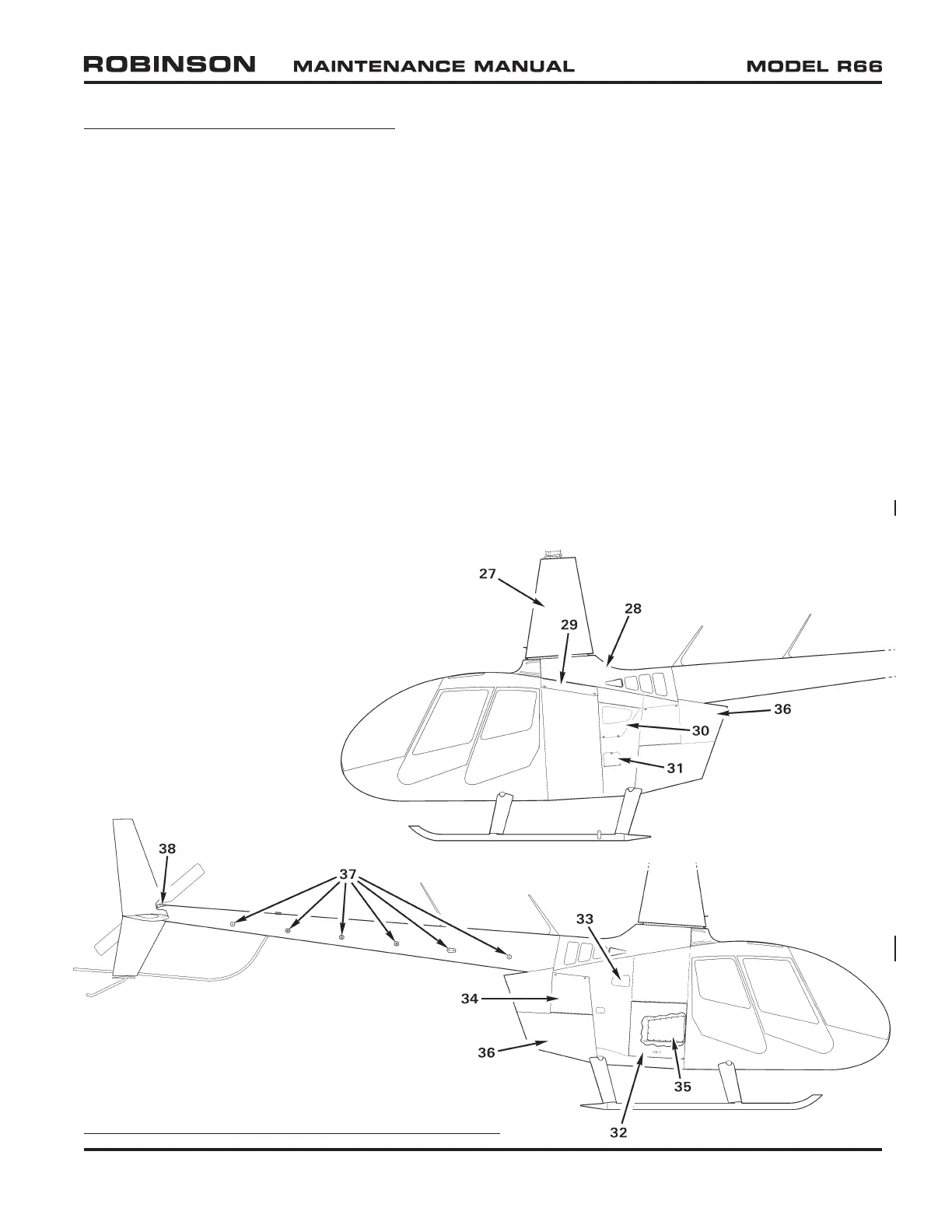

FIGURE 6-9 EXTERIOR ACCESS & INSPECTION PANELS
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1 A412-3 Cover - Pedal Bearing Block 24 F082-2 Fairing Assembly - Landing Gear, Forward (RH)
2 2451 Cover - Floor Panel F082-3 Fairing Assembly - Landing Gear, Forward (LH)
3 A412-1 Cover - Pedal Bearing Block 25 G308-2 Cover - Aft Cowling
4 F490-1 Panel Assembly - Circuit Breaker 26 F082-4 Fairing Assembly - Landing Gear, Aft (RH)
5 F444-1 Cover - Cyclic Box F082-5 Fairing Assembly - Landing Gear, Aft (LH)
6 B050 Console Assembly - Upper 27 F261-1 Mast Fairing Assembly
7 F445-1 Cover Assembly - Forward Tunnel 28 F706-1 Tailcone Cowling Assembly
8 F680-3 Cover Assembly - Collective (Pilot) 29 G004-2 Aft Fuselage Assembly - Door, Fuel Fill
9 F680-1 Cover Assembly - Collective (Copilot) 30 G004-10 Aft Fuselage Assembly - Door, Access
10 F461-1 Cover Assembly - Collective Cross Tube 31 G927-1 Aft Fuselage Assembly - Door, Fuel Sample
11 F463-1 Cover Assembly - Mid Tunnel 32 G900-1 Door Assembly - Baggage
12 F380-8 Angle 33 G910-1 Scoop Assembly - Air Inlet
13 F474-1 Cover Assembly - Middle Seat 34 G040-5 (2) Cowling Assembly - Aft (Door)
14 F931-1 Seat Assembly - Middle 35 G248-1 Cover - GCU
15 F003-4 Seat Back Assembly (RH) 36 G040-1 Cowling Assembly - Aft (Engine)
16 F932-1 Back Rest Assembly - Middle Seat 37 A231 Plug Assembly - Tailcone Inspection
17 F474-2 Cover - Middle Seat 38 A558-2 Cover - Tailcone Inspection, Aft
18 F003-3 Seat Back Assembly (LH)
19 F794-1 Panel - Belly Cover (FWD)
20 F475-1 Cover Assembly - Cross Tube
21 F475-6 (2) Cover - Cross Tube, Outboard
22 F748-1 Cover Assembly - Battery
23 F794-2 Panel - Belly Cover (AFT)
MAY 2015 Chapter 6 Dimensions and Descriptions Page 6.11
