Robinsons R66 - 98-16 Aspen EFD500 H Display Installation

To Next Page

To Previous Page

MAY 2015 Chapter 98 Wiring Diagrams Page 98.29

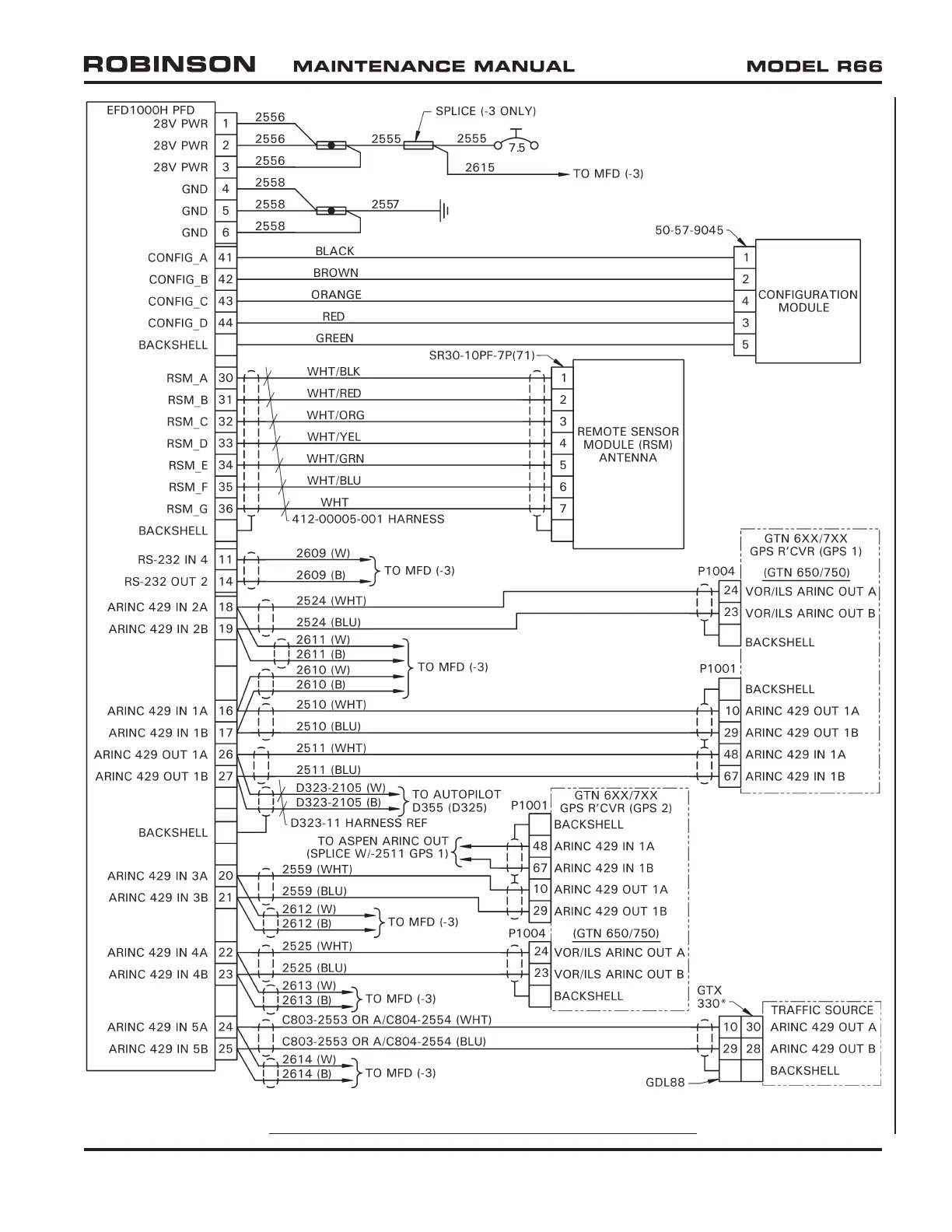

FIGURE 98-16 ASPEN EFD500H DISPLAY INSTALLATION

* Connect to GTX 330 Traffic (TIS-A) only if no other traffic system installed (i.e. GDL 88 [TIS-B]).
