22-30 Flight Control Computer
Refer to R66 Illustrated Parts Catalog (IPC) Figure 22-5.
A. Removal
1. Turn battery & avionics switches off and pull out AUTOPILOT (5 amp) circuit breaker
at panel.
2. Remove G702-7 cover assembly under pilot's seat.
3. Disconnect D323 and D354-4 harness assemblies from 01311-03-11 flight control
computer's J1 PITCH, J2, J3 ROLL, and J4 receptacles.
4. Disconnect pitot and static tubes from computer. Plug elbows and tubes.
5. Support computer and remove screws securing computer to D358-1 support
assemblies. Carefully remove computer from under pilot's seat.
MAY 2015 Chapter 22 Autopilot Page 22.5

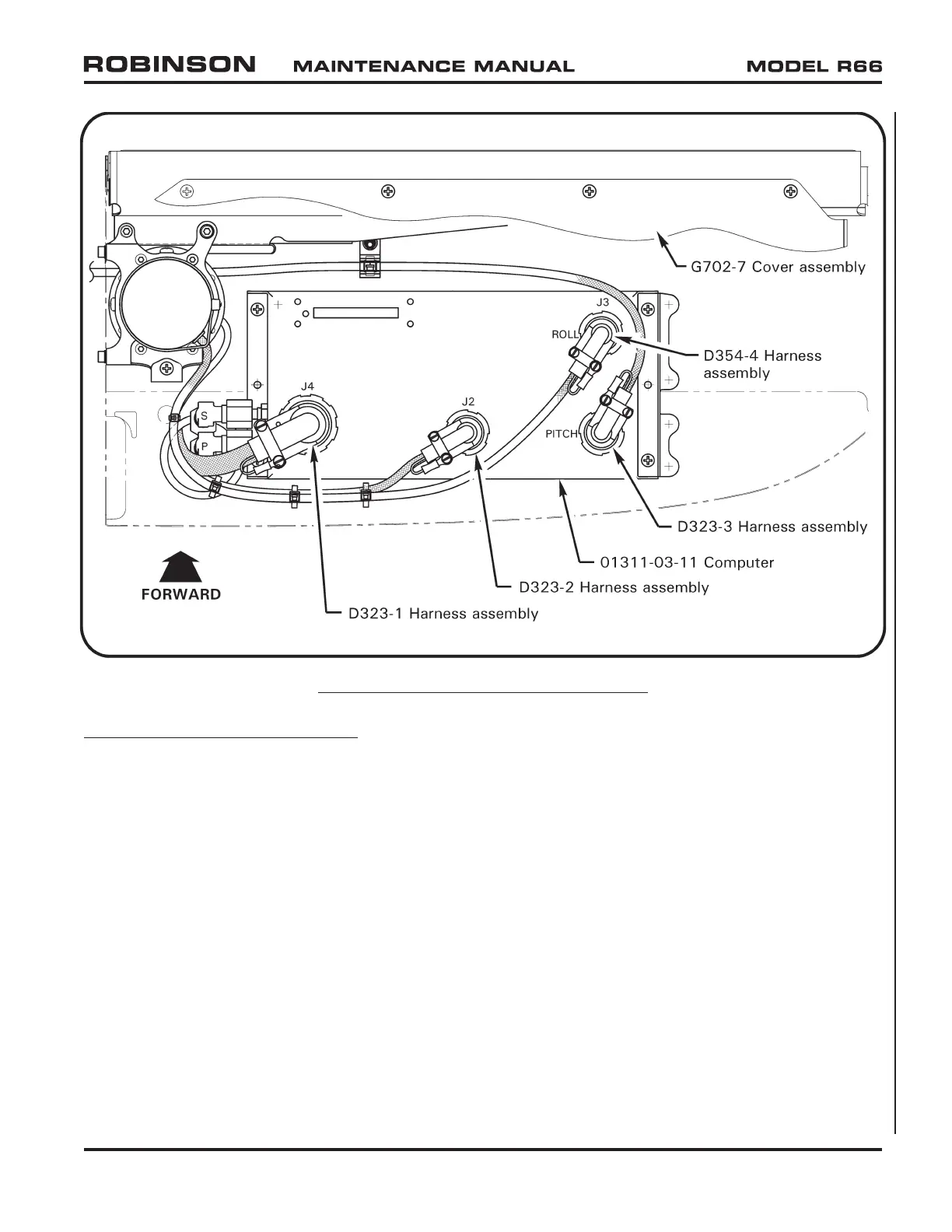

FIGURE 22-2 FLIGHT CONTROL COMPUTER
