MAY 2015 Chapter 98 Wiring Diagrams Page 98.31

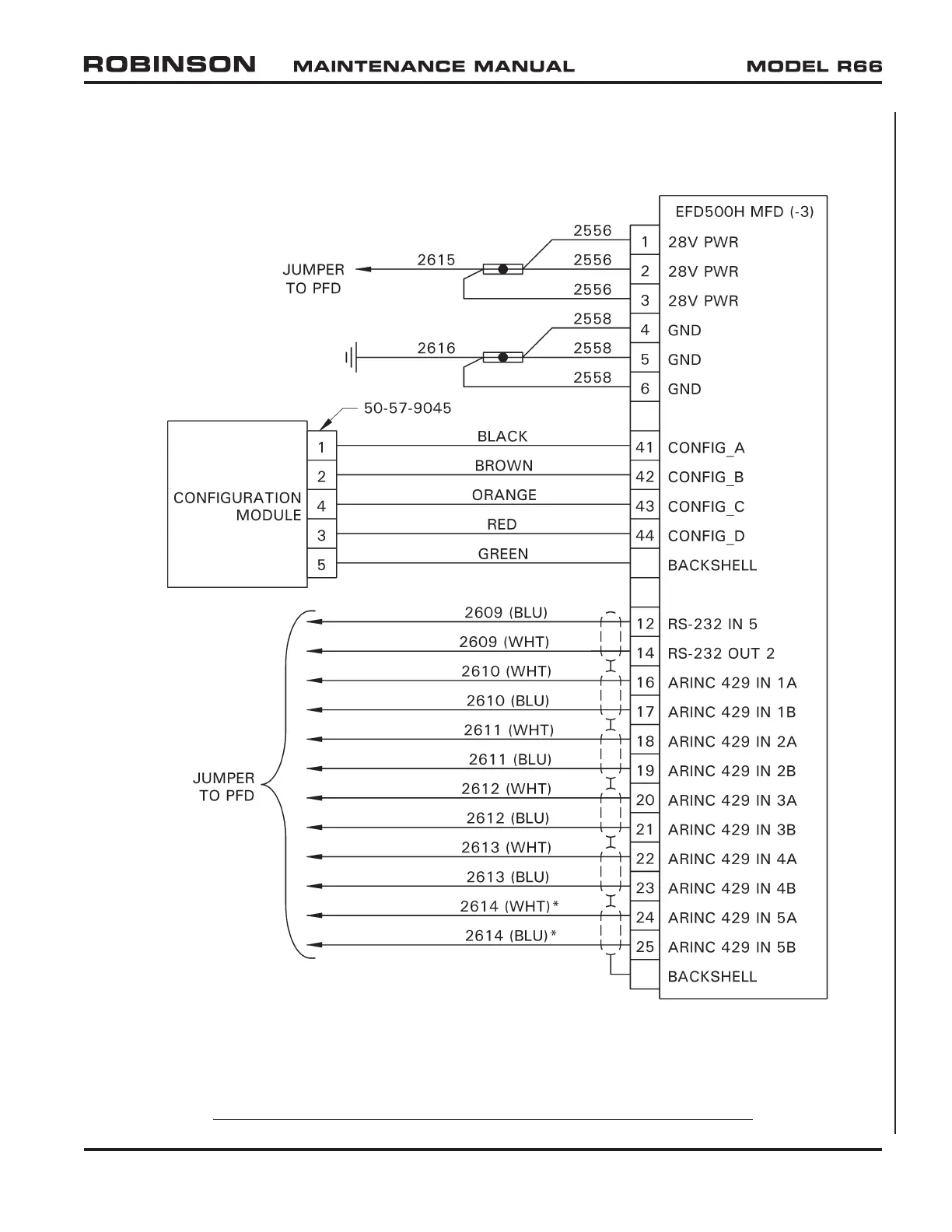

FIGURE 98-17 ASPEN EFD500H & EFD1000H DISPLAYS INSTALLATION

* Connect to GTX 330 Traffic (TIS-A) only if no other traffic system installed (i.e. GDL 88 [TIS-B]).
