6-80 Antenna Locations

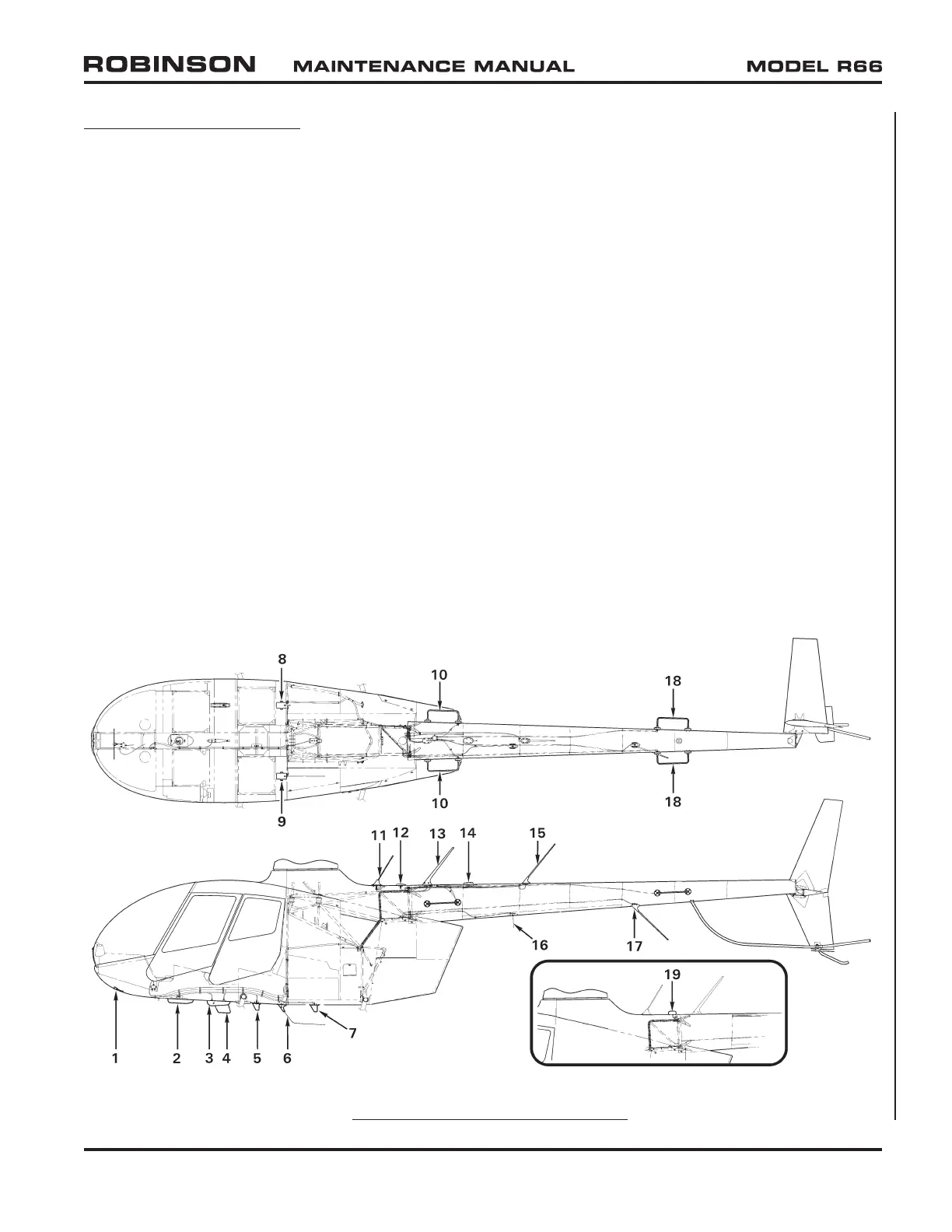

FIGURE 6-10 ANTENNA LOCATIONS
ITEM ANTENNA MHz PART NO.
1 Glidescope . . . . . . . — CI 193
2 ADF . . . . . . . . . . . . — KA44B
3 Marker Beacon . . . . — CI 102
4 RH Belly UHF . . . . . 400-960 CI 285
5 DME . . . . . . . . . . . . — CI 105-16, KA60
Transponder . . . . . . — CI 105-16, KA60
ADS-B . . . . . . . . . . — CI 105-16, KA60
6 LH/RH Belly (Ref) . . — See items 8 and 9
7 Transponder . . . . . . — CI 105-16, KA60
8 RH Belly FM . . . . . . 138-174 CI 292-3
450-470 CI 177-20
RH Belly AM/FM . . . — CI 222
RH Belly FM . . . . . . 403-512 CI 273, CI 272-1, CI 271
9 LH Belly FM . . . . . . 138-174 CI 292-3
450-470 CI 177-20
220-225 D721-1
LH Belly FM . . . . . . 403-512 CI 273, CI 272-1, CI 271
LH Belly COM . . . . . 118-136 CI 122
10 NAV . . . . . . . . . . . . 108-118 &
329-335
D20543 (VOR &
LOCALIZER)
108-118 &
329-335
D20543 (VOR &
LOCALIZER W/DIPLEXER)
11 ELT . . . . . . . . . . . . . — AV-300
MAY 2015 Chapter 6 Dimensions and Descriptions Page 6.13
ITEM ANTENNA MHz PART NO.
12 Cowling GPS . . . . . . . — GA 35
Cowling XM . . . . . . . . — GA 55
13 Upper Fwd COM . . . . . — CI 121, CI 248-5
Upper Fwd FM . . . . . . — CI 177
Upper Fwd FM . . . . . . 403-512 CI 273, CI 272-1, CI 271
800-870 CI 306
Upper Fwd COM/GPS — CI 2580-200
14 Upper Mid RSM/GPS . — 921-00003-001
15 Upper Aft COM . . . . . — CI 121, CI 248-5
Upper Aft FM . . . . . . . — CI 177
Upper Aft FM . . . . . . . 403-512 CI 273, CI 272-1, CI 271
Upper Aft COM/GPS . . — CI 2580-200
16 Lower Fwd FM . . . . . . — CI 177
Lower Fwd FM . . . . . . 403-512 CI 273, CI 272-1, CI 271
17 Lower Aft FM . . . . . . . — CI 177
Lower Aft VHF . . . . . . 118-136 CI 122
Lower Aft FM . . . . . . . 403-512 CI 273, CI 272-1, CI 271
800-870 CI 306
18 NAV . . . . . . . . . . . . . . 108-118 &
329-335
D20543 (VOR &
LOCALIZER)
108-118 &
329-335
D20543 (VOR &
LOCALIZER W/DIPLEXER)
19 Cowling GPS* . . . . . . . — GA 35
*Earlier aircraft.
