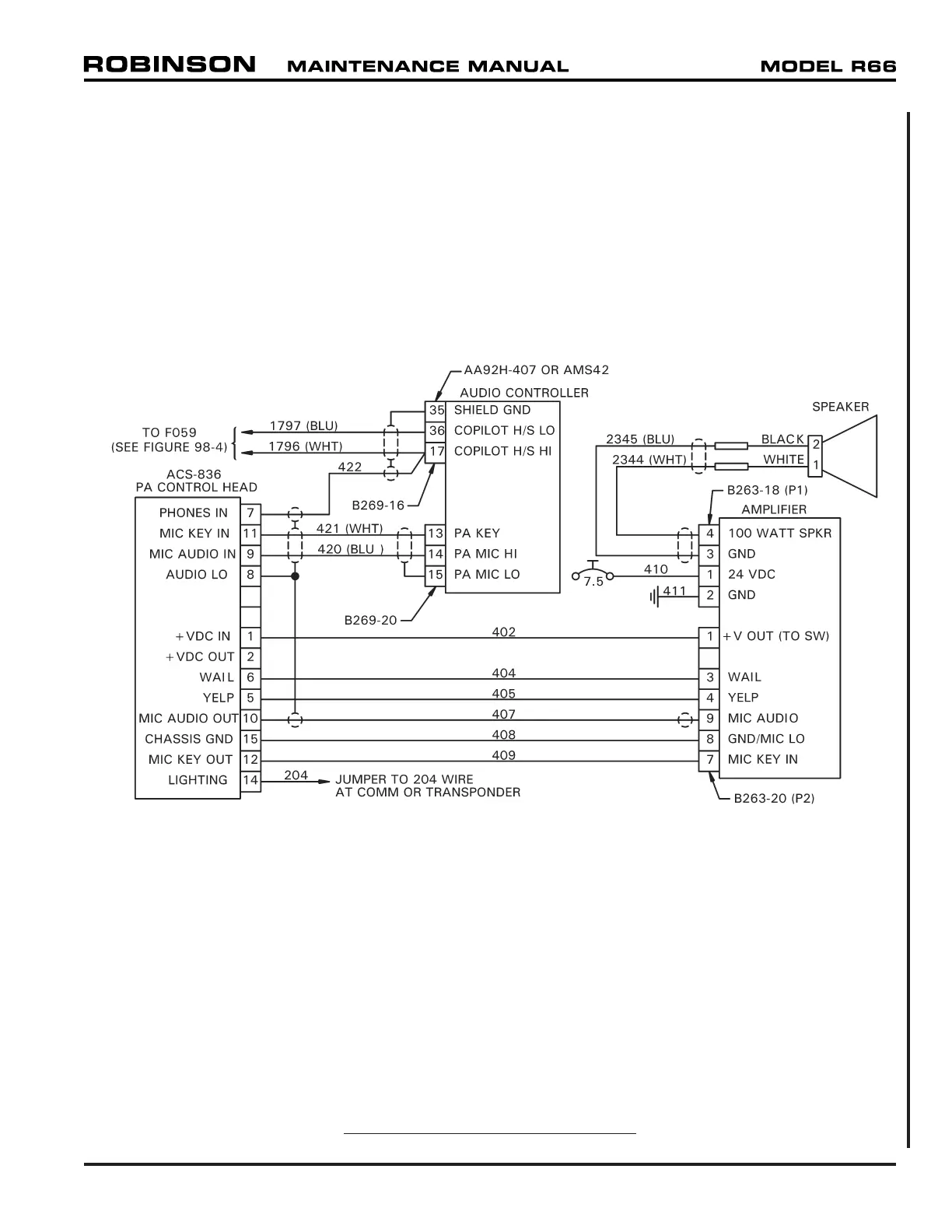

FIGURE 98-7 PA/SIREN INSTALLATION
SEP 2012 R66 Maintenance Manual Chapter 98 Wiring Diagrams Page 98.11
