11-10 Placard Locations (continued)
ITEM PART NO. DESCRIPTION QTY
37 F463-1 Cover Assembly - Mid Tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
38 F654-27 Decal (console compartment capacity) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
39 G749-2 Console Assembly (Incl item 38, Ref)
40 C710-1 Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
41 C712-2 Cover - Spotlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
42 D119-1 Handle - Rotor Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
43 F436-6 Cover Assembly (RH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
44 F436-5 Cover Assembly (LH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
45 A654-16 Decal - “HEADSET” (early R66s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
46 F654-25 Decal (dongle programming instructions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
47 A654-11 Decal - “OPEN” (RH door, outside; black lettering) . . . . . . . . . . . . . . . . . . . . . . 2
A654-9 Decal - “OPEN” (RH door, outside; white lettering) . . . . . . . . . . . . . . . . . . . . . . 2
48 F654-24 Decal - “BATTERY LOCATED BEHIND THIS PANEL” . . . . . . . . . . . . . . . . . . . . . 1
49 F654-8 Decal - “LATCH” (black lettering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
F654-9 Decal - “LATCH” (white lettering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
50 F654-7 Decal - “CAUTION” (baggage compartment loading) . . . . . . . . . . . . . . . . . . . . . 1
F654-26 Decal - “CAUTION” (baggage compartment loading; police version) . . . . . . . . . . 1
51 G598-1 Faceplate - "28V / BATT CHARGE" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
52 A654-3 Decal - “DANGER” Arrow (tail rotor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
53 D079-1 Tail Rotor Guard (Ref)
54 C654-2 Decal - “DANGER” Arrow (tail rotor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

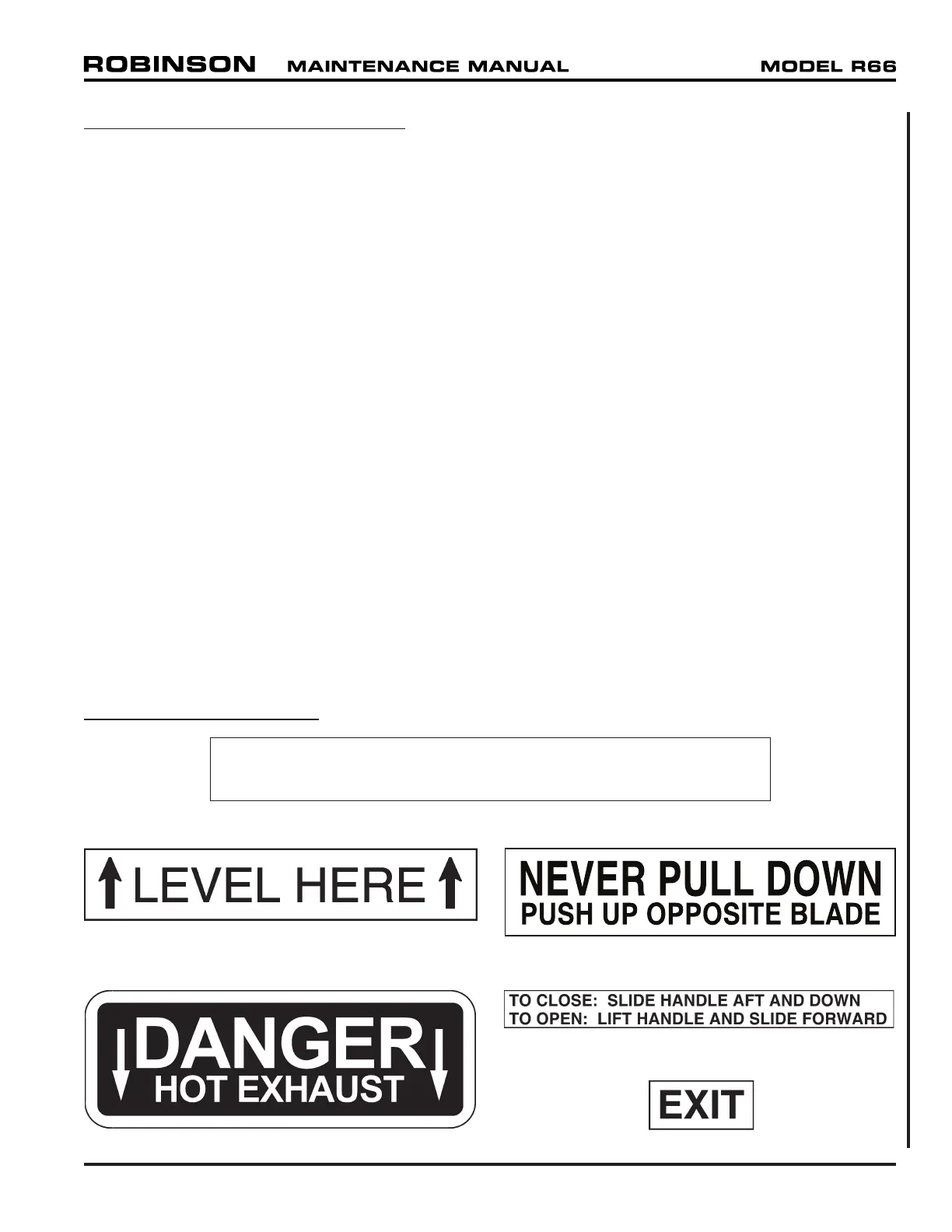

11-20 Placard Illustrations
NOTE
Placards (decals) and markings are not to scale.
2. Decal A654-251. Decal A654-18
3. Decal A654-94 4. Decal F654-21
5. Decal F654-21
