SEP 2012 R66 Maintenance Manual Chapter 11 Placards and Markings Page 11.5
16. Panel Assembly F490-1

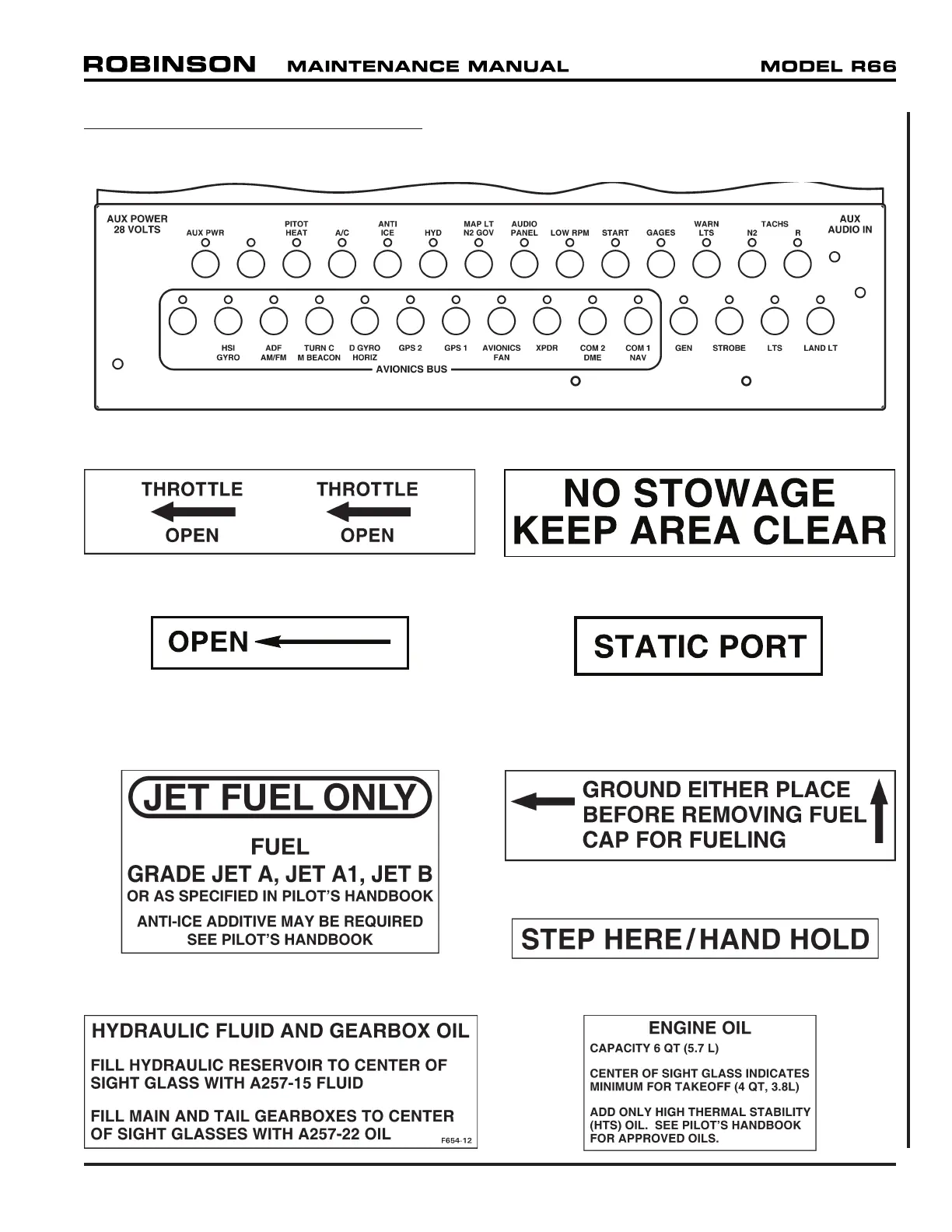

11-20 Placard Illustrations (continued)
17. Decal A654-6 18. Decal A654-21
19. Decal A654-12 20. Decal C654-7
21. Decal C654-8 (not shown; see No. 20)
22. Decal F654-5 23. Decal F654-6
24. Decal F654-15
25. Decal F654-12 26. Decal F654-3
