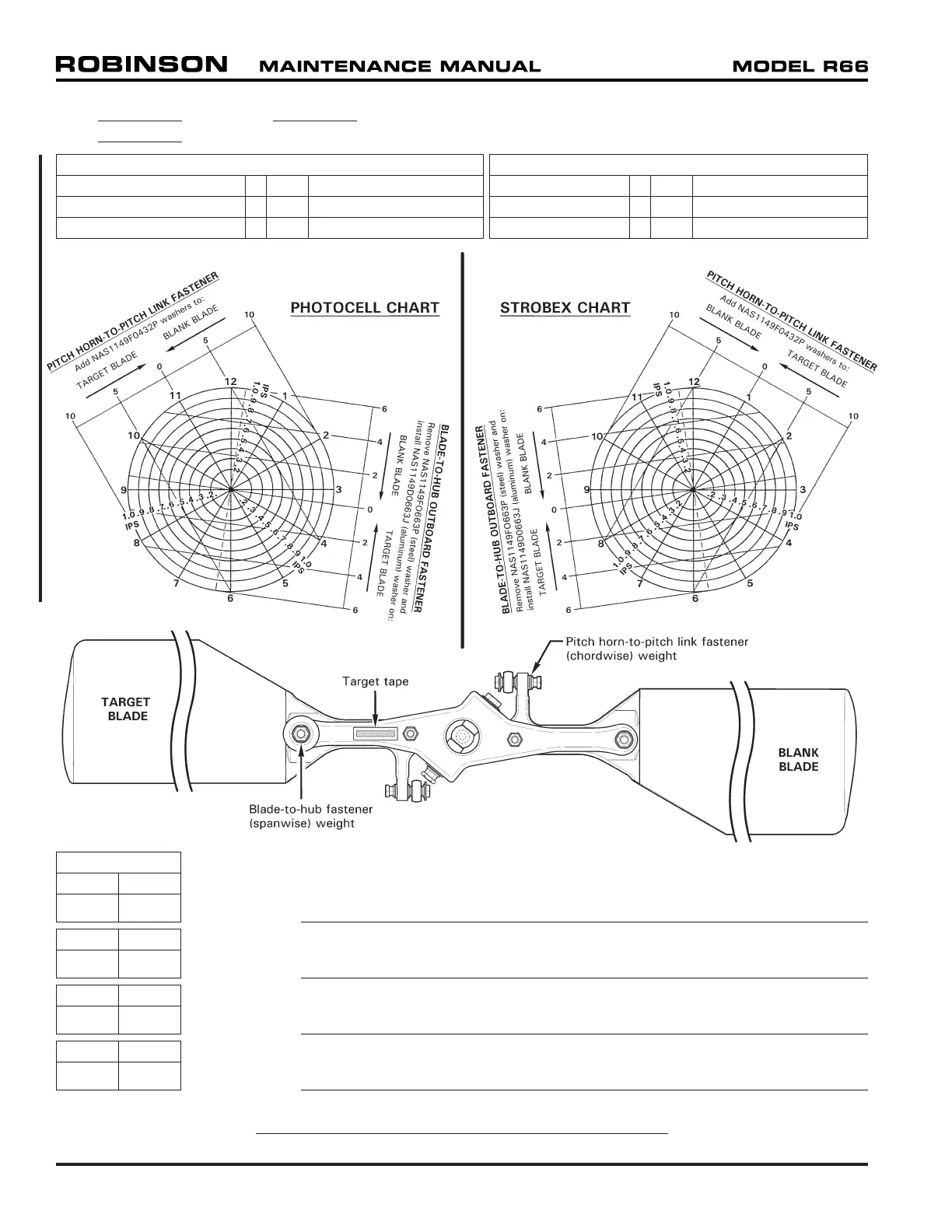

FIGURE 18-7 TAIL ROTOR DYNAMIC BALANCE CHART
DATE SERIAL NO.
PAGE
BLADE-TO-HUB OUTBOARD FASTENER (SPANWISE) WEIGHTS
(1) C141-23 Washer = (3.5) NAS1149F0663P Washers
(1) C141-24 Washer = (7) NAS1149F0663P Washers
(2) NAS1149F0632P (1) NAS1149F0663P Washer
BALANCE
CLOCK IPS
ADJUSTMENT:
CLOCK IPS
ADJUSTMENT:
CLOCK IPS
ADJUSTMENT:
CLOCK IPS
ADJUSTMENT:
PITCH HORN-TO-PITCH LINK FASTENER (CHORDWISE) WEIGHTS
(1) NAS1149F0463P Washer = (2) NAS1149F0432P Washers
(1) A214-3 Washer = (3.5) NAS1149F0432P Washers
(1) A141-14 Washer = (5) NAS1149F0432P Washers
Page 18.18 Chapter 18 Track and Balance R66 Maintenance Manual SEP 2012
