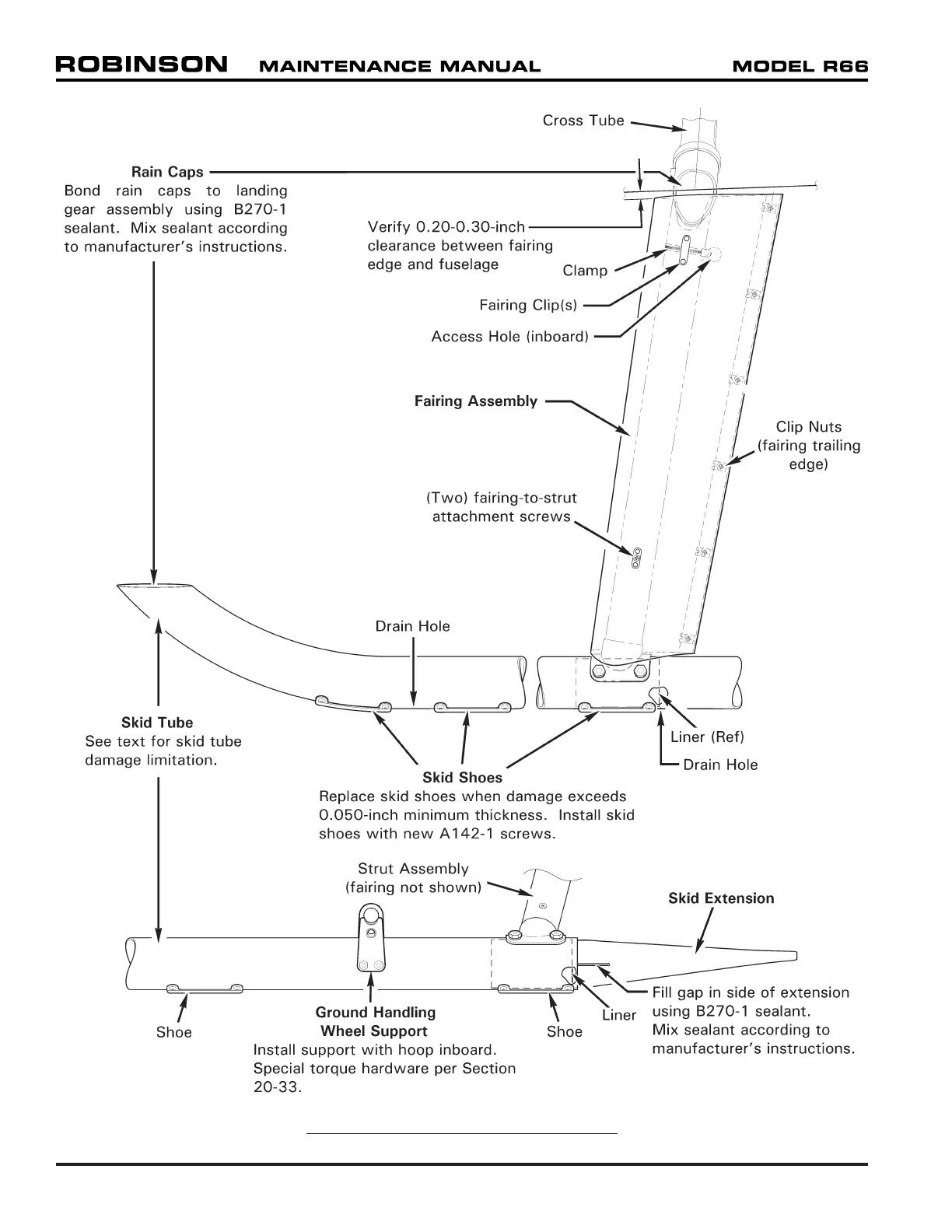

FIGURE 32-3 SKID TUBES AND FAIRINGS
(Strut and skid tube angles exaggerated for clarity)
Page 32.6 Chapter 32 Landing Gear R66 Maintenance Manual SEP 2012
