Page 62.22 Chapter 62 Main Rotor R66 Maintenance Manual 25 OCT 2010

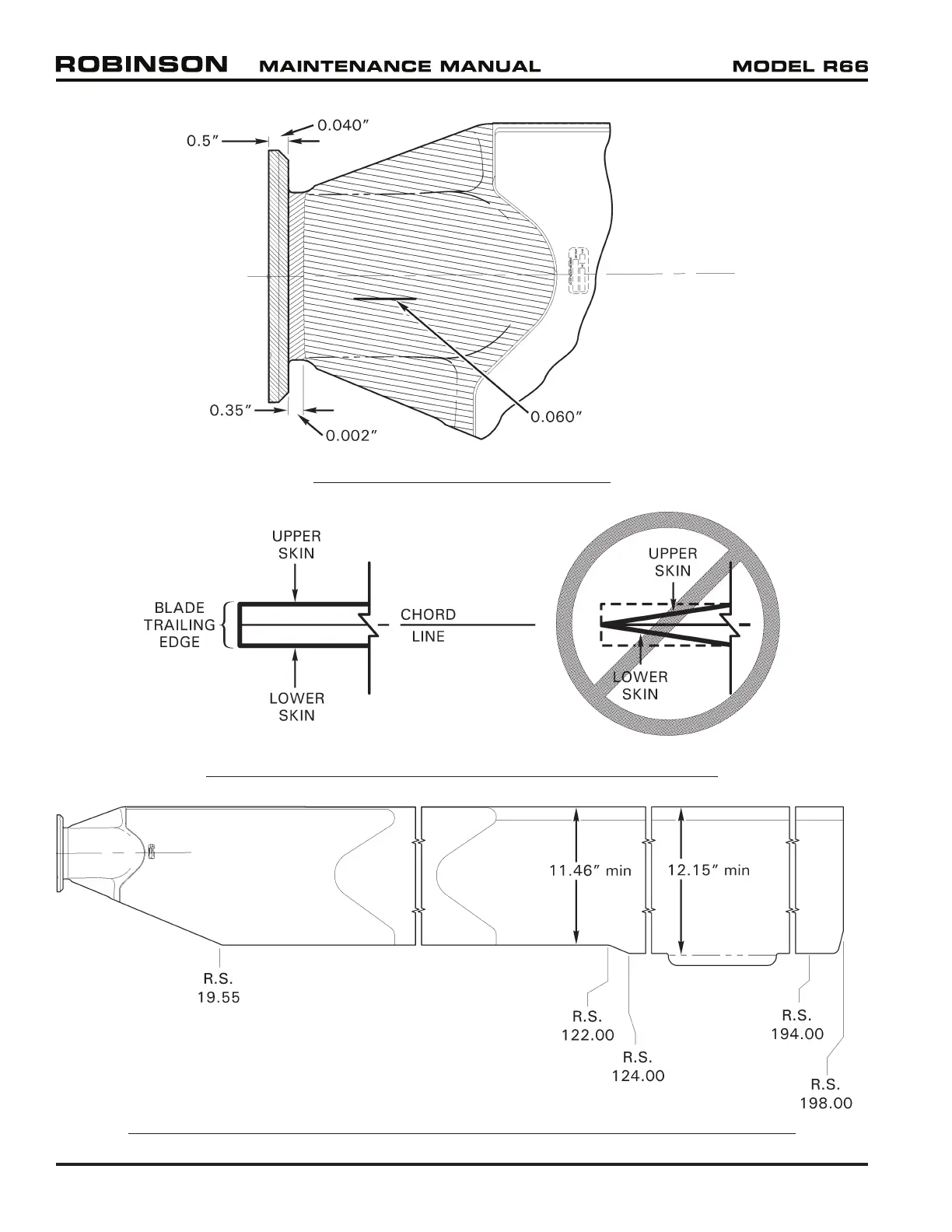

FIGURE 62-15 REPAIRS TO BLADE AND TRIM TAB TRAILING EDGES
FIGURE 62-14 ROOT FITTING DAMAGE
FIGURE 62-16 MINIMUM CHORD AFTER BLADE AND TRIM TAB TRAILING EDGE REPAIRS
