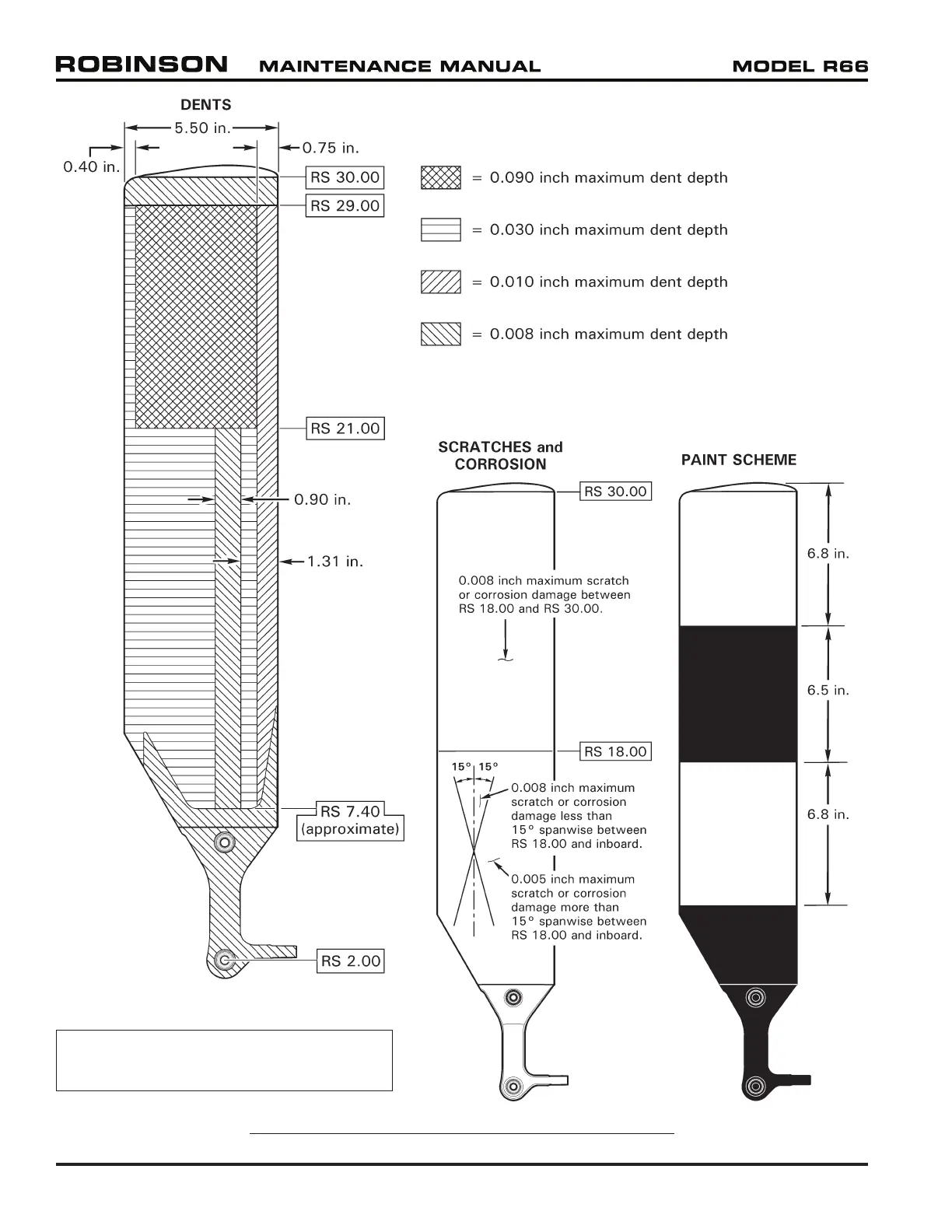

FIGURE 64-4 TAIL ROTOR BLADE INSPECTION CRITERIA
NOTE
See text for additional inspection criteria.
Page 64.10 Chapter 64 Tail Rotor R66 Maintenance Manual 25 OCT 2010
