Robinsons R66 - Page 50

FIGURE 5-2 ROD END CENTERING
Position rod ends for maximum rotation

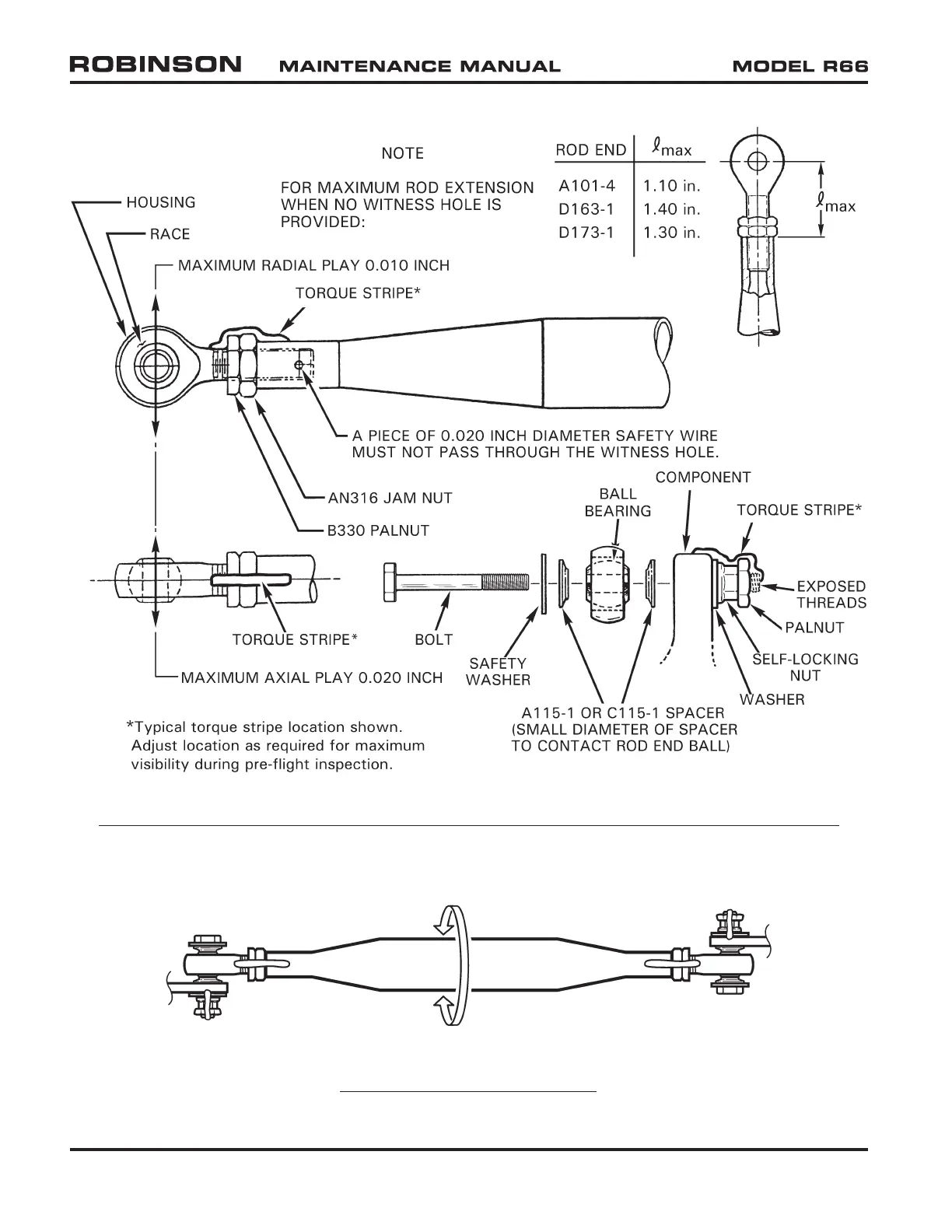

FIGURE 5-1 ROD END AND SPHERICAL BEARING PLAY LIMITS AND TORQUE STRIPE APPLICATION
Page 5.4 Chapter 5 Inspections MAY 2015
