Robopac Compacta S9 - Page 96

ENG
INFORMATION ABOUT THE USE
96

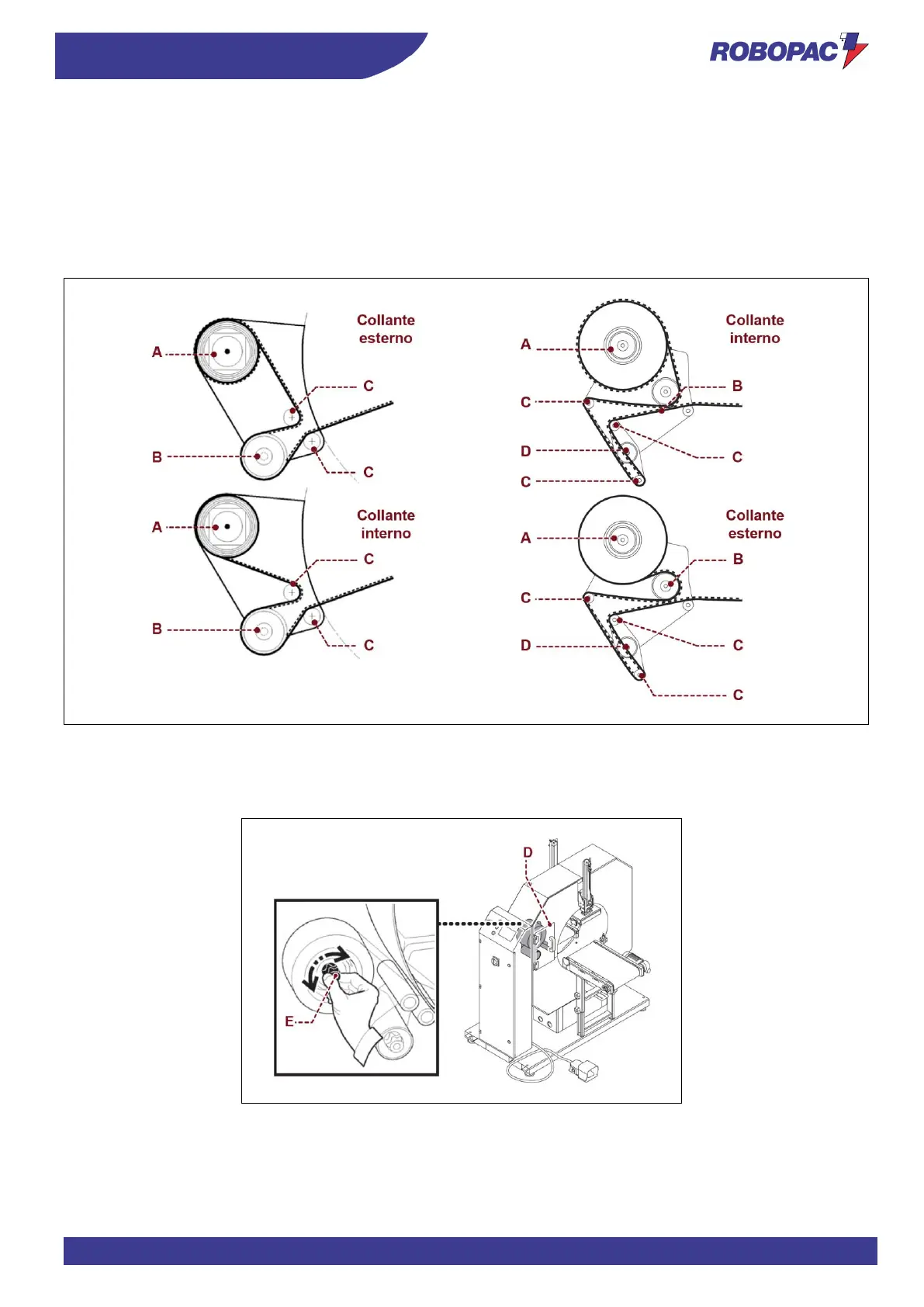

5. Insert the spool on the roller following the diagram in the figure.
The hatching shows the adhesive side (internal or external) of the film.
Unwind the film out of the protection ring.
A) Spool carriage roller
B) Roller with clutch
C) Idler rollers
D) Dancer roller
6. Adjust the clutch on the spool carriage roller using the knob (E); turn clockwise to increase the braking effect.
7. Close the door (D) and press the “Reset” button.
