AX10 Palletizing Solution

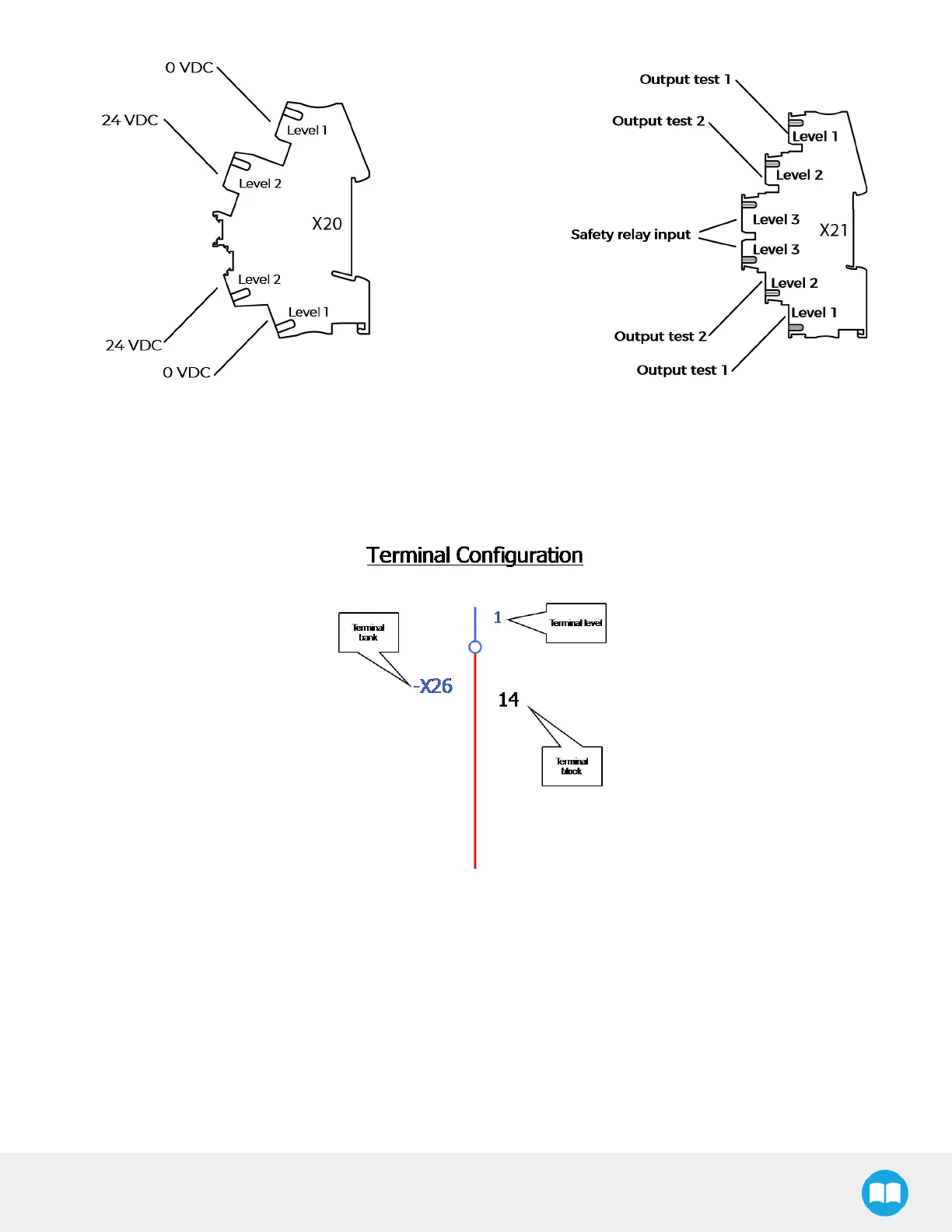

Fig. 6-3: Cross-sections of two-level and three-level terminal blocks
6.2.4. Terminal Configuration
Refer to the figure below for terminal configuration nomenclature:
Fig. 6-4: Terminal Configuration Nomenclature
Based on the nomenclature, the contact point in this figure would be identified as -X26.14.1.
