AX10 Palletizing Solution

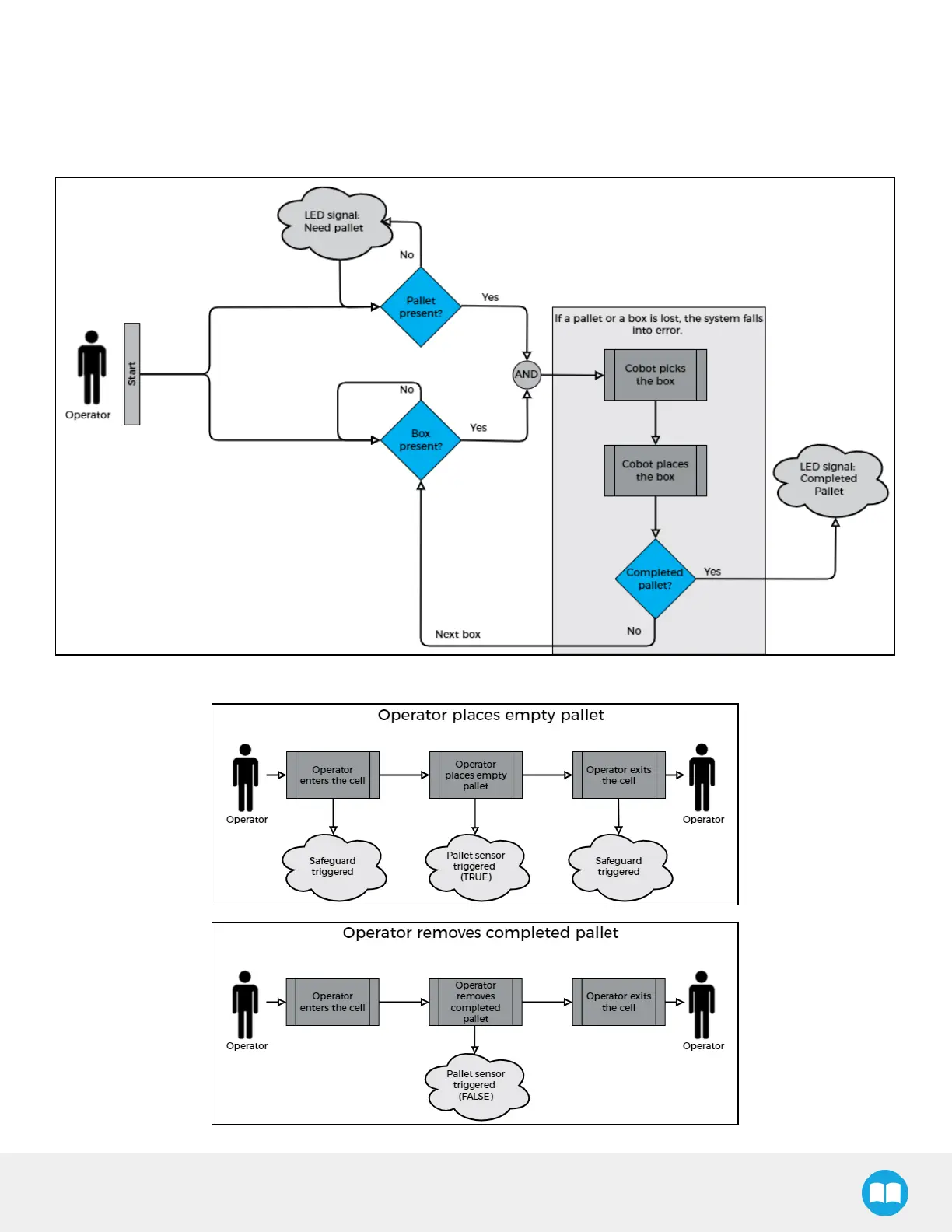

4.3. Palletizing Operation Diagrams
The following diagrams explain the logic of the Palletizing Solution process based on the operator's actions, as well as responses
such as signals, pallet and box sensor behaviors, etc. These steps are also explained in the Palletizing Operation Instructions
section.
Please refer to the Status Light States section for further information about light states.
73
