AX10 Palletizing Solution
Box Block
Single Pick (Default Mode)
By default (single pick), the home view of the Palletizer node displays the Box, Pallet, Pattern and Settings blocks of the only recipe
available.
Tap the Edit button in the Box block to bring up the Box menu.
Multi-Pick (Different Boxes or Box Groups)
By default, the multi-pick feature is disabled in the Settings menu.
When the multi-pick feature is enabled in the Settings menu, selecting the Box block brings up the Box Types menu (i.e., the list of
box types created).

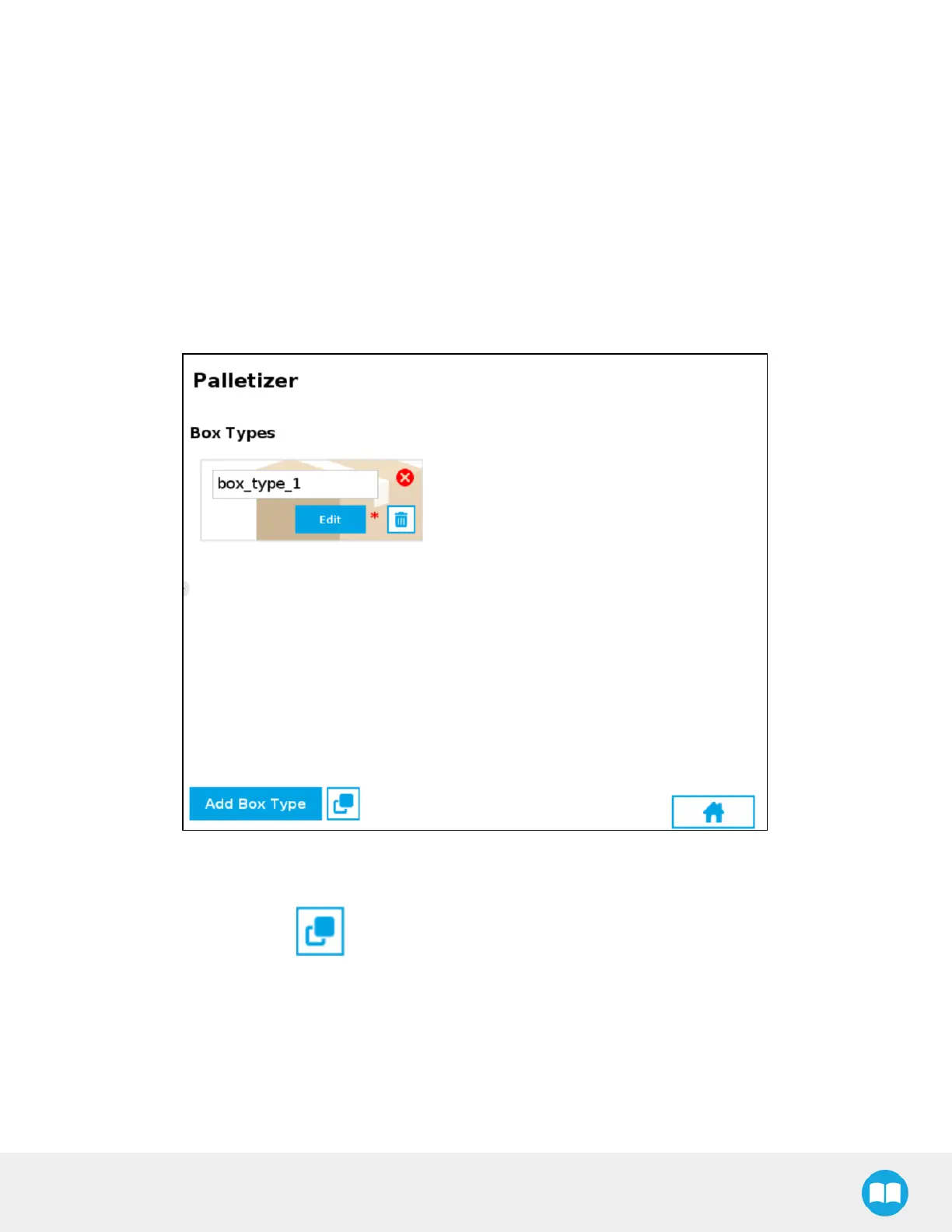

Fig. 5-10: Box Type Menu (Multi-Pick Feature)
l
If applicable, tap the Add Box Type button to create a new box type, yet to be configured.
l
If applicable, tap the Duplicate icon to open the duplication menu.
