Robotiq Screwdriving Solution - Instruction Manual
7.1.2.Screw Feeder

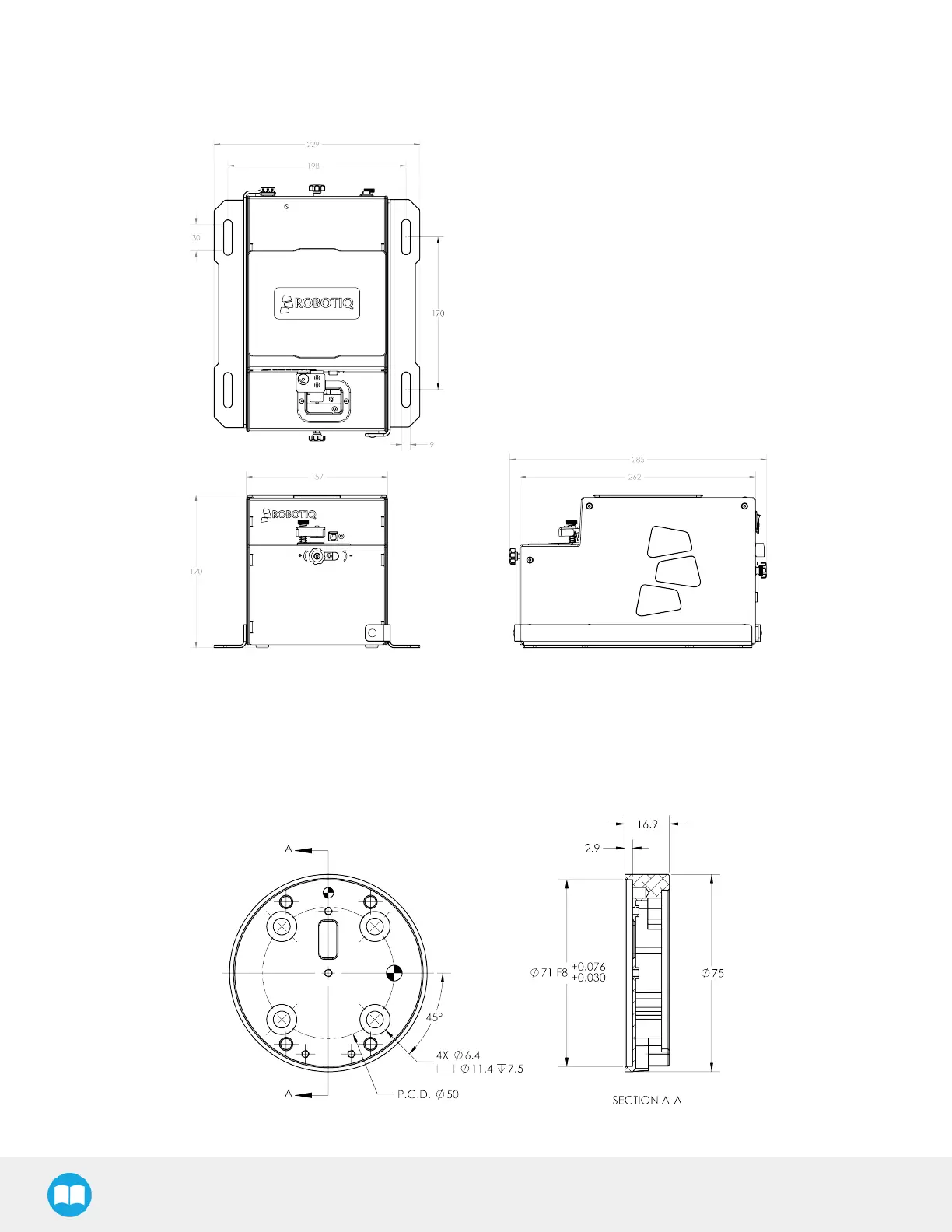

Fig. 7-2: Dimensions of the Screw Feeder.
7.1.3.Coupling
Operating the Screwdriver requires a coupling provided by Robotiq.
The coupling ismandatory since it integrates electronicsand electrical contacts.
Fig. 7-3: Dimensions of the Robotiq Coupling for Installation of the Screwdriver.
71
