Robotiq Screwdriving Solution - Instruction Manual
1.1.Screwdriving Solution Nomenclature
The Robotiq Screwdriving Solution comprisestwo main components: the SD-100 Robotiq Screwdriver, and SF-300 Robotiq Screw
Feeder.

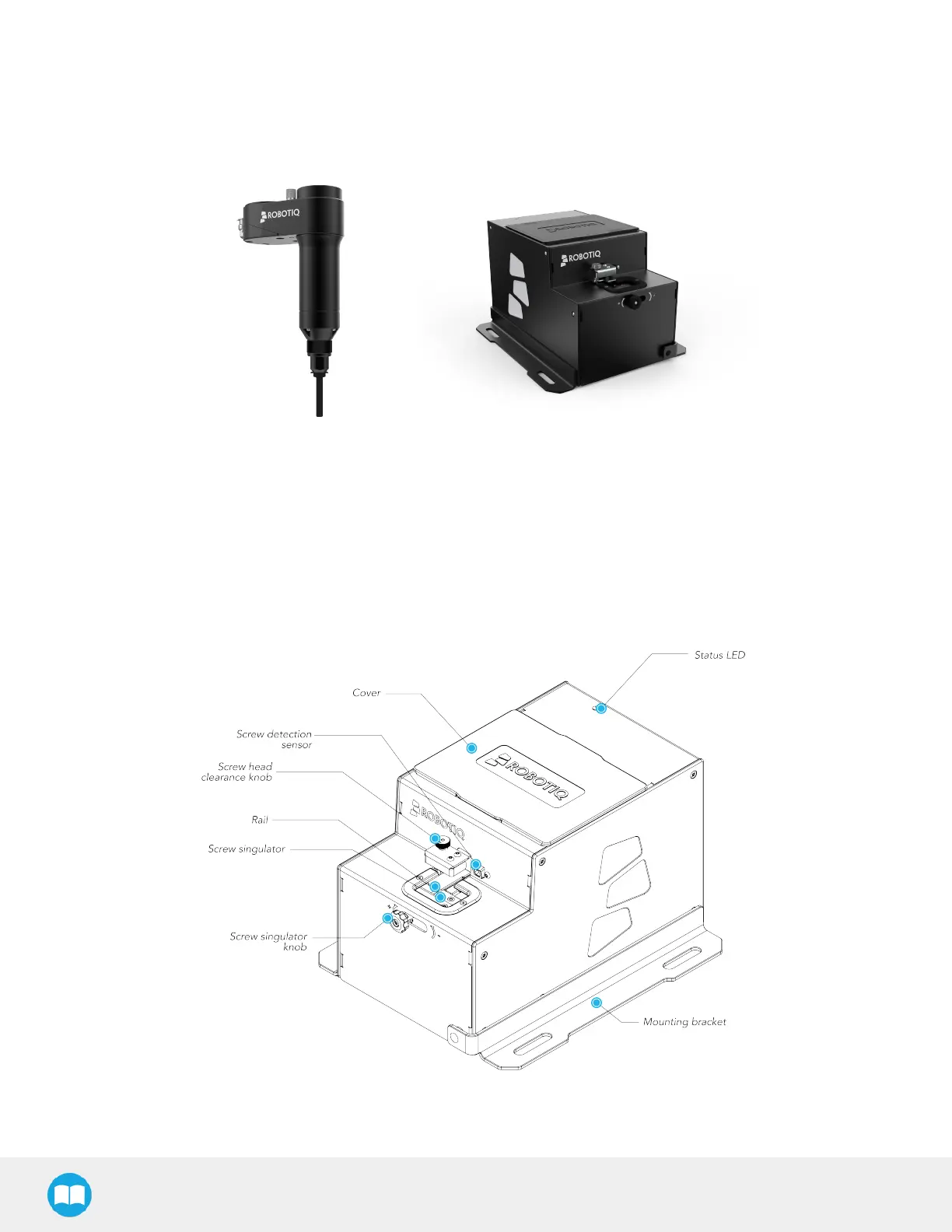

Fig. 1-1: Screwdriver and Screw Feeder
Please refer to the Scope of Deliverysection and Spare Parts, Kitsand Accessoriessection for details on standard and optional
parts.
1.1.1. Screw Feeder Nomenclature
The Robotiq Screw Feeder is an electrical device used to take in screws, bring them individually to a picking area with a rail, and
send a signal to the robot for the Robotiq Screwdriver to pick them up for screwdriving tasksand applications.
Fig. 1-2: Screw Feeder Nomenclature (Front)
