Robustel R1520 User Guide
RT056_UG_R1520_v.1.0.3 Dec. 25, 2021 72/159

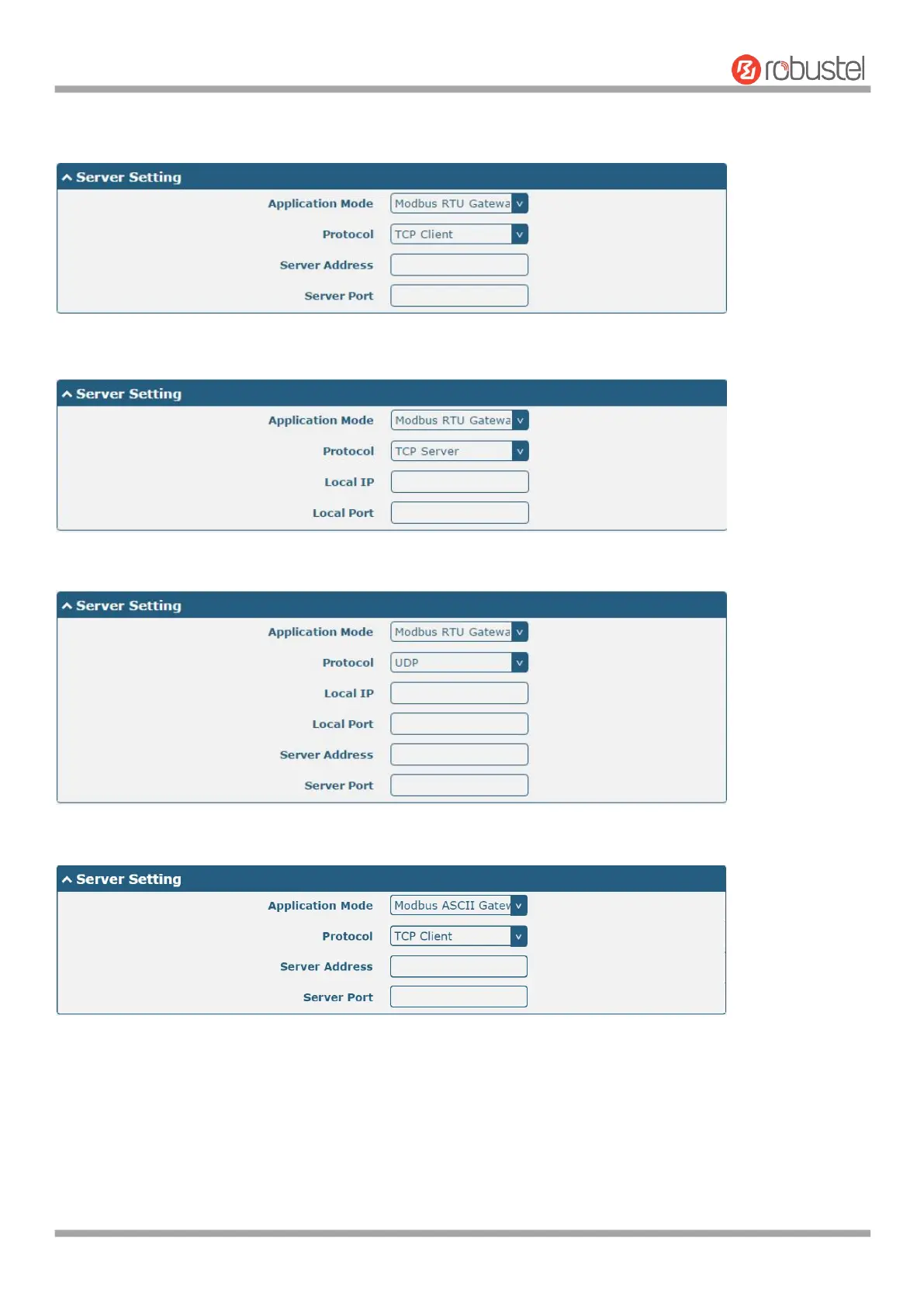

When “ModBus RTU Gateway” is selected as the application mode and TCP Client” as the protocol, the window is as
follows:
When "ModBus RTU Gateway" is selected as the application mode and "TCP Server" as the protocol, the window is
as follows:
When selecting "ModBus RTU Gateway" as the application mode and "UDP" as the protocol, the window is as
follows:
When “ModBus ASCII Gateway” is selected as the application mode and TCP Client” as the protocol, the window is
as follows:
When selecting "ModBus ASCII Gateway" as the application mode and "TCP Server" as the protocol, the window is as
follows:
