Service Manual · Version 9.0 B-71
cobas b 221 system 4 Components
Bottle compartment
5 Remove the label clip from the handle of the S2 (or S3) docking mechanism and
pull the docking mechanism out.
6 Disconnect the tube connector and remove the S2 (or S3) docking mechanism.
Use the reverse order for assembly.
Replacing the clamp docking mechanism
1 Open the bottle compartment cover.
2 Open the docking mechanism Waste or S1 Rinse Solution.
3 Remove the respective bottle.
4 Open the mounting screw of the respective docking mechanism.
e For details, see Figure B-51 on page B-70.
5 Pull out the respective docking mechanism to the front.
6 Move the clamp docking mechanism backwards out of the respective docking
mechanism. Therefore a certain amount of force is needed.
Assembly is done in reverse order.
Replacing the micro switch module
1 Remove the cobas b 221 system top cover.
2 Open the bottle compartment cover.
3 Unscrew the screw holding the micro switch module.
A Holding screw

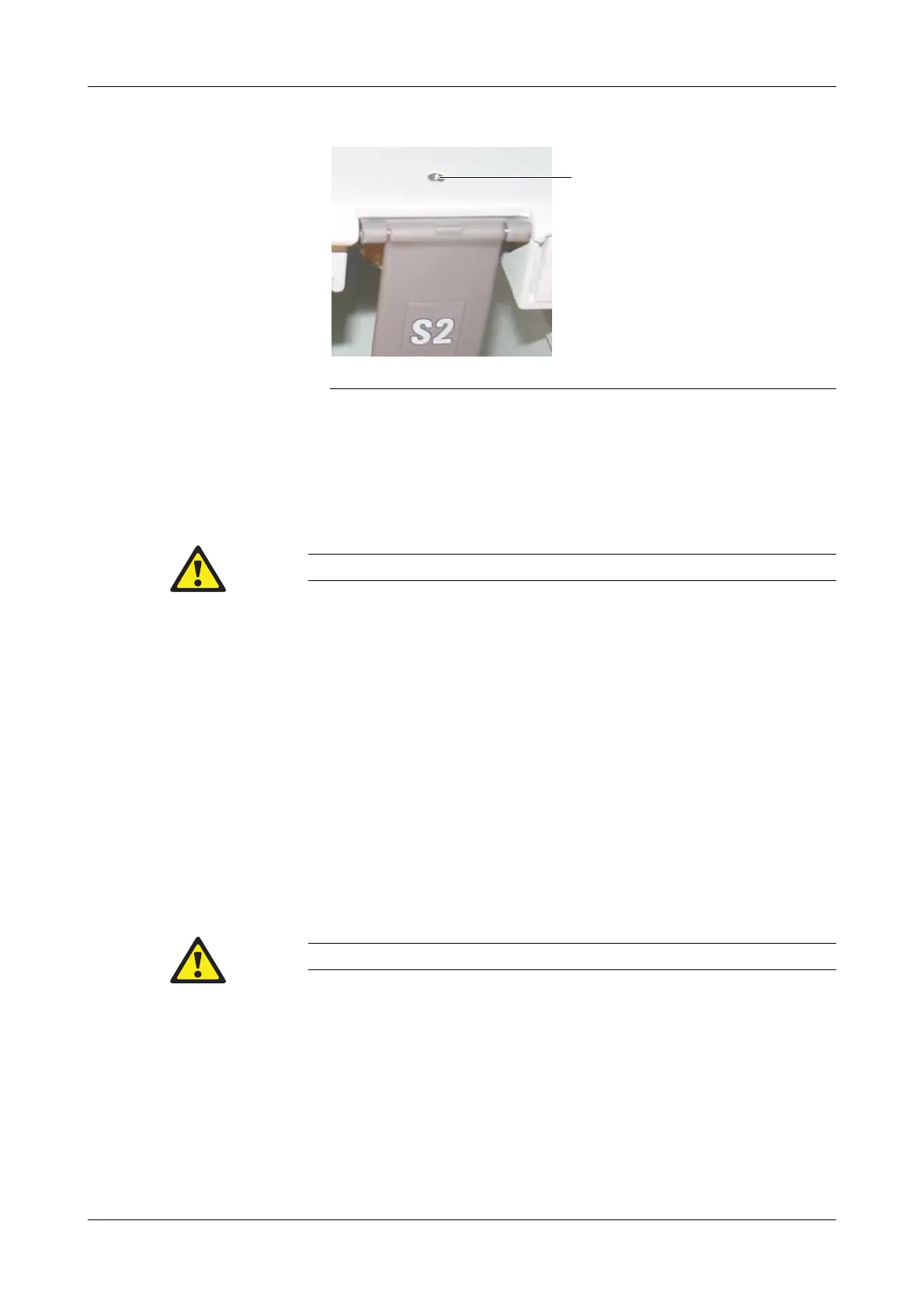

Figure B-52 S2/S3 docking mechanism
A
Make sure that the tube connector is in the correct position during installation!
Check the tube connections after the assembly!
