cobas b 221 system 2 Fluid actions
Measurement
Measurement
Sample input
Injecting sample
The sample container is detected by a light barrier on the T&D module.
Sample path: o fill port >
o sample inlet path >
o SS2
o When the sample has reached SS2 the user is prompted (by beeping and prompt
window) to remove the sample container.
A V24
B Waste separator
C V23
D SS3
E SS2
F SS6
G Fill port

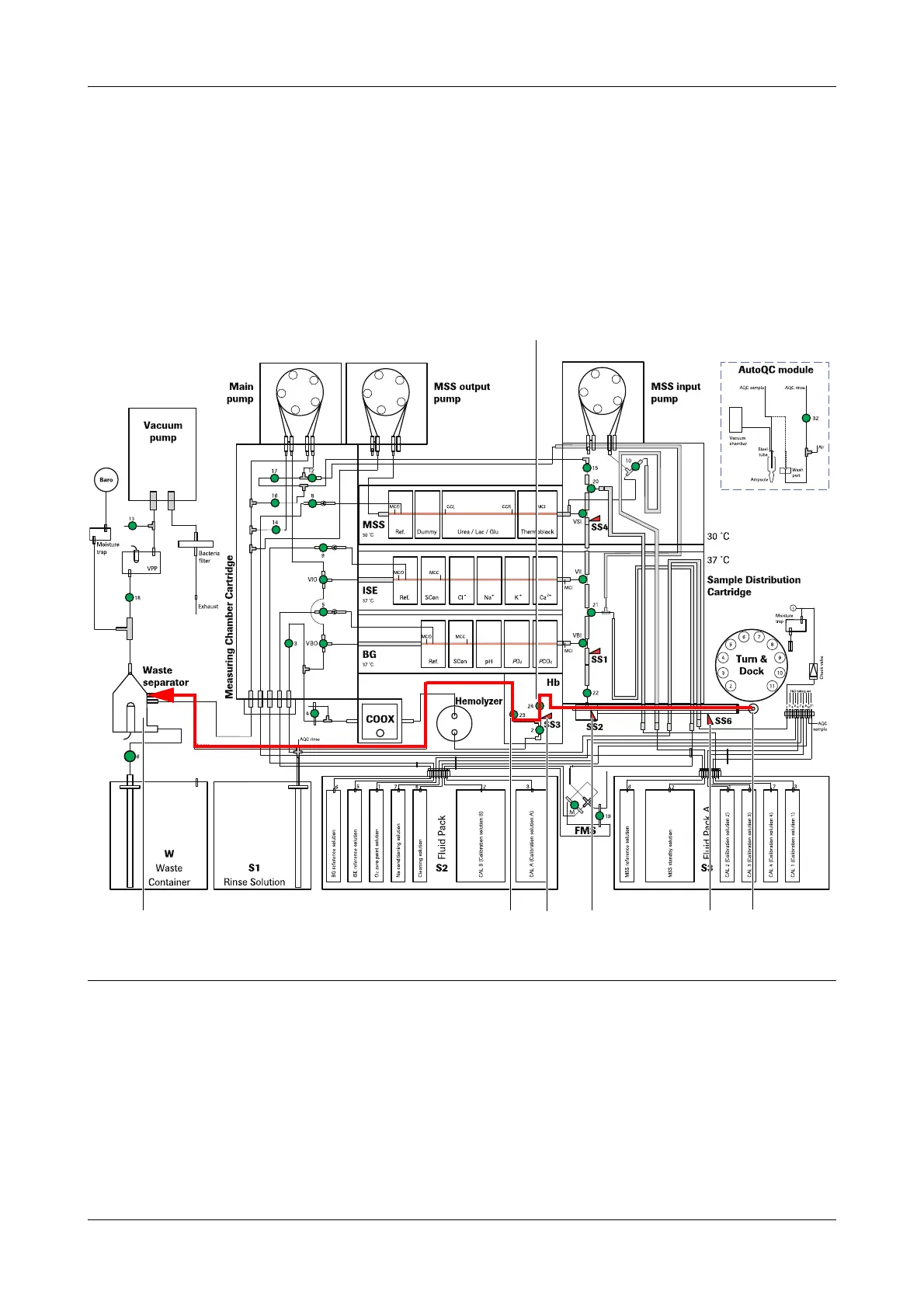

Figure A-10 Injecting sample
