B-26 Service Manual · Version 9.0
4 Components cobas b 221 system
T&D system (Turn & Dock)
4 Slide the optical sensor out and remove it.
Use the reverse order for assembly.
Replacing the T&D sensor cover
1 Remove the sample inlet path.
e For instructions, see Replacing the sample inlet path on page B-24.
2 Remove the sensor cover.
e For details, see Figure B-9 on page B-25.
Use the reverse order for assembly.
Replacing the T&D disk
1 Remove T&D cover.
2 Rotate fill port to the right and remove it.
Note the position of the optical sensor during installation: there are three possible positions and it
must be replaced in the one from which it was removed.
Various components of the cobas b 221 system, such as T&D module, tubes, waste bottle, waste
separator etc., contain liquid biological residues after use that may cause infection.
Handle these components with care and avoid skin contact. To avoid direct contact with biological
materials, always wear appropriate protective equipment such as lab clothing, protective gloves,
safety glasses and, if necessary, a face mask. Additionally a face shield must be worn if there is a
potential of a splashback. Appropriate disinfection and sterilization procedures must be followed.
Always wear gloves when working with the instrument! The tubes may drip a little after being
disconnected. Remove excess fluids with a clean, absorbent cloth.
Activate the function program h [System] > [Component test] > [T&D module] and press [P1]
to put the T&D disk in the position needed for replacement.

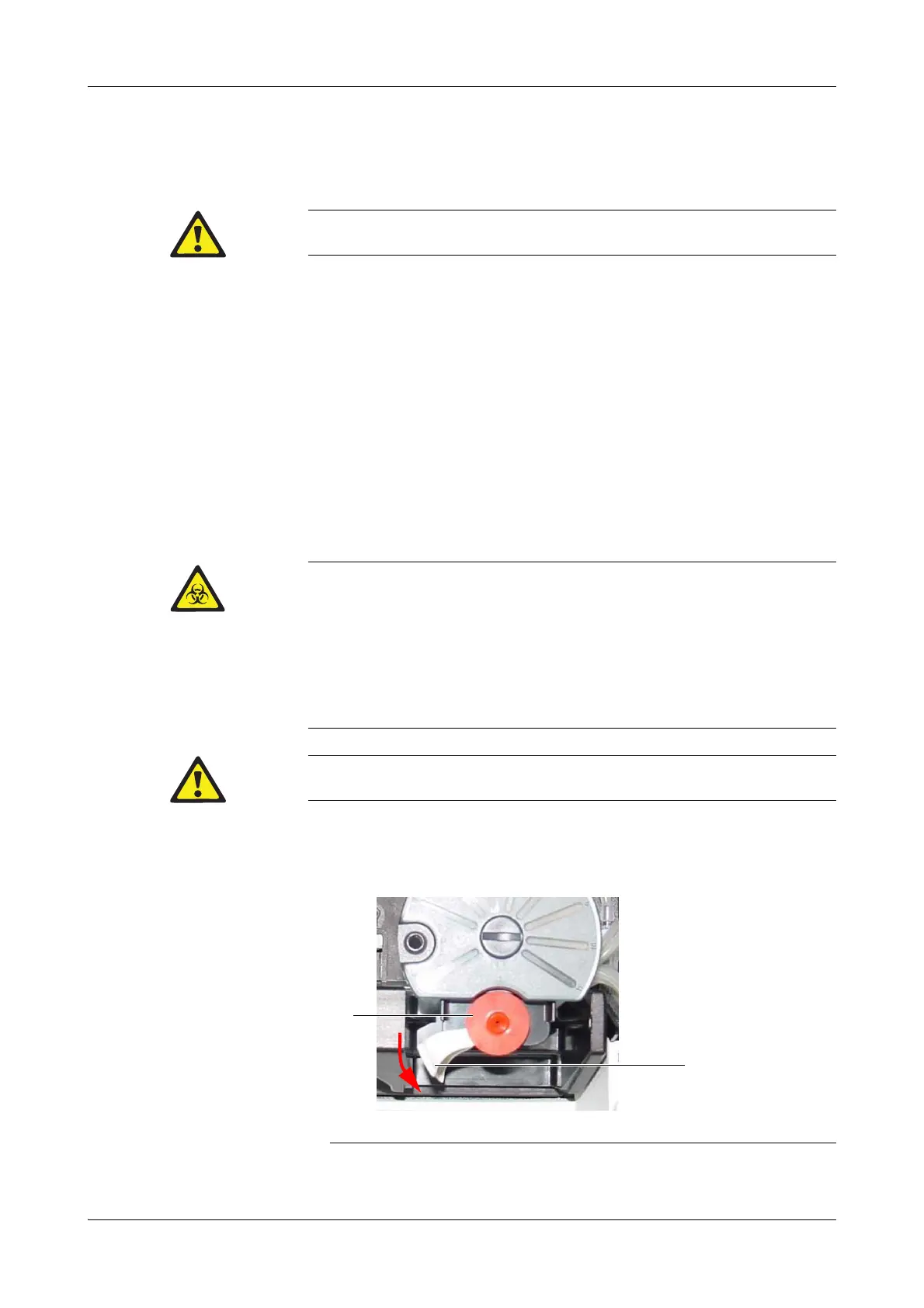

A Fill port B Removing the fill port
Figure B-10 Fill port
A
B
