Roche cobas b 221 system User Manual

Roche Diagnostics May 2009
Service Manual · Version 9.0 B-85
cobas b 221 system 4 Components
Valve s
Replacing the waste valves V13/V18
1 Remove the vacuum pump completely.
e For instructions, see Replacing the vacuum pump completely on page B-73.
2 Disconnect the two tubes on the vacuum pump protector.
e For details, see Figure B-58 on page B-75.
3 Loosen the two screws holding the vacuum pump protector by unscrewing them
out about 1 cm.
4 Pull the vacuum pump protector up and remove it.
5 Pull the tube out of the waste valve V13 or V18 (see above).
6 Disconnect the power supply cable of the valve V13 or V18 on the board.
7 Unscrew the two screws holding the waste valve V13 or V18 and remove the valve.
8 Remove the MC valve centering instrument and fasten it to the new valve.
Use the reverse order for assembly.
V13 and V18 are different parts:
V13 = valve undamped
V18 = VP waste valve

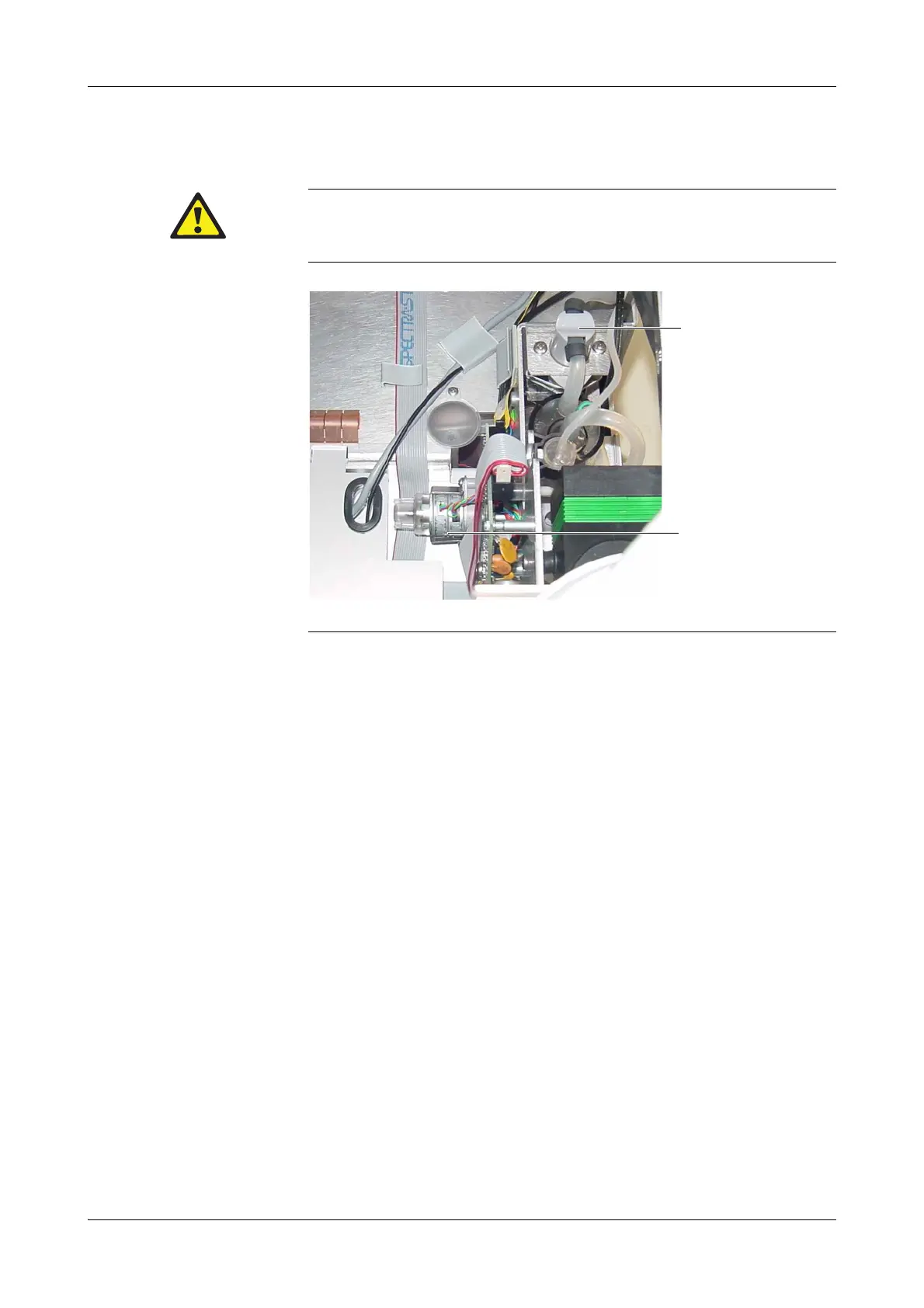

A V18 (VP waste valve) B V13 (valve undamped)
Figure B-63 Waste valves V13 and V18
A
B
