Roche cobas b 221 system User Manual

Roche Diagnostics May 2009
Service Manual · Version 9.0 B-29
cobas b 221 system 4 Components
T&D system (Turn & Dock)
5 Unscrew the three screws holding the housing cover at the bottom of the T&D
module and remove the cover.
6 Unscrew the four screws on the back of the plug control.
A SCD cable

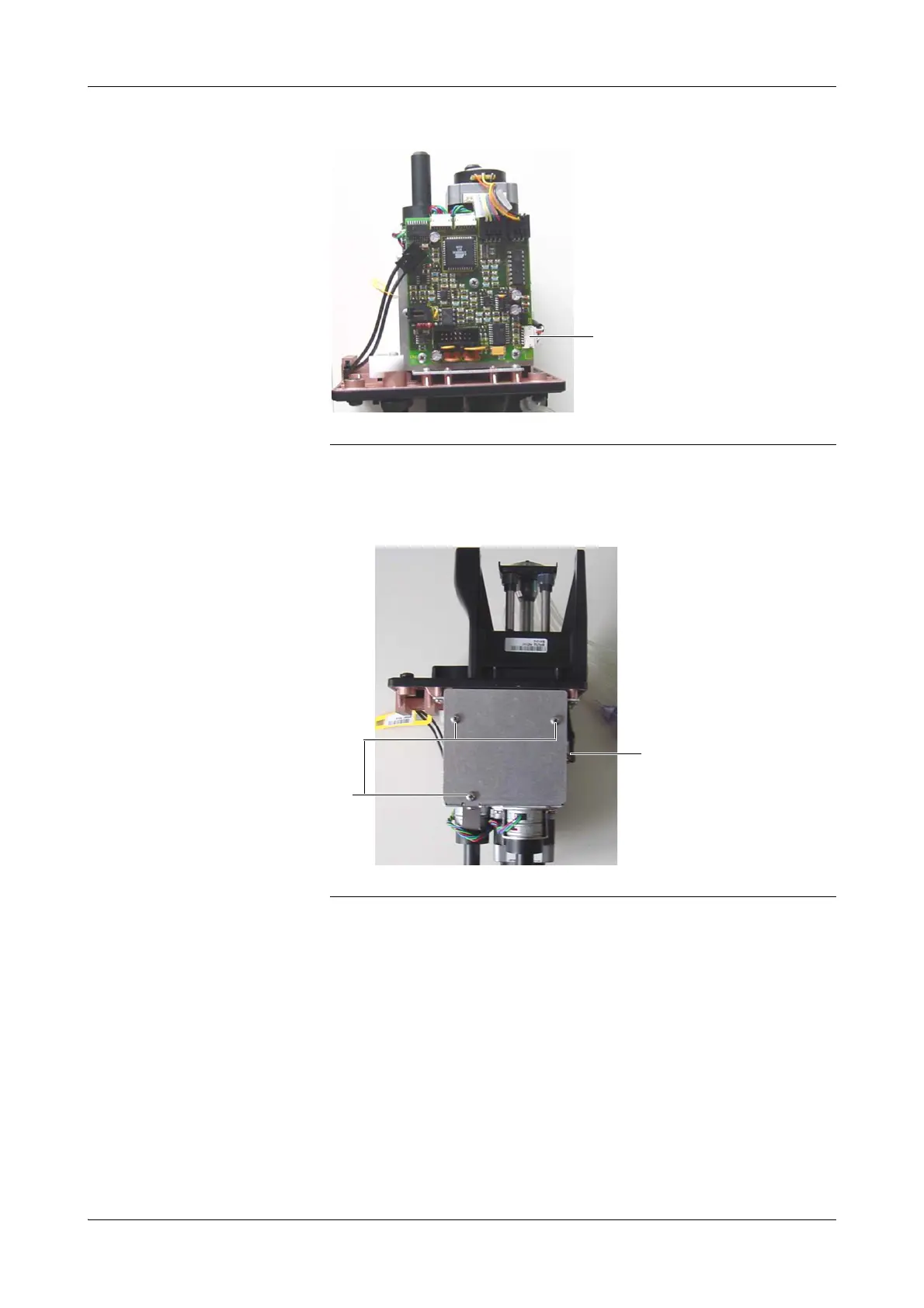

Figure B-13 T&D module - SCD cable
A Three screws holding the housing cover B Housing cover
Figure B-14 T&D module - housing cover on the bottom
A
B
A
