Rockwell Automation Publication 2198-UM005C-EN-P - February 2022 15
Chapter 1 Start
Drive Hardware and Input
Power Configurations
Typical Kinetix 5300 systems include single-phase and three-phase standalone
configurations.
In this example, a single drive is shown with input power to the standard AC
and 24V DC input connectors.

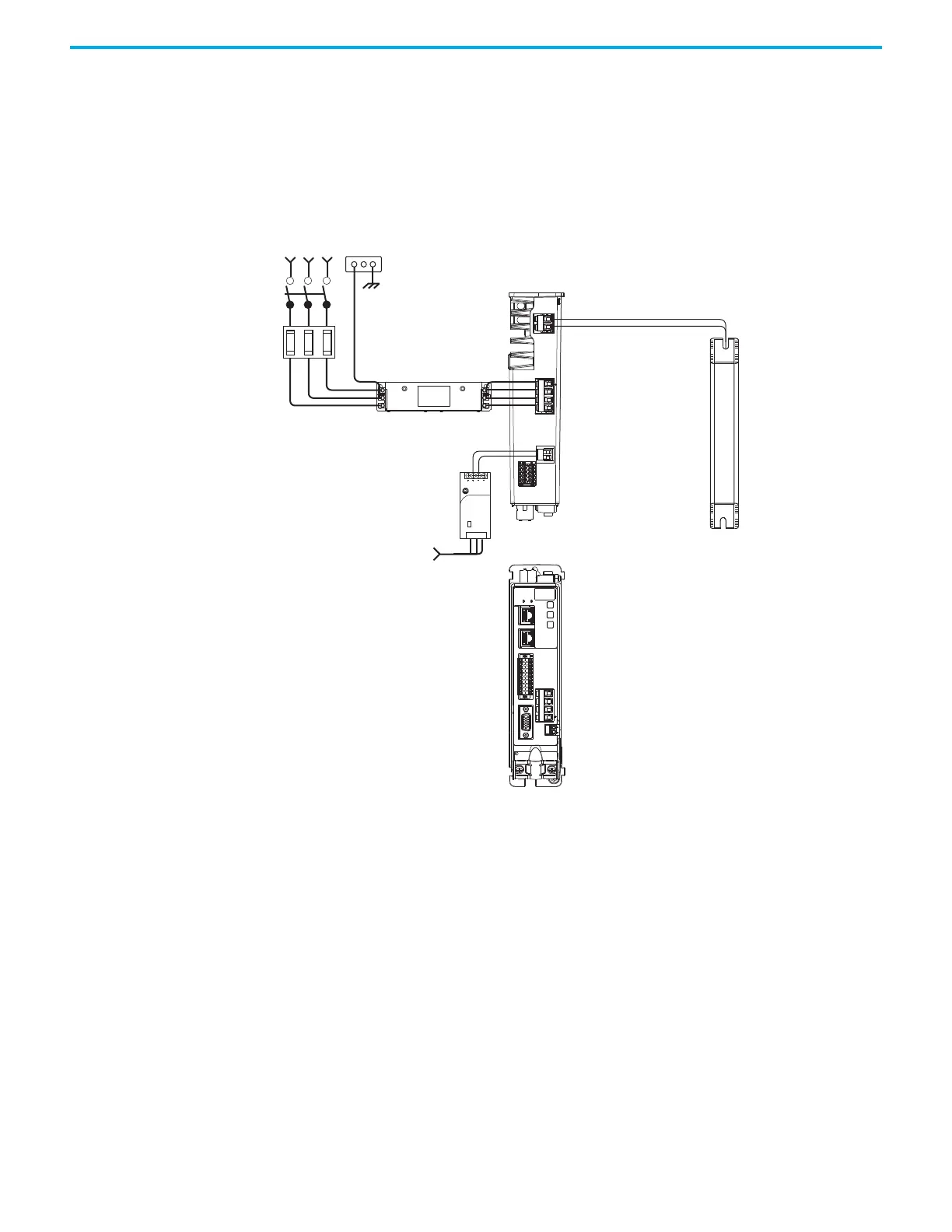

Figure 1 - Typical Kinetix 5300 Standalone Installation
1606-XL
Power Supply
Input
Allen-Bradley
L3L2
L1
24+
DC+ SH
24-
SB+
SB-
S1
SC
S2
MBRK
W
V
U
1
10
1
2
MFB
Single-phase or
Three-phase
Input Power
Line
Disconnect
Device
Circuit
Protection
2097-Rx or 2198-Rxxxx
Shunt Resistor
(optional component)
2198-Cxxxx-ERS Drive
(top view)
AC Input Power
Bonded Cabinet
Ground Bus
AC Input Wiring to Standard
Input Connector
1606-XLxxx
24V DC Control, Digital Inputs,
and Motor Brake Power
(customer-supplied)
2198-Cxxxx-ERS Drive
(front view)
24V DC Input Wired to
Standard Input Connector
2198-DB08-F or
2198-DBRxx-F
AC Line Filter
(required for CE)
