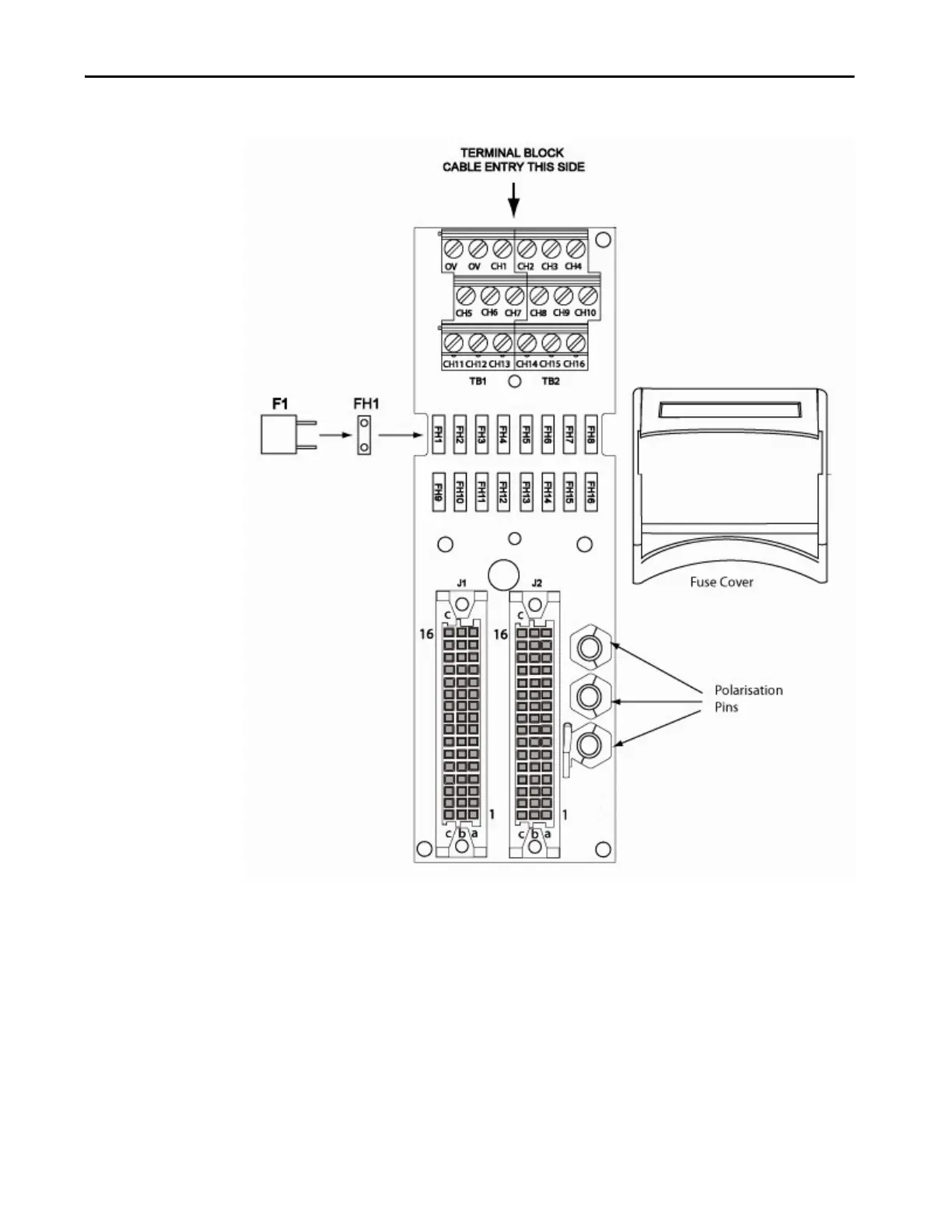

Figure 6 - Top View
T9892 Digital Output Termination Assembly
The T9892 Terminal Assembly module operates in conjunction with the
T9451 Digital Output Module and provides 8 dual configuration output
channels. It shares the same pin-out as the standard AADvance T9852 Digital
Output Terminal Assembly and has the same coding peg configuration. The
difference is that the T9892 has a separate connector for the field power input
voltage connections (the left most terminal block shown below). It also has
additional fusing to give extra protection against field faults.
