38 Rockwell Automation Publication ICSTT-RM447M-EN-P - July 2019
Chapter 2 The AADvance Safety Controller

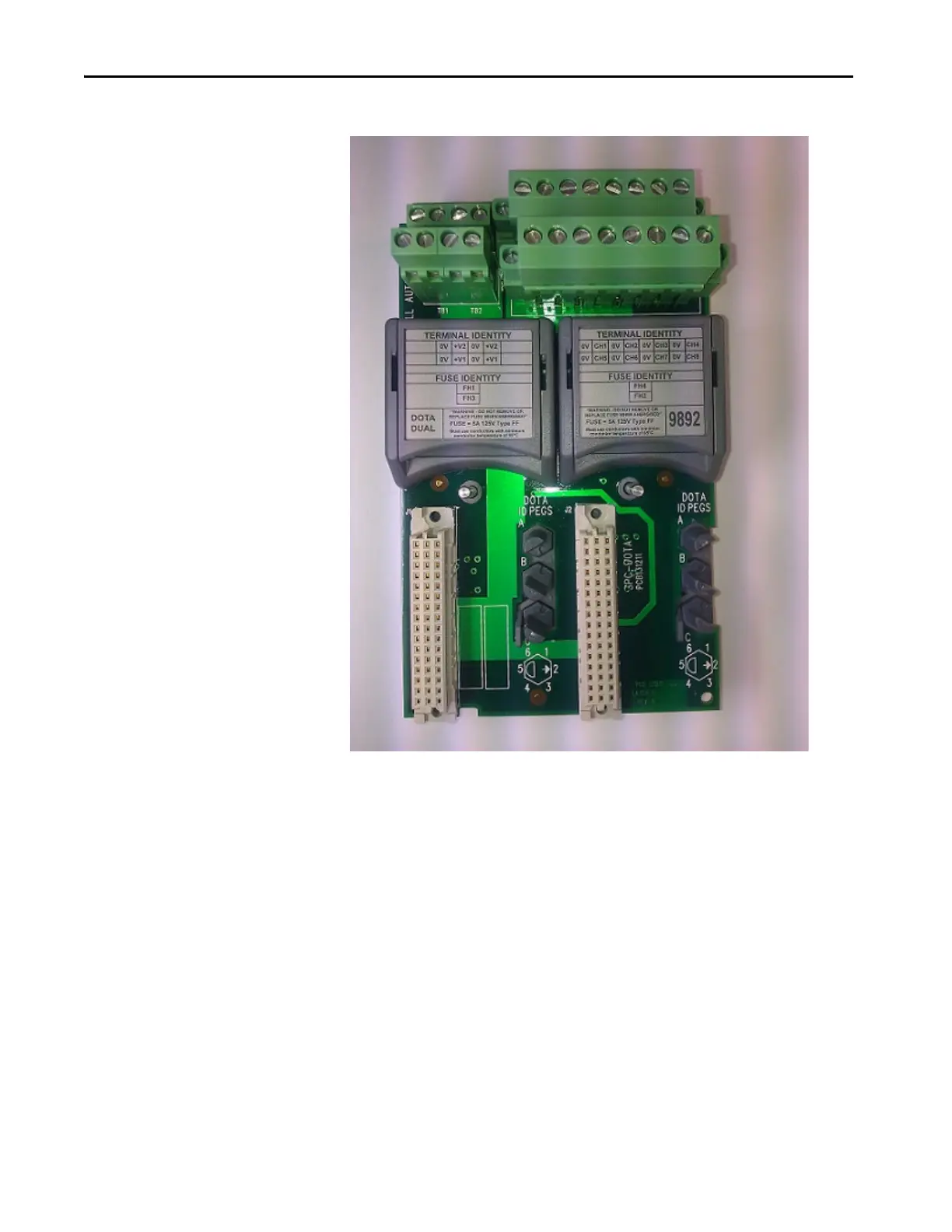

Figure 7 - T9892 Dual Termination Assembly
Field Wiring
Field device wiring connections are made to industry-standard screw terminal
blocks on the termination assemblies. Terminals are easy to access without
needing to dismantle assemblies. The specification for the field wiring sizes is
given in the topic "Power and External Connector Wiring Requirements".
This illustration shows field wiring connections at the termination assemblies.
