Appendix B Accessories and Dimensions
IP 20/Open Type – Frame E
Control Module Fan Kit
Specifications 25-FAN1-70C 25-FAN2-70C
Rated Voltage 24V DC
Operation Voltage 14...27.6V DC
Input Current 0.1 A 0.15 A
Speed (Reference) 7000 rpm 4500 ± 10% rpm
Air Flow (At zero static pressure) max
0.575 m
3
/min 1.574 m
3
/min
Air Pressure (At zero air flow) min
7.70 mm H
2
O 9.598 mm H
2
O
Acoustical Noise 40.5 dB-A 46.0 dB-A
Insulation Type UL Class A
Frame Size Frame A...D Frame E
Wire Size
0.32 mm
2
(22 AWG)
Torque 0.29...0.39 N•m (2.6...3.47 lb•in)
Esc
Sel

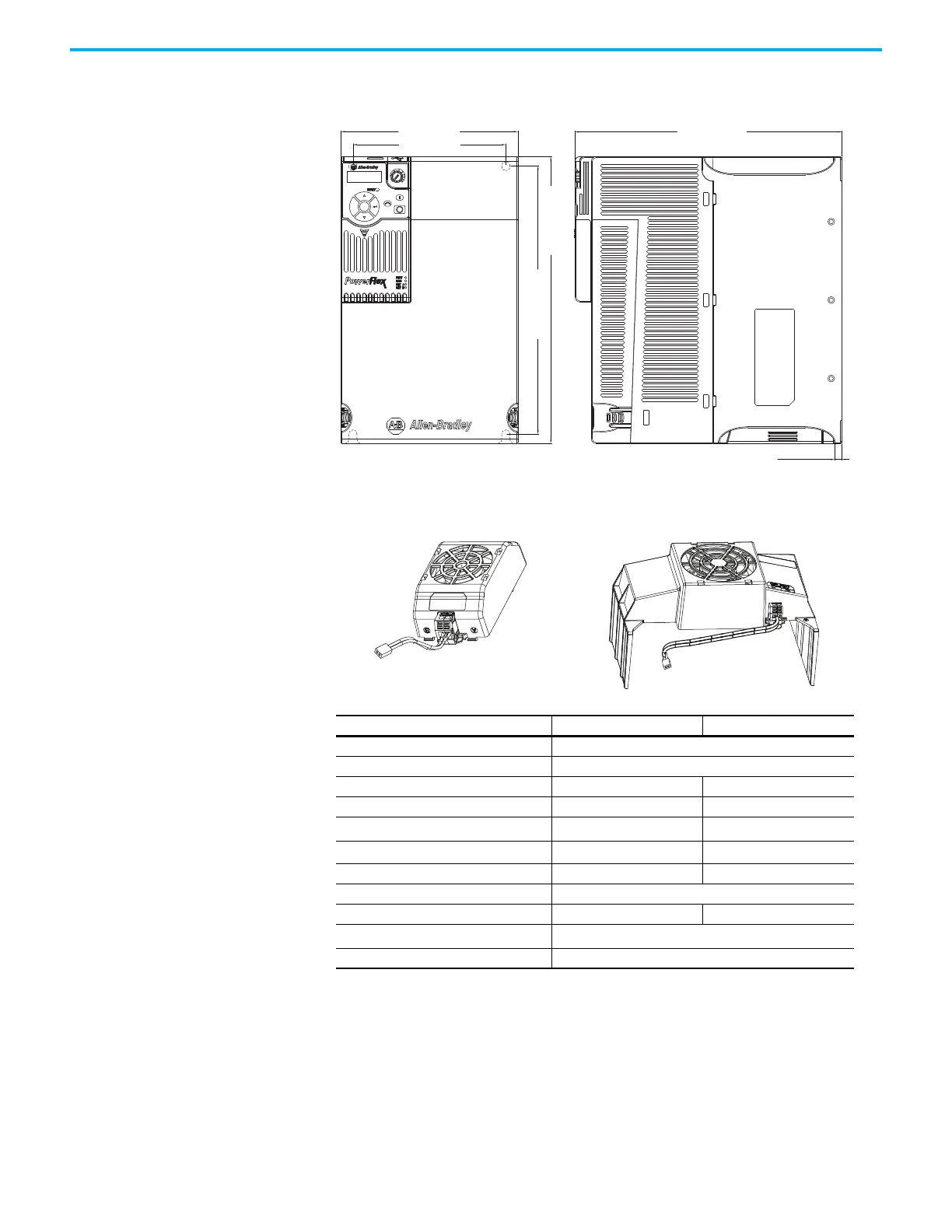

185.0 (7.28)
160.0 (6.30)
300.0 (11.81)
280.0 (11.02)
279.0 (10.98)
7.6 (0.30)
Dimensions are in millimeters and (inches)
25-FAN1-70C 25-FAN2-70C
