Chapter 2 Start Up

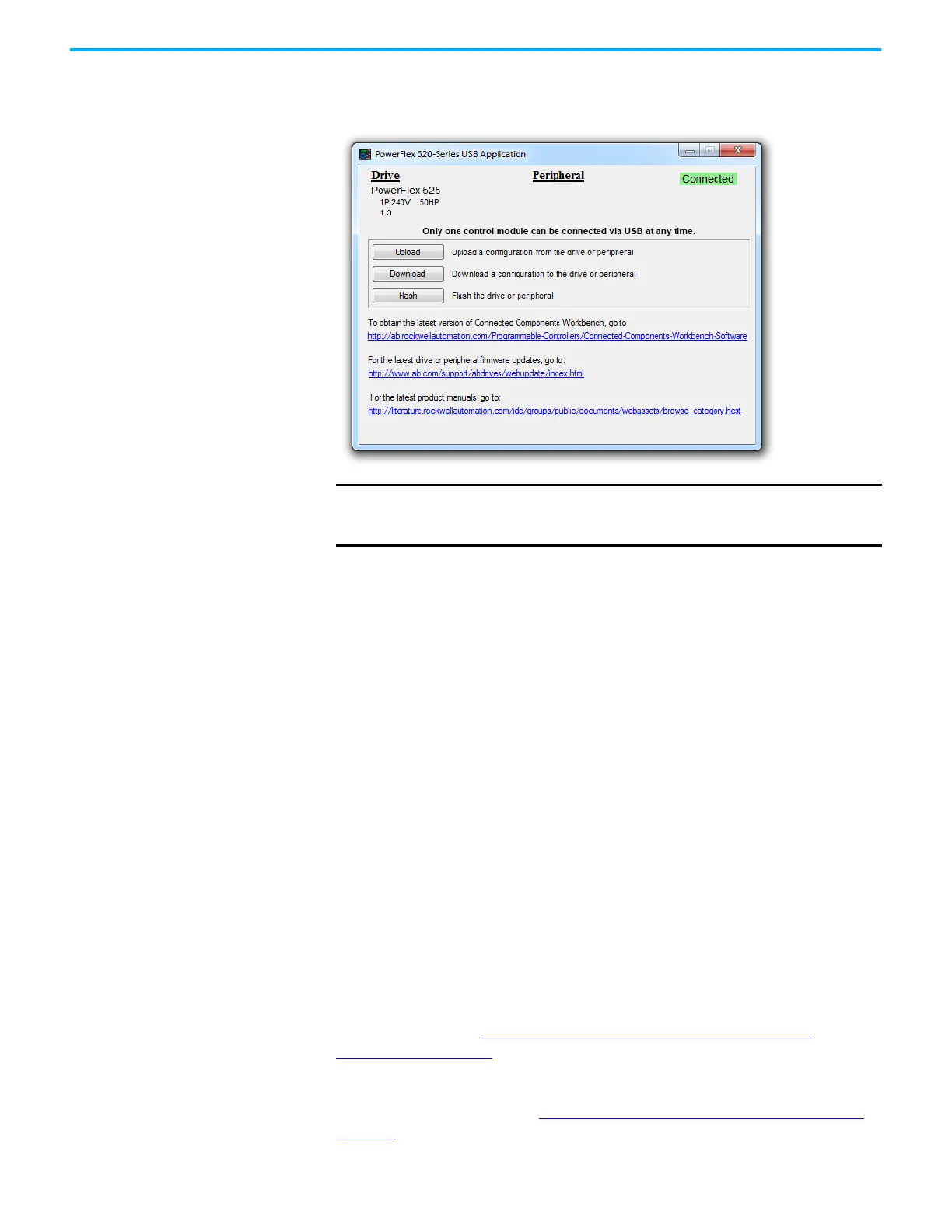

Double-click the PF52XUSB.EXE file to launch the USB utility application. The
main menu is displayed. Follow the program instructions to upgrade the
firmware or upload/download configuration data.
Limitation in Downloading .pf5 Configuration Files with the USB Utility
Application
Before downloading a .pf5 configuration file using the USB utility application,
parameter C169 [MultiDrv Sel] in the destination drive must match the
incoming configuration file. If it does not, set the parameter manually to
match and then cycle drive power. Also, the drive type of the .pf5 file must
match the drive.
This means you cannot apply a multi-drive configuration using the USB utility
application to a drive in single mode (parameter C169 [MultiDrv Sel] set to 0
“Disabled”), or apply a single mode configuration to a drive in multi-drive
mode.
Using Drive Startup in CCW
or Logix Designer
application
To use the PowerFlex 525 Startup Wizard in Connected Components
Workbench software to automatically configure the parameters, make sure
you have installed the following:
• PowerFlex 525 drive firmware revision 5.001 or later.
• PowerFlex 525 drive Add-on Profile 5.07 or later.
• Latest drive database for Connected Components Workbench software.
For instructions, see Using Drive Startup in CCW or Logix Designer
application on page 66.
Alternatively, you can manually configure the parameters by using the drive
keypad. For instructions, see Manual Configuration Using Drive Keypad
on
page 256.
IMPORTANT
Make sure your PC is powered by an AC power outlet or has a fully
charged battery before starting any operation. This prevents the
operation from terminating before completion due to insufficient power.
