200 Rockwell Automation Publication 520-UM001K-EN-E - August 2021

Appendix B Accessories and Dimensions

Optional Accessories and

Kits

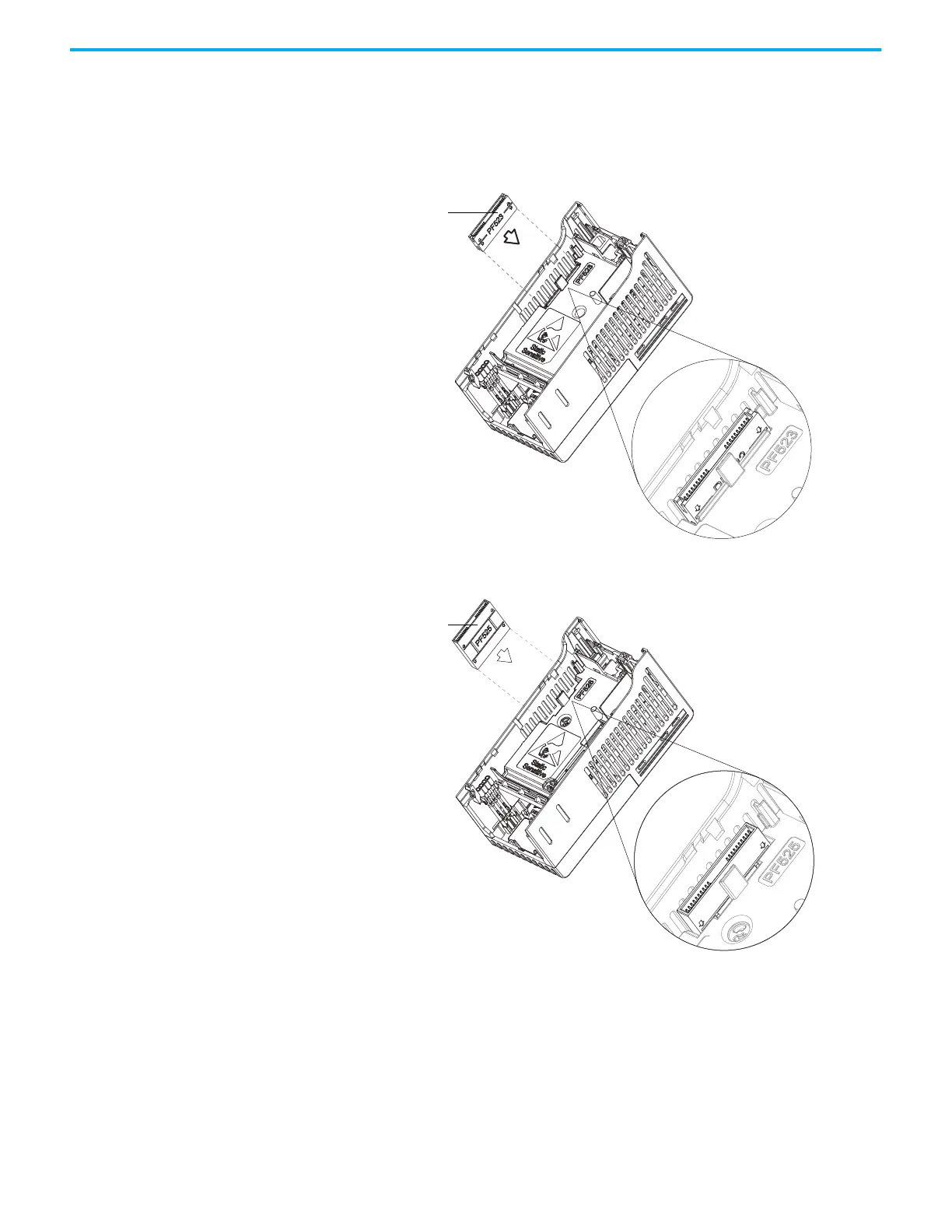

Installing a Communication Adapter

1. Insert the communication adapter interface connector into the Control

Module. Make sure the indicator line on the connector is aligned with the

surface of the Control Module.

2. Align the connectors on the communication adapter to the

communication adapter interface connector, then push the back cover

down.

Communication

adapter interface

connector

For PowerFlex 523

For PowerFlex 525

Communication

adapter interface

connector
