Appendix B Accessories and Dimensions

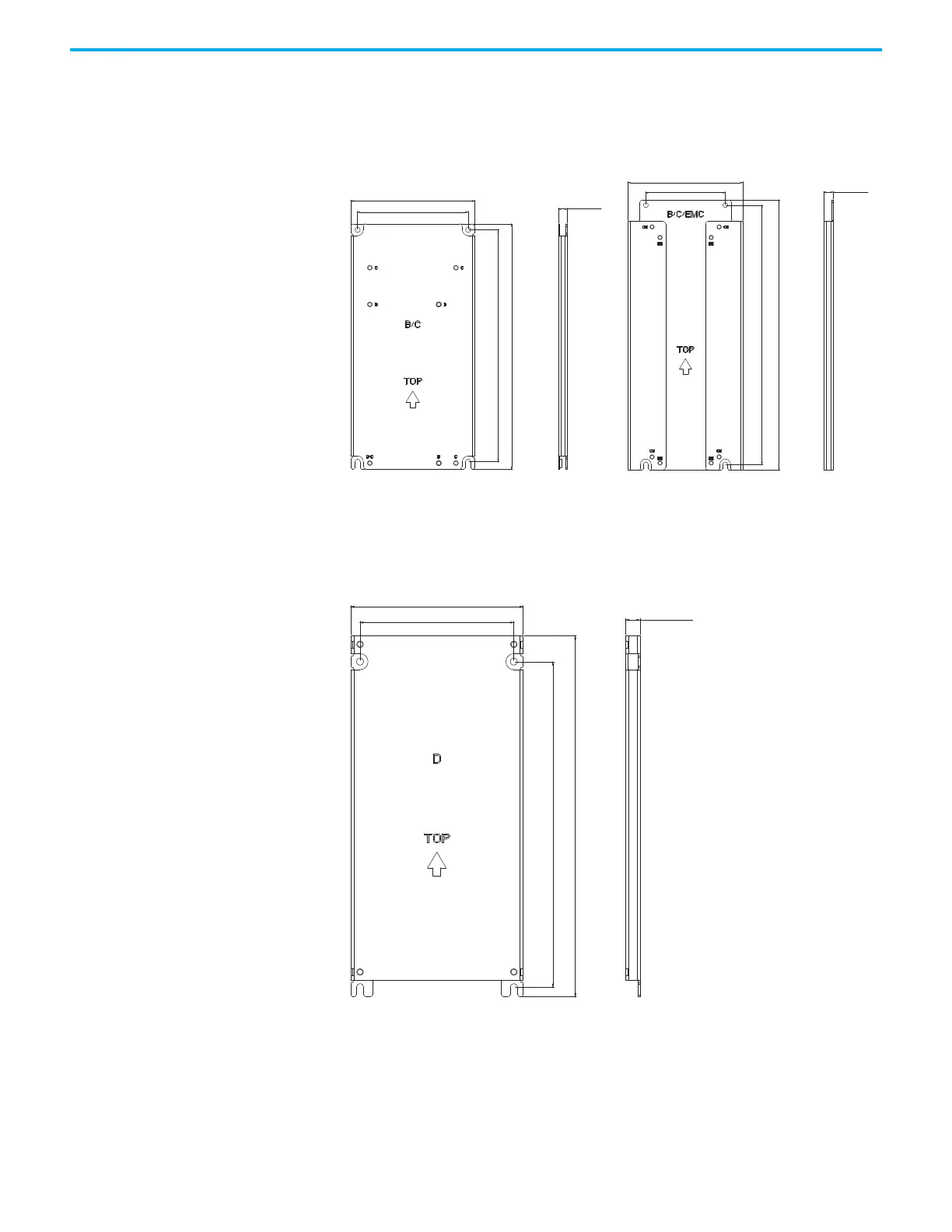

Adapter Plate - Frame C
Adapter Plate - Frame D
Dimensions are in millimeters and (inches)
Frame C
25-AP0-FC
Frame C
25-AP1-FC
130.0 (5.12)
116.0 (4.57)
260.0 (10.24)
245.5 (9.67)
9.4 (0.37)
130.0 (5.12)
90.0 (3.54)
296.5 (11.67)
309.0 (12.17)
10.6 (0.42)
Dimensions are in millimeters and (inches)
Frame D
25-AP0-FD
130.0 (5.12)
116.0 (4.57)
272.0 (10.71)
245.5 (9.67)
11.0 (0.43)
