Rockwell Automation Publication 520-UM001K-EN-E - August 2021 31

Chapter 1 Installation/Wiring

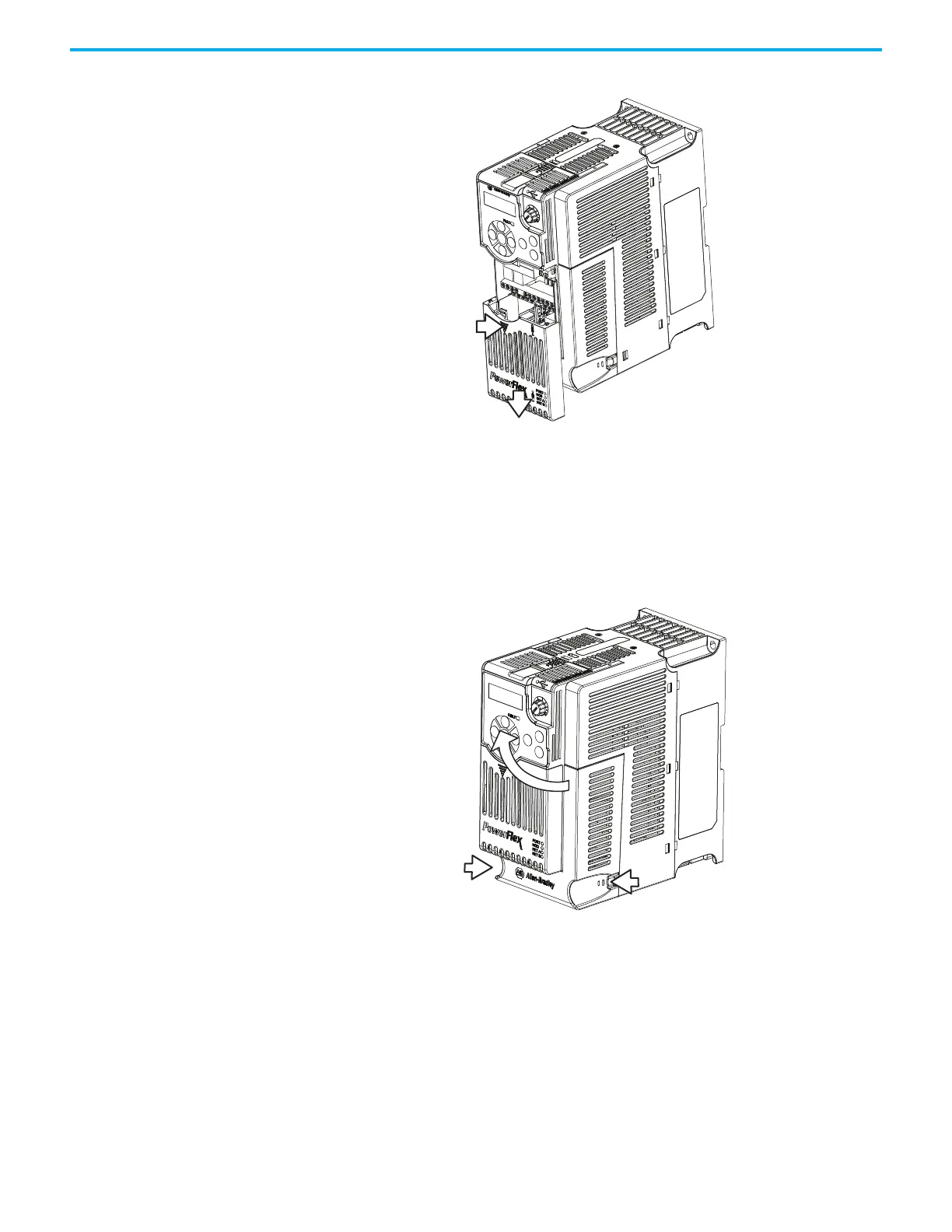

2. Slide the front cover down to remove from the Control Module.

Re-attach the front cover when wiring is complete.

Power Module Terminal

Guard

To access the power terminals, the terminal guard must be removed. To

remove:

1. Press and hold down the catch on both sides of the frame cover, then pull

out and swing upwards to remove (Frames B...E only).

2. Press and hold down the locking tab on the terminal guard.
