Rockwell Automation Publication 520-UM001K-EN-E - August 2021 59
Chapter 2 Start Up
Start, Stop, Direction, and Speed Control
Factory default parameter values allow the drive to be controlled from the
keypad. No programming is required to start, stop, change direction and
control speed directly from the keypad.
If a fault appears on power-up, see Fault Descriptions
on page 159 for an
explanation of the fault code.
Variable Torque Fan/Pump Applications
For improved motor and drive performance, tune the motor in SVC mode
using parameter P040 [Autotune]. If V/Hz mode is selected, use parameter
A530 [Boost Select] to adjust the boost.

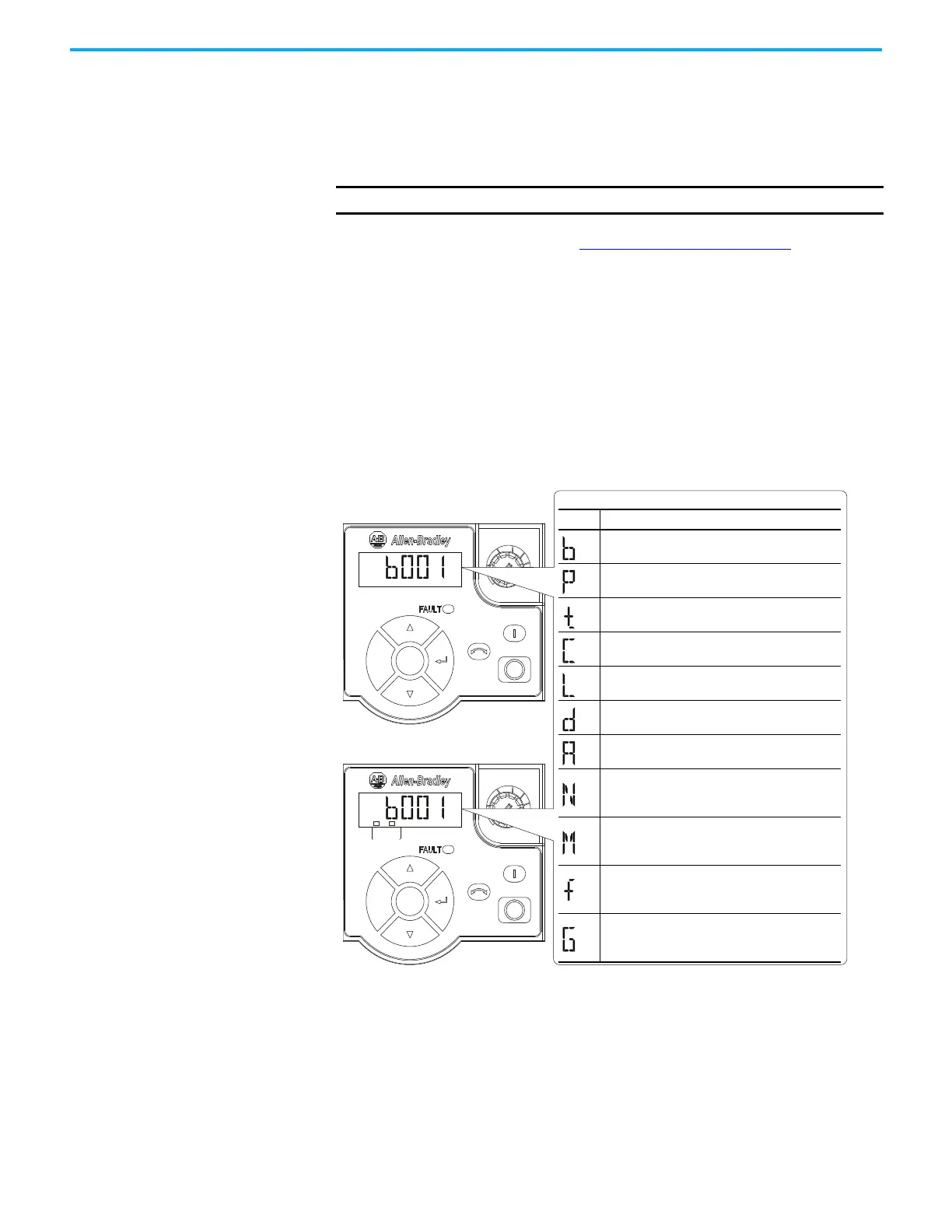

Display and Control Keys
IMPORTANT
To disable reverse operation, see A544 [Reverse Disable].
Esc
Sel
F
W
D
Esc
Sel
F
W
D
ENET LINK
EtherNet/IP
Menu Parameter Group and Description
Basic Display
Commonly viewed drive operating conditions.
Basic Program
Commonly used programmable functions.
Terminal Blocks
Programmable terminal functions.
Communications
Programmable communication functions.
Logic (PowerFlex 525 only)
Programmable logic functions.
Advanced Display
Advanced drive operating conditions.
Advanced Program
Remaining programmable functions.
Network
Network functions that are shown only when a
comm card is used.
Modified
Functions from the other groups with values
changed from default.
Fault and Diagnostic
Consists of list of codes for specific fault
conditions.
AppView and CustomView
Functions from the other groups organized for
specific applications.
