Rockwell Automation Publication 520-UM001K-EN-E - August 2021 189
Appendix B Accessories and Dimensions

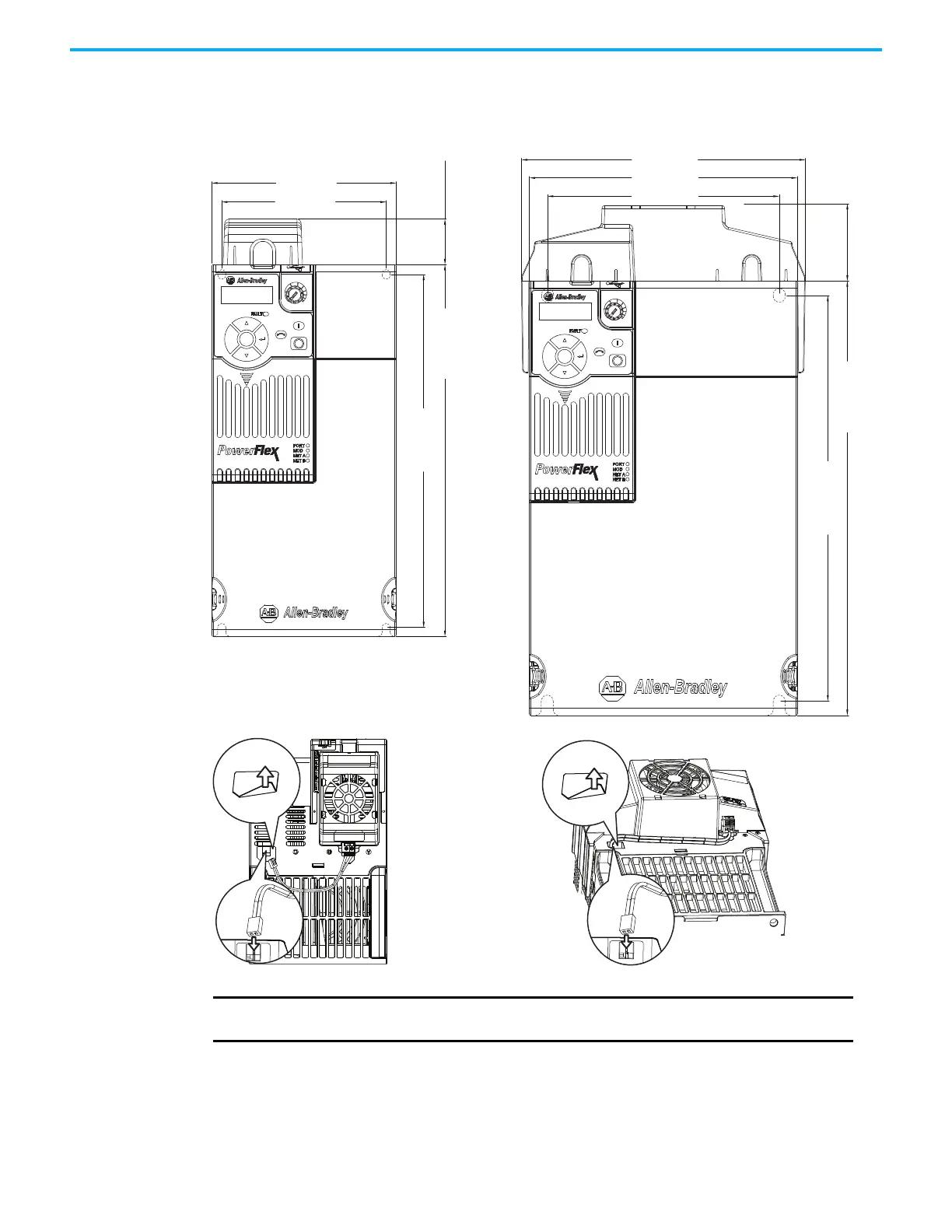

IP 20/Open Type with Control Module Fan Kit – Frame D...E
Esc
Sel
130.0 (5.12)
32.0 (1.26)
260.0 (10.24)
247.0 (9.72)
116.0 (4.57)
Esc
Sel
185.0 (7.28)
196.0 (7.72)
52.0 (2.05)
300.0 (11.81)
280.0 (11.02)
160.0 (6.30)
Dimensions are in millimeters and (inches)
Frame D Frame E
IMPORTANT
Remove the label to access the built-in 24V supply on drive frames D and E for use with
the Control Module Fan Kit.
