3. Feed the redundant fan assembly power cables into the LV panel.
4. Terminate the redundant fan assembly power cables at the terminal
blocks in the LV panel.
Refer to your electrical drawings for termination points.
5. Connect the ground wire.
ATTENTION: The redundant fan assembly power cables must not touch any
sharp edges.

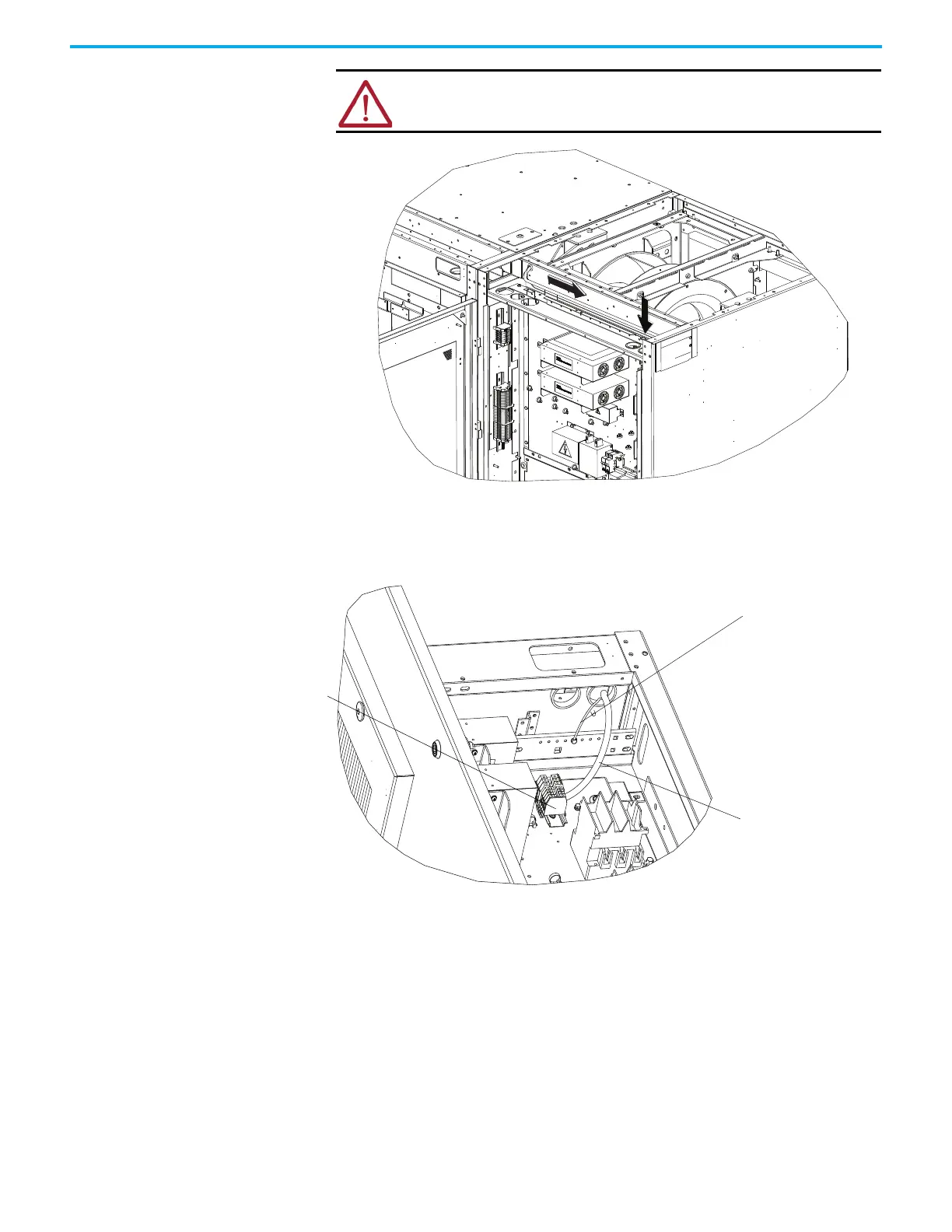

Fan Supply Terminal
Redundant Fan
Assembly
Power Cables
Redundant Fan
Assembly
Ground Wire
Common Mode Choke Cabinet
Viewed from Below
To Next Page
