Roland JD-XA - 12: Step Ph (Step Phaser); 13: Mlt Phaser (Multi Stage Phaser); 14: Inf Phaser (Infinite Phaser)

29
Eects

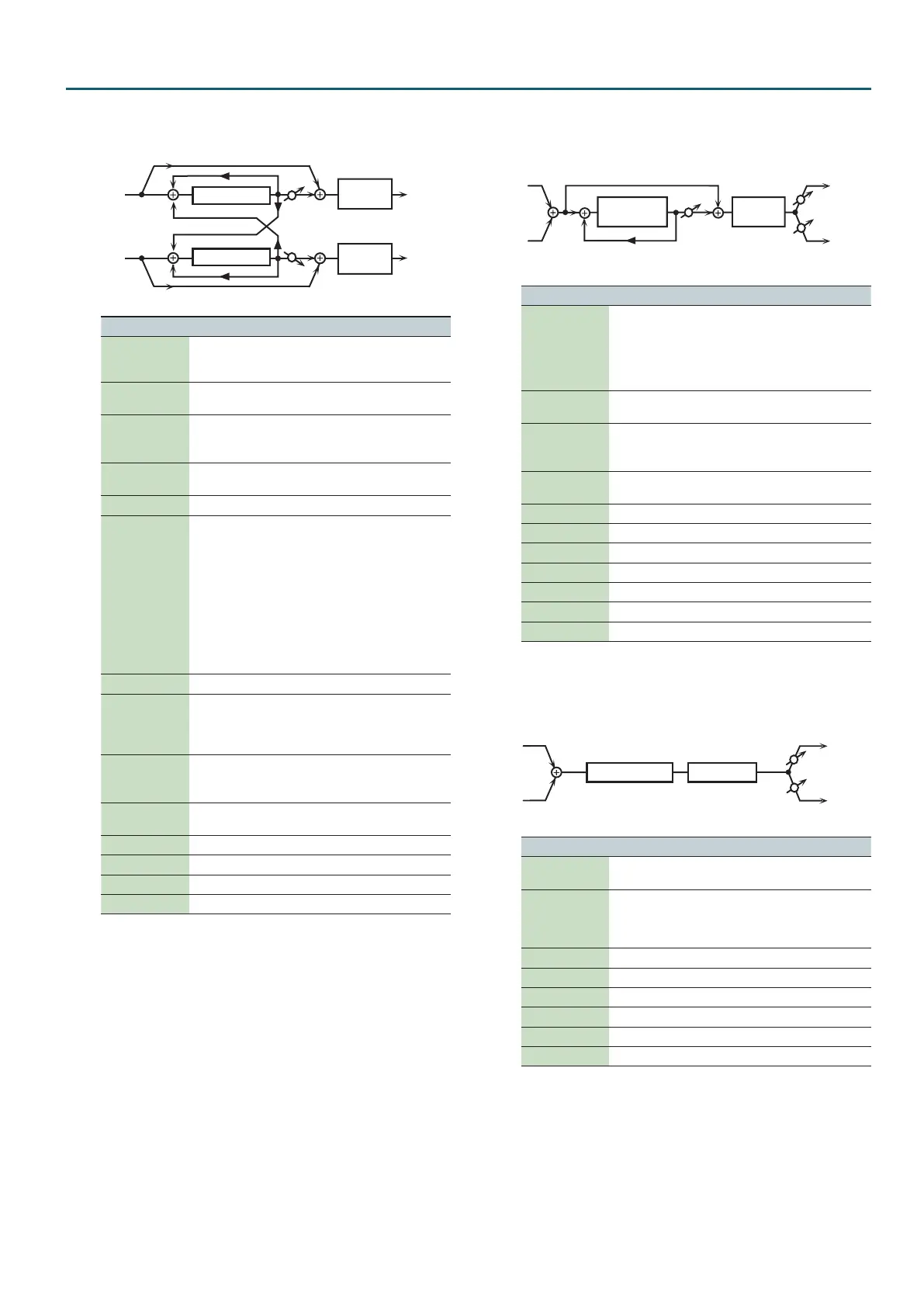

12: Step Ph
(Step Phaser)
This is a stereo phaser. The phaser eect will be varied gradually.
R in
R out
L in
L out
Step Phaser
Mix
2-Band
EQ
Step Phaser
2-Band
EQ
Mix
Parameter Value Explanation
Mode
4-STAGE,
8-STAGE,
12-STAGE
Number of phaser stages
Manual # 0–127
Center frequency at which the
sound is modulated
Sync Hz, NOTE
Hz: The Rate value is specied in Hz.
NOTE: The Rate value is specied as
a note value.
Rate #
0.05–10.00 Hz,
note
Modulation rate
Depth 0–127 Modulation depth
Polarity
INVERSE,
SYNCHRO
Selects whether the left and right
phase of the modulation will be the
same or the opposite.
INVERSE: The left and right phase
will be opposite.
When using a mono source, this
spreads the sound.
SYNCHRO: The left and right phase
will be the same.
Select this when inputting a stereo
source.
Resonance # 0–127 Amount of feedback
Feedback -98–+98%
Adjusts the proportion of the phaser
sound that is fed back into the
eect.
Negative (-) values invert the phase.
Step Sync Hz, NOTE
Hz: The Rate value is specied in Hz.
NOTE: The Rate value is specied as
a note value.
StepRate #
0.10–20.00 Hz,
note
Rate of the step-wise change in the
phaser eect
Mix # 0–127 Volume of phase-shifted sound
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level 0–127 Output volume
13: Mlt Phaser
(Multi Stage Phaser)
Extremely high settings of the phase dierence produce a deep
phaser eect.
Resonance
Mix
L in
R in
L out
R out
Pan R
Pan L
2-Band
EQ
Multi Stage
Phaser
Parameter Value Explanation
Mode
4-STAGE,
8-STAGE,
12-STAGE,
16-STAGE,
20-STAGE,
24-STAGE
Number of phaser stages
Manual # 0–127
Center frequency at which the
sound is modulated
Sync Hz, NOTE
Hz: The Rate value is specied in Hz.
NOTE: The Rate value is specied as
a note value.
Rate #
0.05–10.00 Hz,
note
Modulation rate
Depth 0–127 Modulation depth
Resonance # 0–127 Amount of feedback
Mix # 0–127 Volume of phase-shifted sound
Pan # L64–63R Stereo location of the output
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level 0–127 Output volume
14: Inf Phaser
(Innite Phaser)
A phaser that continues raising/lowering the frequency at which
the sound is modulated.
Infinite Phaser 2-Band EQ
L in
R in
L out
R out
Pan R
Pan L
Parameter Value Explanation
Mode 1, 2, 3, 4
Higher values will produce a deeper
phaser eect.
Speed # -100–+100
Speed at which to raise or
lower the frequency at which
the sound is modulated
(+: upward / -: downward)
Resonance # 0–127 Amount of feedback
Mix # 0–127 Volume of phase-shifted sound
Pan # L64–63R Stereo location of the output
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level 0–127 Output volume
