Roland JD-XA - 35: Mod Delay (Modulation Delay); 36: 3 Tap Delay; (3 Tap Pan Delay)

38
Eects

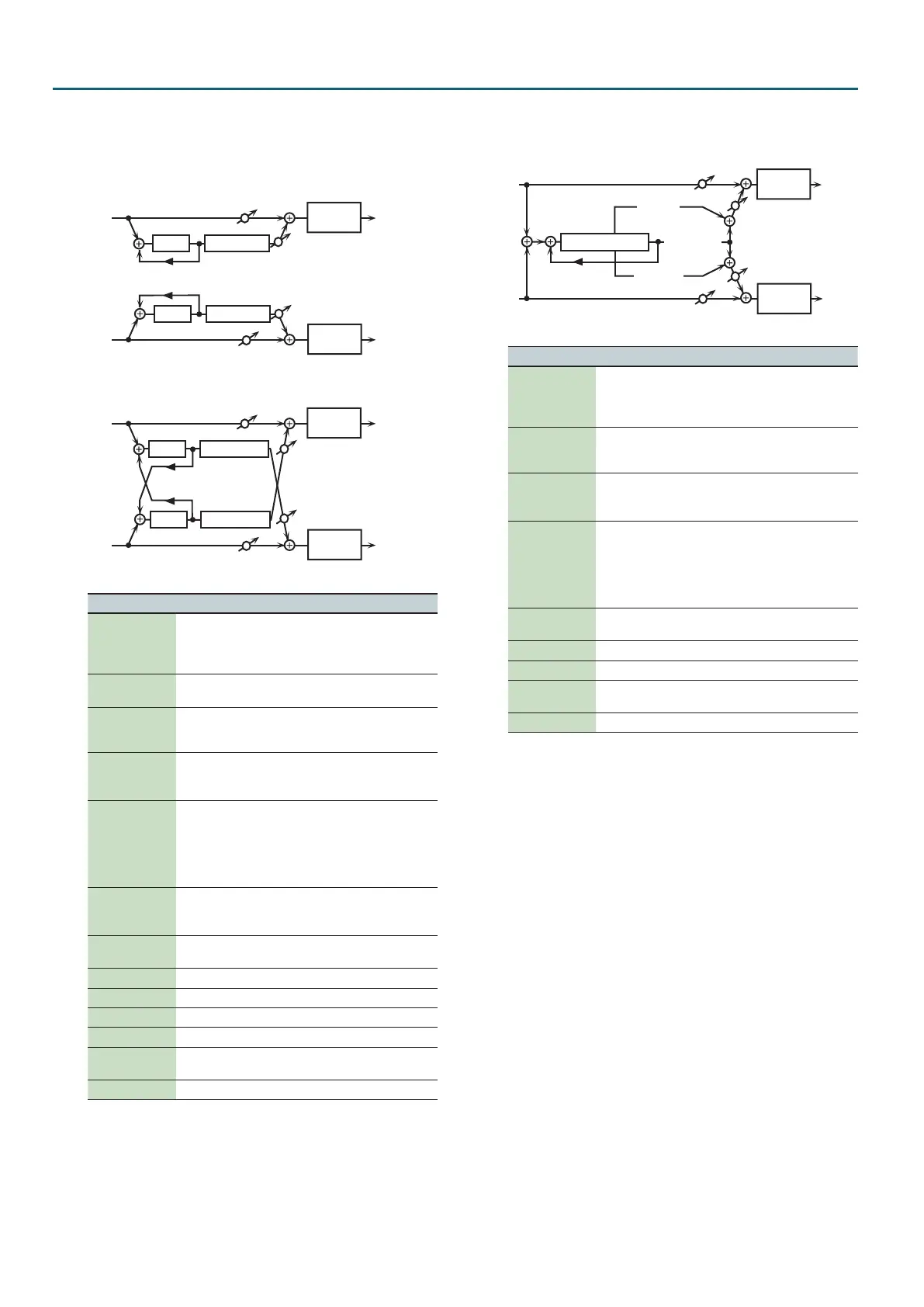

35: Mod Delay
(Modulation Delay)
Adds modulation to the delayed sound.
When Feedback Mode is NORMAL:
R in R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
When Feedback Mode is CROSS:
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Modulation
Modulation
Parameter Value Explanation
Dly L/R Sync
(Delay Left/Right Sync)
msec, NOTE
msec: The Delay L/R value is
specied in msec.
NOTE: The Delay L/R value is
specied as a note value.
Delay L/R
(Delay Left/Right)
0–1300 ms, note
Adjusts the time until the delay
sound is heard.
FbackMode
(Feedback Mode)
NORMAL, CROSS
Selects the way in which delay
sound is fed back into the eect
(See the gures.).
Feedback # -98–+98%
Adjusts the amount of the delay
sound that’s fed back into the eect.
Negative (-) values invert the phase.
HF Damp
200–8000 Hz,
BYPASS
Adjusts the frequency above which
sound fed back to the eect is
ltered out.
If you do not want to lter out any
high frequencies, set this parameter
to BYPASS.
Sync Hz, NOTE
Hz: The Rate value is specied in Hz.
NOTE: The Rate value is specied as
a note value.
Rate #
0.05–10.00 Hz,
note
Frequency of modulation
Depth 0–127 Depth of modulation
Phase 0–180 deg Spatial spread of the sound
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output volume
36: 3Tap Delay
(3 Tap Pan Delay)
Produces three delay sounds; center, left and right.
L in
R in
L out
R out
Left Tap
Right Tap
Triple Tap Delay
2-Band
EQ
2-Band
EQ
Balance W
Balance D
Balance W
Balance D
Feedback
Center Tap
Parameter Value Explanation
Dly L/R/C Sync
(Delay Left/Right/Center
Sync)
msec, NOTE
msec: The Delay L/R/C value is
specied in msec.
NOTE: The Delay L/R/C value is
specied as a note value.
Delay L/R/C
(Delay Left/Right/Center)
0–2600 ms, note
Adjusts the time from the direct
sound until the left, right, and center
delayed sounds are heard
C Feedback #
(Center Feedback)
-98–+98%
Adjusts the amount of the delay
sound that’s fed back into the eect.
Negative (-) values invert the phase.
HF Damp
200–8000 Hz,
BYPASS
Adjusts the frequency above which
sound fed back to the eect is
ltered out.
If you do not want to lter out any
high frequencies, set this parameter
to BYPASS.
Left/Right/
Center Level
0–127 Volume of each delay sound
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output volume
