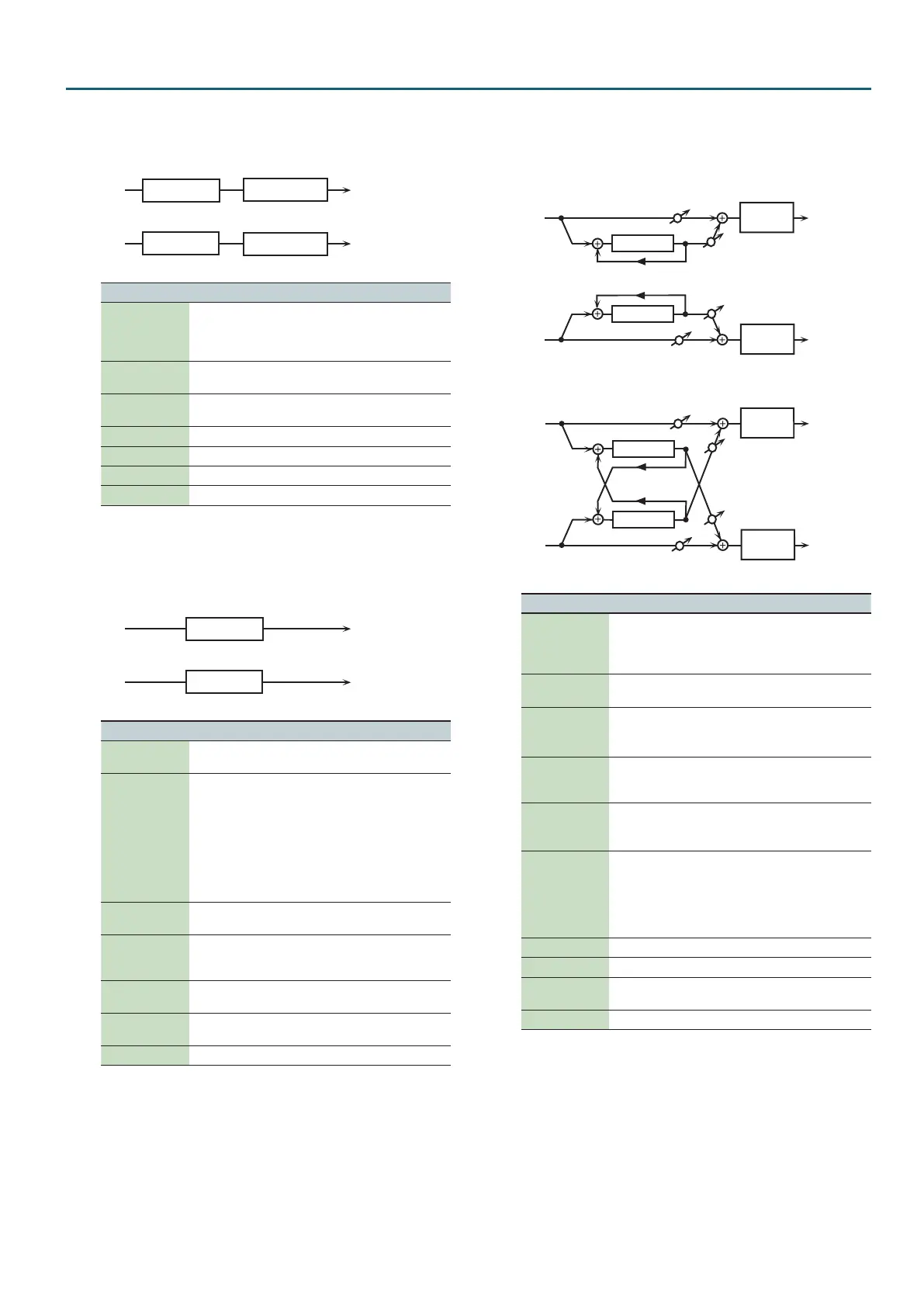

Roland JD-XA - 32: Limiter (Limiter); 33: Gate (Gate); 34: Delay (Delay)

37
Eects
32: Limiter
(Limiter)
Compresses signals that exceed a specied volume level,
preventing distortion from occurring.
L in
R in
L out
R out
Limiter
2-Band EQ
2-Band EQ
Limiter
Parameter Value Explanation
Release # 0–127
Adjusts the time after the signal
volume falls below the Threshold
Level until compression is no longer
applied.
Threshold # 0–127
Adjusts the volume at which
compression begins.
Ratio
1.5:1, 2:1, 4:1,
100:1
Compression ratio
Post Gain 0–+18 dB Adjusts the output gain.
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level # 0–127 Output volume
33: Gate
(Gate)
Cuts the reverb’s decay according to the volume of the sound
sent into the eect. Use this when you want to create an articial-
sounding decrease in the reverb’s decay.
L in
R in
L out
R out
Gate
Gate
Parameter Value Explanation
Threshold # 0–127
Volume level at which the gate
begins to close
Mode GATE, DUCK
Type of gate
GATE: The gate will close when
the volume of the original sound
decreases, cutting the original
sound.
DUCK (Ducking): The gate will close
when the volume of the original
sound increases, cutting the original
sound.
Attack 0–127
Adjusts the time it takes for the gate
to fully open after being triggered.
Hold 0–127
Adjusts the time it takes for the gate
to start closing after the original
sound falls beneath the Threshold.
Release 0–127
Adjusts the time it takes the gate to
fully close after the hold time.
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the eect sound (W)
Level 0–127 Output volume
34: Delay
(Delay)
This is a stereo delay.
When Feedback Mode is NORMAL:
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
When Feedback Mode is CROSS:
R in
R out
L in
L out
Feedback
Feedback
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
Delay
Delay
Parameter Value Explanation
Dly L/R Sync
(Delay Left/Right Sync)
msec, NOTE
msec: The Delay L/R value is
specied in msec.
NOTE: The Delay L/R value is
specied as a note value.
Delay L/R
(Delay Left/Right)
0–1300 ms, note
Adjusts the time until the delay
sound is heard.
Phase L/R
(Phase Left/Right)
NORMAL,
INVERSE
Phase of the delay sound
NORMAL: Non-inverted
INVERT: Inverted
FbackMode
(Feedback Mode)
NORMAL, CROSS
Selects the way in which delay
sound is fed back into the eect.
(See the gures.)
Feedback # -98–+98%
Adjusts the amount of the delay
sound that’s fed back into the eect.
Negative (-) values invert the phase.
HF Damp
200–8000
Hz, BYPASS
Adjusts the frequency above which
sound fed back to the eect is
ltered out.
If you do not want to lter out any
high frequencies, set this parameter
to BYPASS.
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output volume
