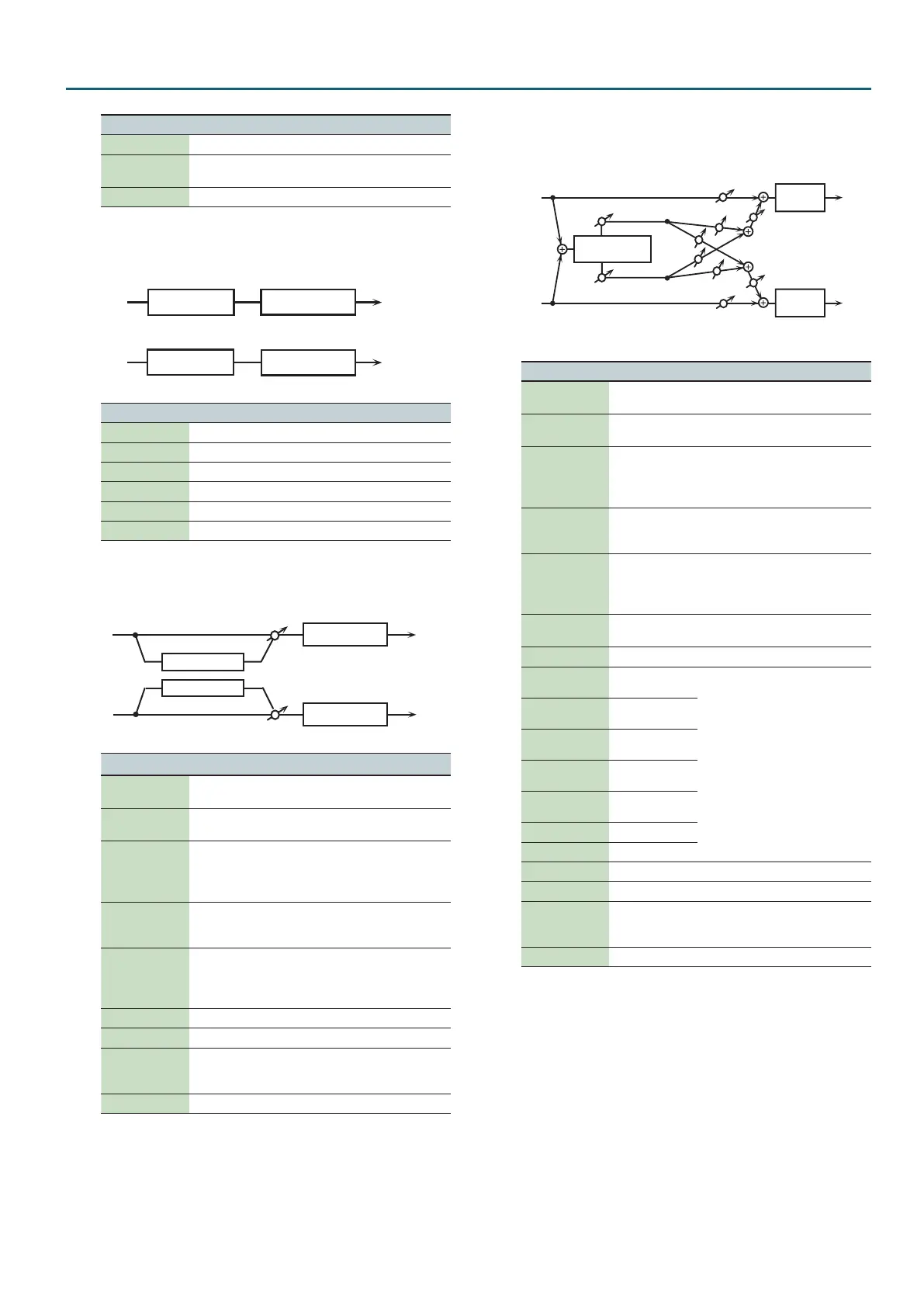

Roland JD-XA - 42: Bitcrusher (Bit Crusher); 43: Pitch Sft (Pitch Shifter); 44: 2 Voice PS (2 Voice Pitch Shifter)

41
Eects
Parameter Value Explanation
High Gain -15–+15 dB Amount of high-range boost/cut
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the eect sound (W)
Level # 0–127 Output volume
42: BitCrusher
(Bit Crusher)
This creates a lo- sound.
L in
R in
L out
R out
Bit Crusher
2-Band EQ
2-Band EQ
Bit Crusher
Parameter Value Explanation
Sample Rate # 0–127 Adjusts the sample rate.
Bit Down # 0–20 Adjusts the bit depth.
Filter # 0–127 Adjusts the lter depth.
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level 0–127 Output volume
43: Pitch Sft
(Pitch Shifter)
This is a stereo pitch shifter.
L in
R in
Pitch Shifter
Pitch Shifter
L out
R out
2-Band EQ
2-Band EQ
Parameter Value Explanation
Coarse #1 -24–+12 semi
Adjusts the pitch of the pitch shifted
sound in semitone steps.
Fine #1 -100–+100 cent
Adjusts the pitch of the pitch shifted
sound in 2-cent steps.
Delay Sync msec, NOTE
msec: The Dly Time/Note value is
specied in msec.
NOTE: The Dly Time/Note value is
specied as a note value.
Dly Time/Note
(Delay Time/Note)
0–1300 ms, note
Adjusts the delay time from the
direct sound until the pitch shifted
sound is heard.
Feedback # -98–+98%
Adjusts the proportion of the pitch
shifted sound that is fed back into
the eect.
Negative (-) values invert the phase.
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the pitch shifted
sound (W)
Level 0–127 Output volume
44: 2Voice PS
(2 Voice Pitch Shifter)
This shifts the pitch of the original sound. This can add two pitch
shifted sounds to the original sound.
L in
R in
L out
R out
Level 1
Balance W
Balance D
Balance W
Balance D
Level 2
Pan 2 R
Pan 1 L
Pan 1 R
Pan 2 L
2Voice
Pitch Shifter
2-Band
EQ
2-Band
EQ
Parameter Value Explanation
P1 Coarse #1
(Pitch1 Coarse)
-24–+12 semi
Adjusts the pitch of Pitch Shift 1 in
semitone steps.
P1 Fine #1
(Pitch1 Fine)
-100–+100 cent
Adjusts the pitch of Pitch Shift 1 in
2-cent steps.
P1Dly Sync
(Pitch1 Delay Sync)
msec, NOTE
msec: The P1 Delay value is specied
in msec.
NOTE: The P1 Delay value is
specied as a note value.
P1 Delay
(Pitch1 Delay)
0–1300 ms, note
Adjusts the delay time from the
direct sound until the Pitch Shift 1
sound is heard.
P1 Feedback #
(Pitch1 Feedback)
-98–+98%
Adjusts the proportion of the pitch
shifted sound that is fed back into
the eect.
Negative (-) values invert the phase.
Pitch1 Pan # L64–63R
Stereo location of the Pitch Shift 1
sound
Pitch1 Level 0–127 Volume of the Pitch Shift 1 sound
P2 Coarse #2
(Pitch2 Coarse)
-24–+12 semi
Settings of the Pitch Shift 2 sound.
The parameters are the same as for
the Pitch Shift 1 sound.
P2 Fine #2
(Pitch2 Fine)
-100–+100 cent
P2Dly Sync
(Pitch2 Delay Sync)
msec, NOTE
P2 Delay
(Pitch2 Delay)
0–1300 ms, note
P2 Feedback #
(Pitch2 Feedback)
-98–+98%
Pitch2 Pan # L64–63R
Pitch2 Level 0–127
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the pitch shifted
sound (W)
Level 0–127 Output volume
