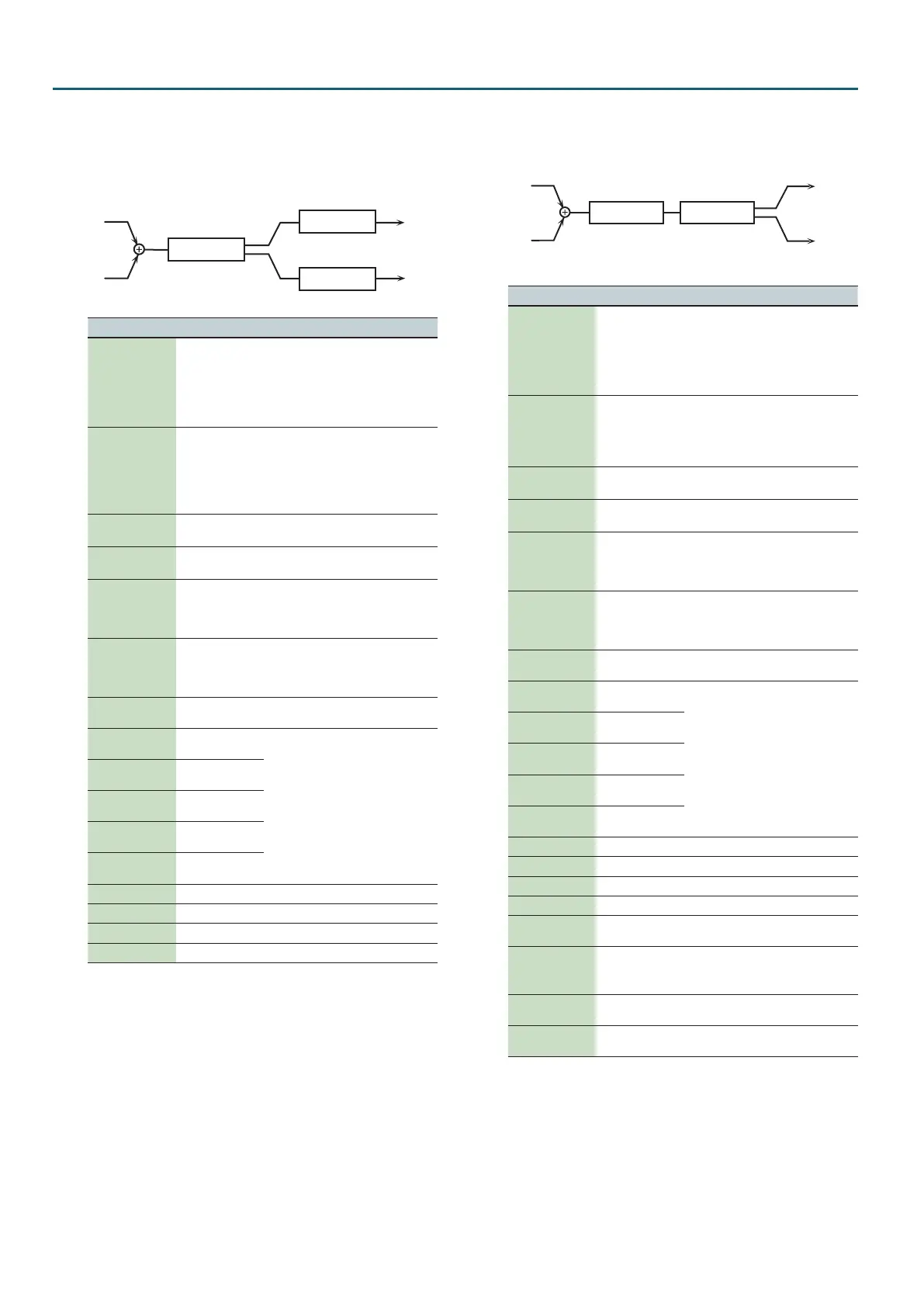

Roland JD-XA - 20: Rotary 2; (Rotary 2); (Rotary 3)

32
Eects
20: Rotary 2
(Rotary 2)
This type provides modied response for the rotary speaker, with
the low end boosted further.
This eect features the same specications as the VK-7’s built-in
rotary speaker.
L out
R out
L in
R in
Rotary
2-Band EQ
2-Band EQ
Parameter Value Explanation
Speed # SLOW, FAST
Rotational speed of the rotating
speaker
SLOW: Slows down the rotation to
the Slow Rate.
FAST: Speeds up the rotation to the
Fast Rate.
Brake # OFF, ON
Switches the rotation of the rotary
speaker.
When this is turned on, the rotation
will gradually stop. When it is turned
o, the rotation will gradually
resume.
Wf Slow
(Woofer Slow Speed)
0.05–10.00 Hz
Low-speed rotation speed of the
woofer
Wf Fast
(Woofer Fast Speed)
0.05–10.00 Hz
High-speed rotation speed of the
woofer
Wf Trans Up
(Woofer Trans Up)
0–127
Adjusts the rate at which the
woofer rotation speeds up when
the rotation is switched from Slow
to Fast.
Wf Trans Dw
(Woofer Trans Down)
0–127
Adjusts the rate at which the woofer
rotation speeds down when the
rotation is switched from Fast to
Slow.
Wf Level
(Woofer Level)
0–127 Volume of the woofer
Tw Slow
(Tweeter Slow Speed)
0.05–10.00 Hz
Settings of the tweeter
The parameters are the same as for
the woofer.
Tw Fast
(Tweeter Fast Speed)
0.05–10.00 Hz
Tw Trans Up
(Tweeter Trans Up)
0–127
Tw Trans Dw
(Tweeter Trans Down)
0–127
Tw Level
(Tweeter Level)
0–127
Spread 0–10 Sets the rotary speaker stereo image.
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level # 0–127 Output volume
21: Rotary 3
(Rotary 3)
This type includes an overdrive. By distorting the sound you can
produce the intense organ sound used in hard rock.
L out
R out
RotaryOverdrive
L in
R in
Parameter Value Explanation
Speed # SLOW, FAST
Rotational speed of the rotating
speaker
SLOW: Slows down the rotation to
the Slow Rate.
FAST: Speeds up the rotation to the
Fast Rate.
Brake # OFF, ON
Switches the rotation of the rotary
speaker. When this is turned on, the
rotation will gradually stop. When
it is turned o, the rotation will
gradually resume.
Wf Slow
(Woofer Slow Speed)
0.05–10.00 Hz
Low-speed rotation speed of the
woofer
Wf Fast
(Woofer Fast Speed)
0.05–10.00 Hz
High-speed rotation speed of the
woofer
Wf Trans Up
(Woofer Trans Up)
0–127
Adjusts the rate at which the
woofer rotation speeds up when
the rotation is switched from Slow
to Fast.
Wf Trans Dw
(Woofer Trans Down)
0–127
Adjusts the rate at which the woofer
rotation speeds down when the
rotation is switched from Fast to
Slow.
Wf Level
(Woofer Level)
0–127 Volume of the woofer
Tw Slow
(Tweeter Slow Speed)
0.05–10.00 Hz
Settings of the tweeter
The parameters are the same as for
the woofer.
Tw Fast
(Tweeter Fast Speed)
0.05–10.00 Hz
Tw Trans Up
(Tweeter Trans Up)
0–127
Tw Trans Dw
(Tweeter Trans Down)
0–127
Tw Level
(Tweeter Level)
0–127
Spread 0–10 Sets the rotary speaker stereo image.
Low Gain -15–+15 dB Amount of low-range boost/cut
High Gain -15–+15 dB Amount of high-range boost/cut
Level # 0–127 Output volume
OD Switch
(Overdrive Switch)
OFF, ON Overdrive on/o
OD Gain #
(Overdrive Gain)
0–127
Overdrive input level
Higher values will increase the
distortion.
OD Drive #
(Overdrive Drive)
0–127 Degree of distortion
OD Level
(Overdrive Level)
0–127 Volume of the overdrive
