About the Home Screen
Preamp Setting Screen
Touching the [Preamp] icon at the track status screen makes the display change to the following screen. When this screen is
displayed, you can check the preamp settings for the connected digital snake devices. You can check the channels designated for
recording on the R-1000.
* Target channels are the source channels assigned to the R-1000’s tracks on its patchbay.
In the [REAC] menu, setting [PREAMP CONTROL] to ON lets you change the settings for the digital snake device’s preamp by remote control.
When this is set to OFF, you can view the settings, but they cannot be changed by remote control. For information on [PREAMP CONTROL], refer
to “Menu List” (p. 71).

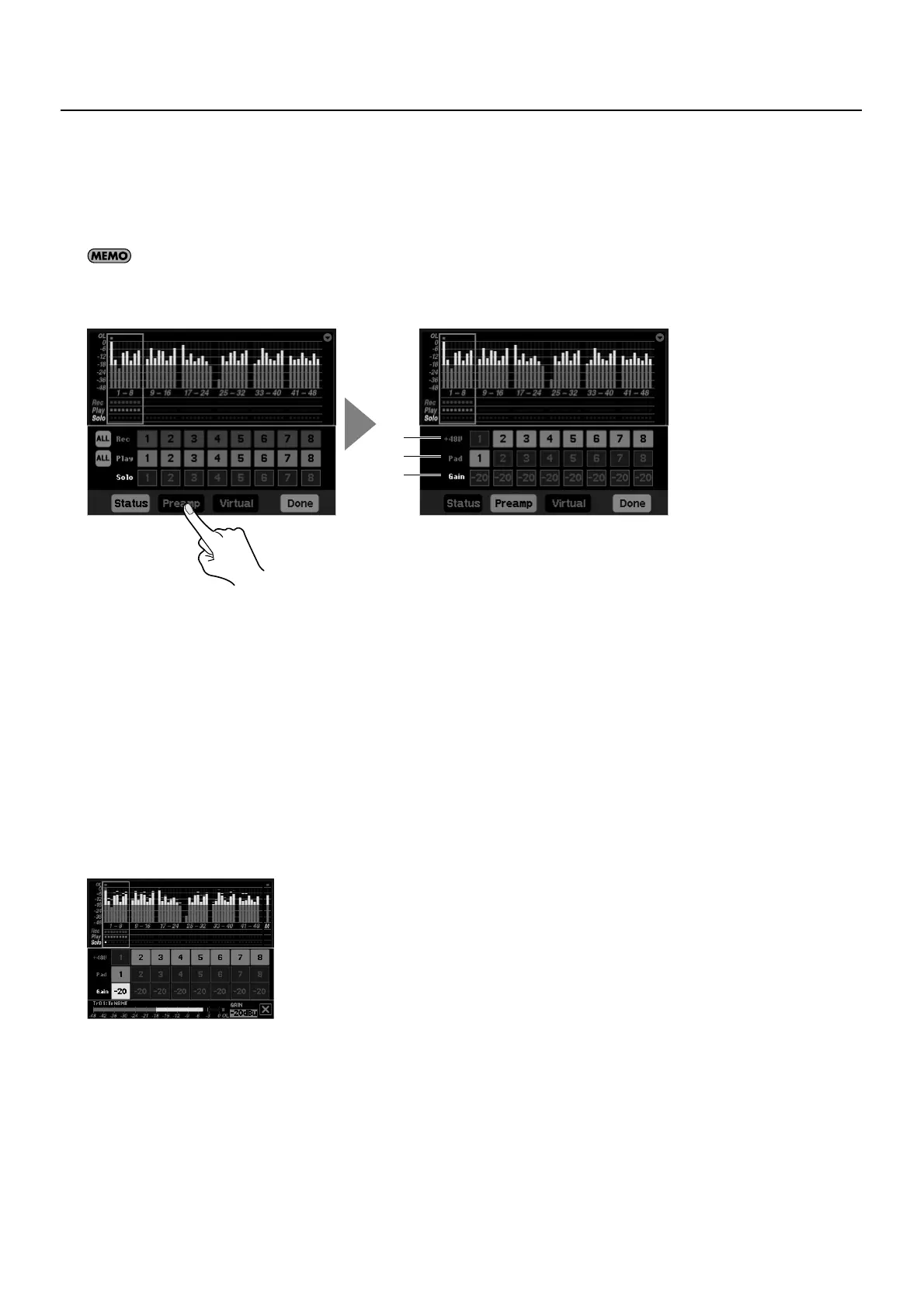

fig.preamp-status.eps
1. +48V Display
This displays the status of phantom power supply. Phantom power is supplied from the channel whose number is highlighted in
orange.
2. Pad Display
This displays whether pad is on or off. Pad is applied to the channel whose number is highlighted in orange, and the input level of
the digital snake device is attenuated by 20 dB.
3. Gain Display
This displays the preamp gain. Touching the gain value displays a screen for adjusting gain. You can adjust the preamp gain by
turning the [JOG/VALUE] dial while this screen is displayed.
When you have finished adjusting the value, touch the [X] icon on the screen to go back to the original screen.
fig.preamp-gain-control.eps
1
2
3
