Rotax 914 series Maintenance Manual

BRP-Rotax
Maintenance Manual
72-00-00
page 42
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02622

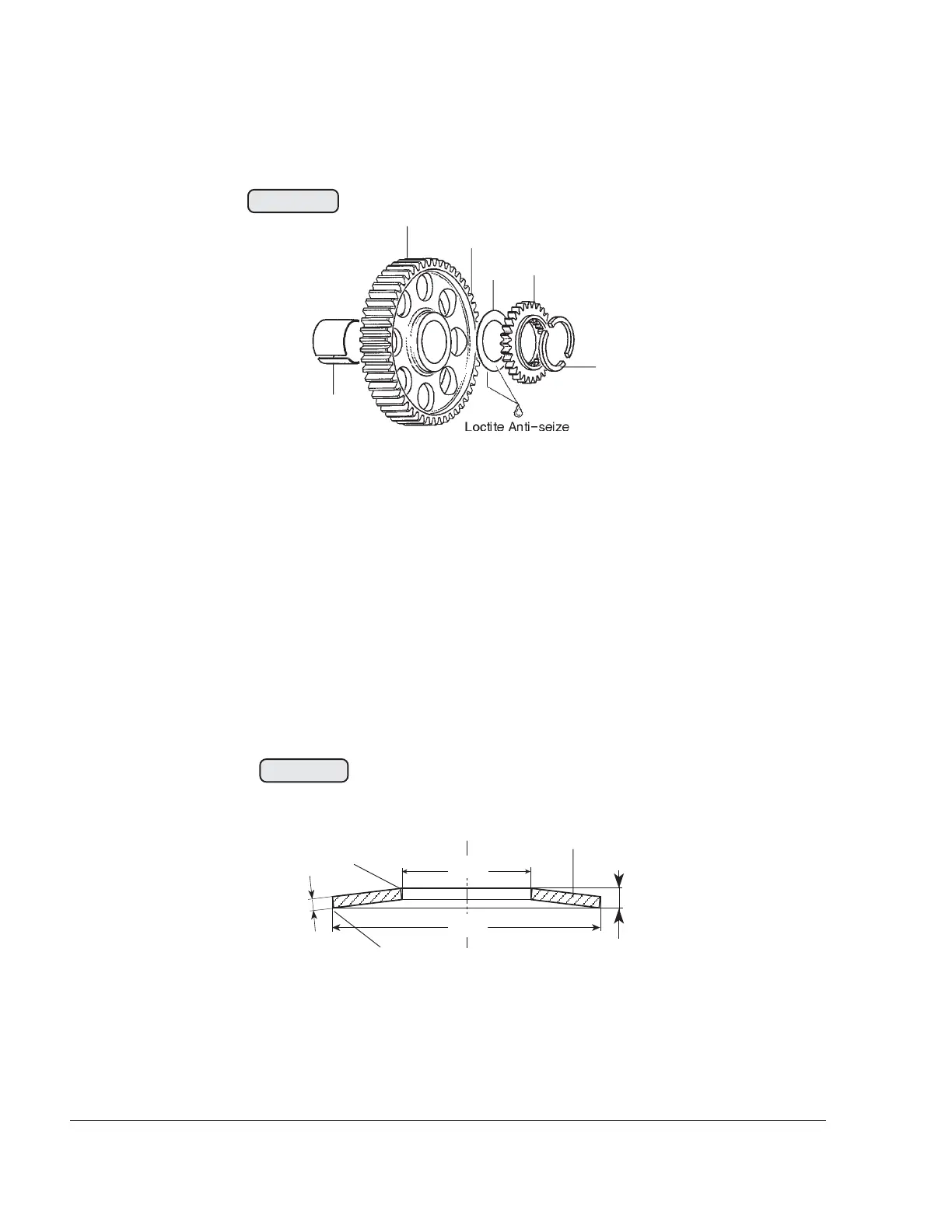

— Carry out a visual inspection of the ring halves (17) and replace if
necessary.
—If there is visible wear to the disc springs (18) in the contact area
(19), they must be replaced. Check dimension (GB13) of the
uncompressed disc spring.
See 72-00-00 sec. 4.
15
00269
Fig. 72-41
Fig. 72-42
3
41
ø
80
ø
Maß dim.
00271
GB13
16
18
19
14
13
17
19
15
11

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
