Rotax 914 series Maintenance Manual

BRP-Rotax
Maintenance Manual
Effectivity 912/914 Series
Edition 1 / Rev. 0
72-00-00
page 61
May 01/2007
d02622
CH09
2
1
3.11.2) Reworking of the sealing surface to the exhaust manifold

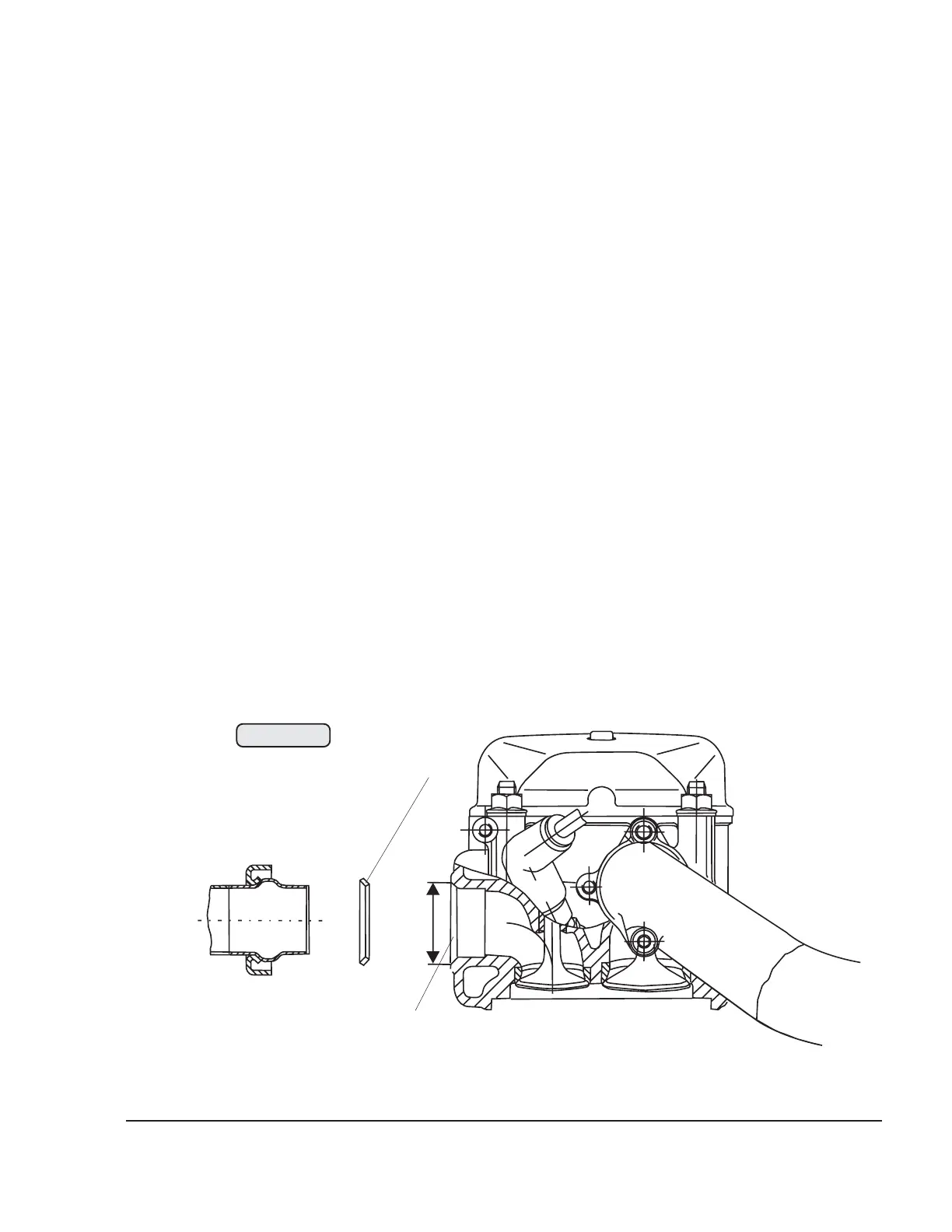

See Fig. 72-63.
Reworking is permissible if there is a leak at the sealing surface (1) to
the exhaust manifold.
The diameter of the sealing surface must not be increased to more than
dimension CH09. See 72-00-00 sec. 4.
The material removed during reworking must be compensated for by
assembling a copper sealing ring (2), part no. 931920. The sealing ring
is available as a spare part.
■ CAUTION: Ensure that the reworked sealing surface is free of
tool chatter marks.
Reworking must be carried out with a suitable countersink until the
sealing surface is clean.
■ CAUTION: It must be ensured that the lock nut can be screwed
onto the stud far enough to allow the lock nut to
function correctly.
06746
Fig. 72-63

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
