Rotax 914 series Maintenance Manual

Effectivity 914 Series
Edition 1 / Rev. 0
page 43
May 01/2007
d02623
73-00-00
BRP-Rotax
Maintenance Manual
3.4.5) Fuel lines (on 914 Series)
See Figs. 73-37 and 73-38.
Each fuel line (1) is supported by a cable clamp (2) on the carburetors.
The clamps are attached with allen screws M5x12 (3) and lock nuts (4).
Unscrew the banjo bolts (5) on the fuel pressure regulator (7) and the
collar nut (6).
Carry out a visual inspection for damage or wear, paying particular
attention to the formation of any cracks in the area of the connections.
■ CAUTION : When removing fuel lines, support them adequately to
avoid strain or additional load.
Check lines for free passage using compressed air and inspect them
for scuffing marks.
▲ WARNING: Replace damaged fuel lines!

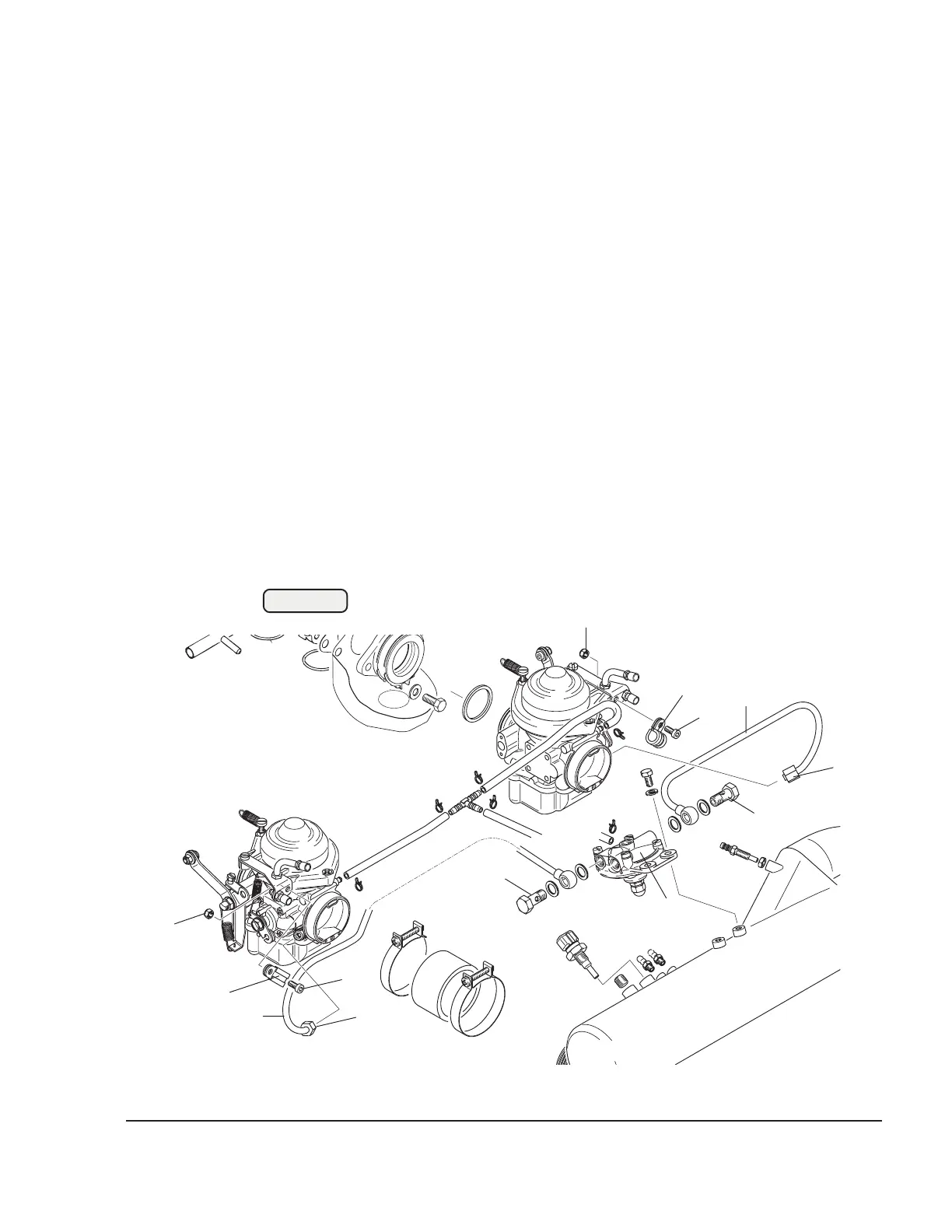

Fig. 73-37
00031
2
1
7
3
1
4
2
3
5
4
2
6
6
5

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
